Monitor 3-phase networks from 200 to 500 V AC with the Eaton EMR6-AW500-D-1. This self-supplied phase monitor detects phase sequence, phase failure, overvoltage, undervoltage, and asymmetry, with adjustable response and switch-on delays up to 30 seconds.

Overview

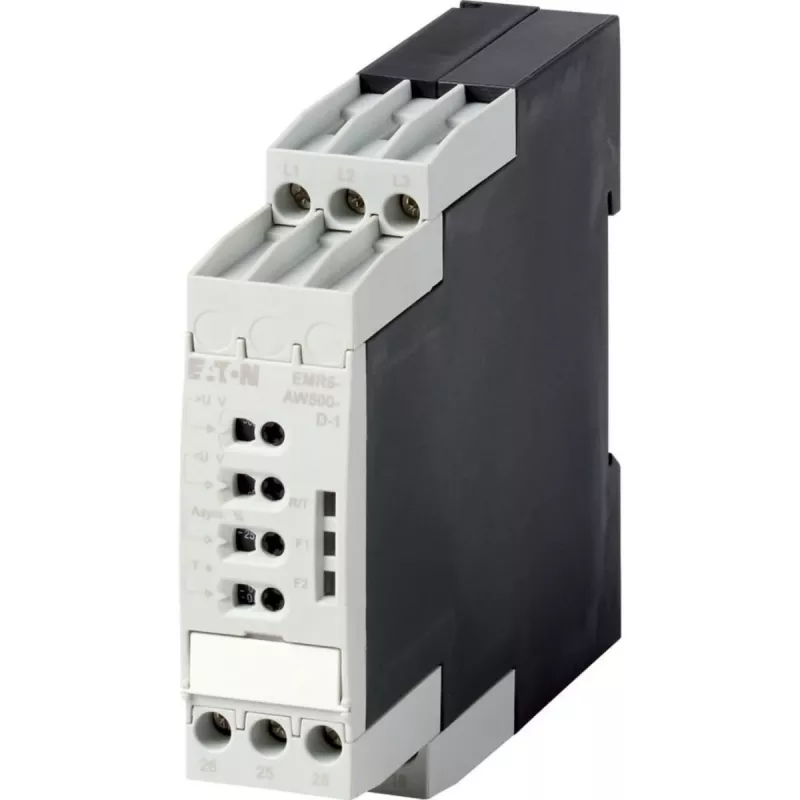

The EMR6-AW500-D-1 is a compact monitoring relay for three-phase systems. It operates across a wide voltage range (3x 200–500 V AC) at 50/60 Hz, powered directly from the measured voltage—no auxiliary supply needed. Two change-over contacts provide flexible output switching.

What stands out

• Adjustable overvoltage, undervoltage, and asymmetry thresholds
• Separate response delay (t1) and switch-on delay (t2) from 0.1 to 30 s
• LED indicators for status, relay state, and error conditions
• DIN rail mounting, 22.5 mm width (1 module)
• Operating temperature from -25 to +60 °C

Technical details

• Nominal voltage: 3x 400/230 V AC, 3x 500 V AC
• Measuring range (L-L): 3x 200–500 V AC
• Frequency: 50/60 Hz
• Output: 2 change-over contacts (2 CO)
• Contact rating: 5 A at 250 V AC (AC-15), 3 A at 24 V DC (DC-13)
• Supply: self-supplied from measuring voltage
• Mounting: DIN rail
• Width: 22.5 mm
• Terminal type: screw terminals
• Protection degree: IP40 housing, IP20 terminals
• Rated impulse withstand voltage: 4 kV

Our verdict

A reliable and versatile phase monitoring relay for industrial applications, offering precise adjustment and robust performance in a compact DIN-rail package.
