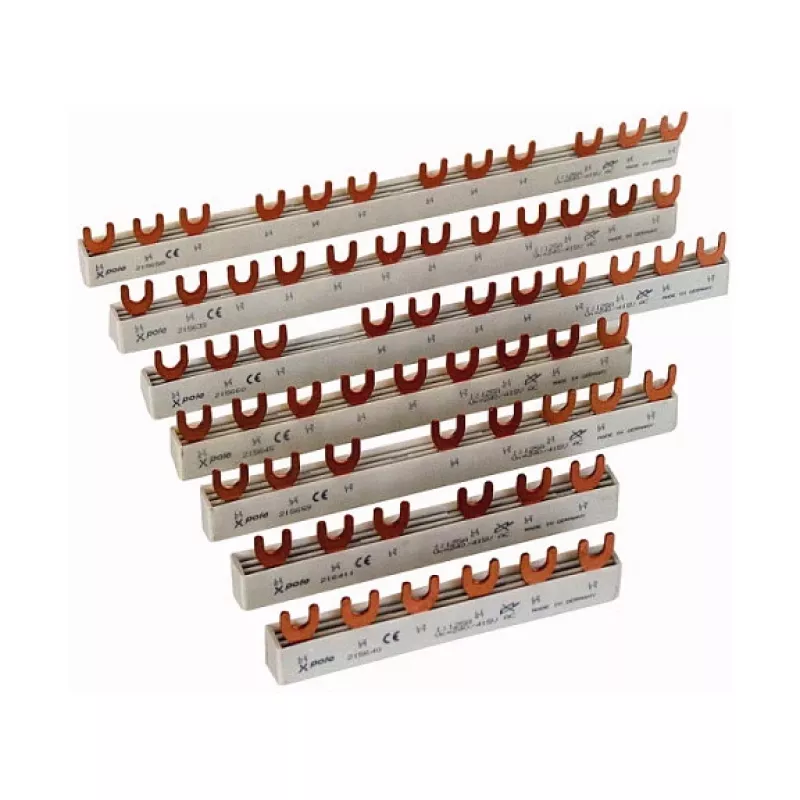

Eaton EVG-3PHAS/6MODUL 215640 Barramento trifásico 10 mm² forma de garfo 6TE

This Eaton EVG-3PHAS/6MODUL phase busbar (model 215640) is a high-integrity 3-phase distribution accessory for modular electrical installations. It features a 10 mm² copper conductor with fork-type connections, designed to supply up to six DIN rail mounted devices. Rated at 63 A and 400 V, it meets IEC/EN 60947-1 and IEC/EN 61439-1 standards, making it a trusted choice for professional switchgear.

Highlights

• 3-phase phase busbar for modular devices
• 10 mm² copper conductor for low-loss current distribution
• Fork-type connections for secure and simple wiring
• 6 module positions (6TE) with 18 mm pitch
• Rated current 63 A, rated operational voltage 400 V AC
• Rated insulation voltage 500 V, impulse withstand 4 kV
• Self-extinguishing thermoplastic insulation, IP20 terminal protection
• DIN rail mounting, compact 108 mm length

In daily use

This busbar is an ideal power distribution backbone for control panels, distribution boards, and sub-distribution units. The fork-type terminals allow quick and reliable connection of up to six outgoing circuits, while the 18 mm module spacing aligns perfectly with standard 18 mm wide modular devices. Its compact design and robust insulation simplify installation in confined enclosures, and the operating temperature range of -25 to +70 °C ensures dependable performance in demanding environments.

Full specifications

• Product type: 3-phase phase busbar
• Conductor cross-section: 10 mm²
• Connection type: fork-type
• Number of modules: 6 TE
• Rated current (In): 63 A
• Rated operational voltage (Ue): 400 V AC
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Conductor material: copper
• Insulation material: self-extinguishing thermoplastic
• Length: 108 mm
• Module pitch: 18 mm
• Mounting: DIN rail
• Outgoing connections: 6
• Protection degree: IP20 (terminals)
• Operating temperature: -25 to +70 °C
• Standards: IEC/EN 60947-1, IEC/EN 61439-1

Final note

This Eaton busbar is engineered for reliability and simplicity, providing a clean, flexible feed for modular DIN rail components. Upgrade your distribution panel with the trusted performance of Eaton's EVG series.
