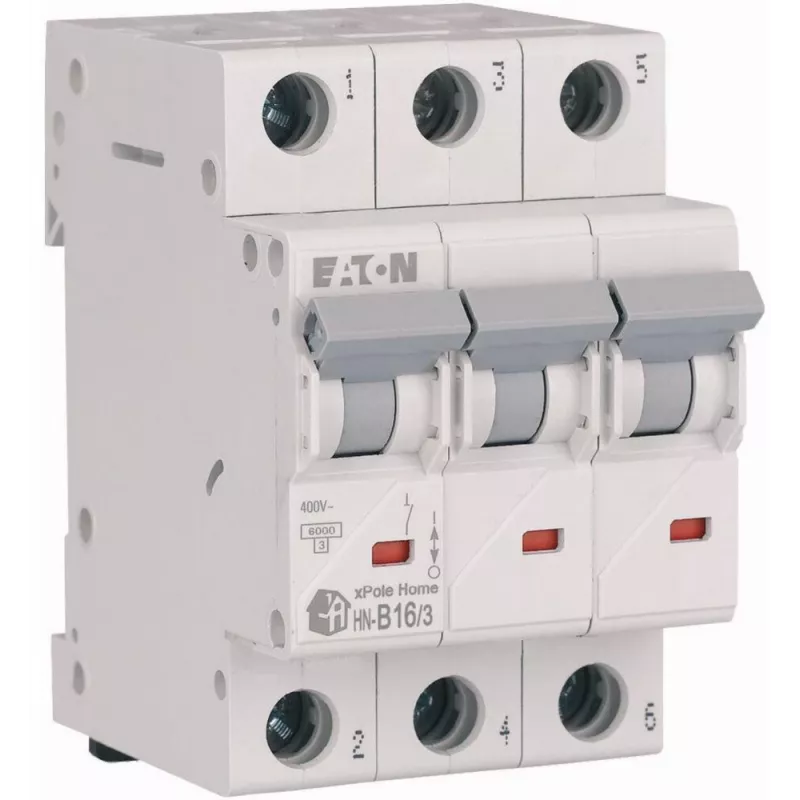

EATON HN-B16/3 disjuntor 16A 3 polos tipo B 6kA

The EATON HN-B16/3 is a high-quality miniature circuit breaker (MCB) designed for overcurrent and short-circuit protection in electrical installations. With a rated current of 16 A and 3 poles, this Type B MCB ensures reliable protection for residential and commercial applications. Its compact 3-module design (52.5 mm) fits standard DIN rail mountings, making it easy to integrate into distribution boards.

Advantages

This MCB offers robust protection with a breaking capacity of 6 kA according to EN 60898-1, ensuring safety under fault conditions. The red/green contact position indicator provides clear visual status, simplifying maintenance. With high electrical and mechanical endurance (over 10,000 and 20,000 operations respectively), it delivers long-lasting performance.

Suitable for

• Overcurrent and short-circuit protection in residential and commercial electrical systems
• DIN rail mounted distribution boards
• Applications requiring Type B tripping characteristic (for resistive or slightly inductive loads)

Key specifications

• Rated Current: 16 A
• Number of Poles: 3-Pole
• Tripping Characteristic: Type B
• Short-circuit Breaking Capacity: 6 kA (EN 60898-1)
• Rated Voltage: 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 3 Modules (52.5 mm)
• Degree of Protection: IP20 (Terminals)
• Terminal Capacity: 1-25 mm² (solid/stranded)
• Operating Temperature: -25 to +50 °C
• Standards: EN 60898-1
• Energy Limiting Class: 3
• Electrical Endurance: >10,000 operations
• Mechanical Endurance: >20,000 operations
• Connection Type: Screw Terminals
• Installation Depth: 70 mm

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and that the system's short-circuit capacity does not exceed 6 kA. Regular testing of the contact position indicator is recommended.
