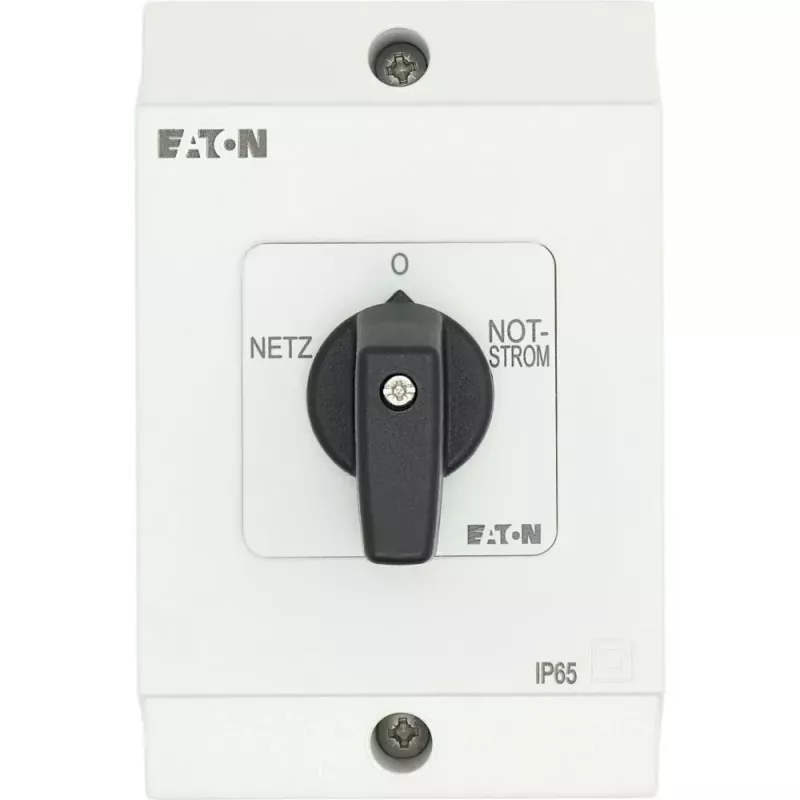

Eaton Interruptor de comutação 8 contactos, 20A T0-4-8902/I1 (218985)

Rated at 20 A and 690 V AC, this 4-pole changeover switch handles demanding switching tasks with a 1-0-2 function and 90° switching angle.

Overview

The Eaton T0-4-8902/I1 is a flush-mounting changeover switch with 8 contacts, designed for front panel installation. It provides three switching positions (1-0-2) and is built for reliable manual control in industrial applications.

What stands out

• 4-pole, 20 A rated uninterrupted current
• 690 V AC rated operational voltage
• IP65 front protection, IP20 rear
• Compact 48 x 48 mm front plate
• Screw terminals for secure wiring

Technical details

• Switching function: 1-0-2 (changeover)
• Number of switching positions: 3
• Switching angle: 90°
• Rated impulse withstand voltage: 6 kV
• Rated short-circuit making capacity: 300 A
• Rated conditional short-circuit current: 1 kA
• Mechanical lifespan: 0.5 x 10^6 operations
• Operating temperature range: -25°C to +50°C

Our verdict

A robust changeover switch for industrial control panels, offering high electrical ratings and a compact footprint.
