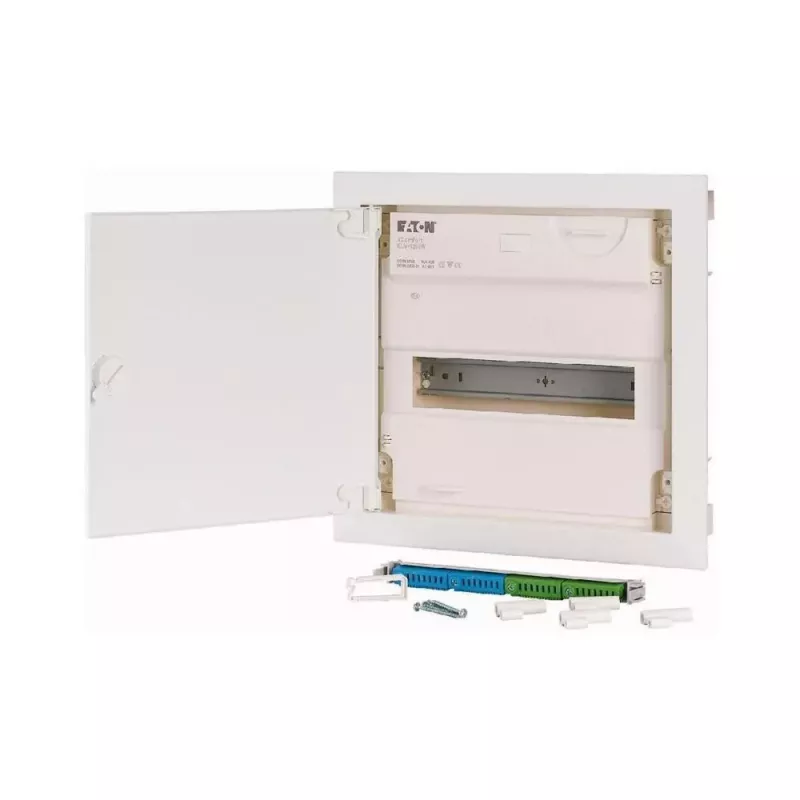

Eaton KLV-12HWP-F quadro de distribuição pequeno embutido, 1 fila, 12 módulos, branco 178806

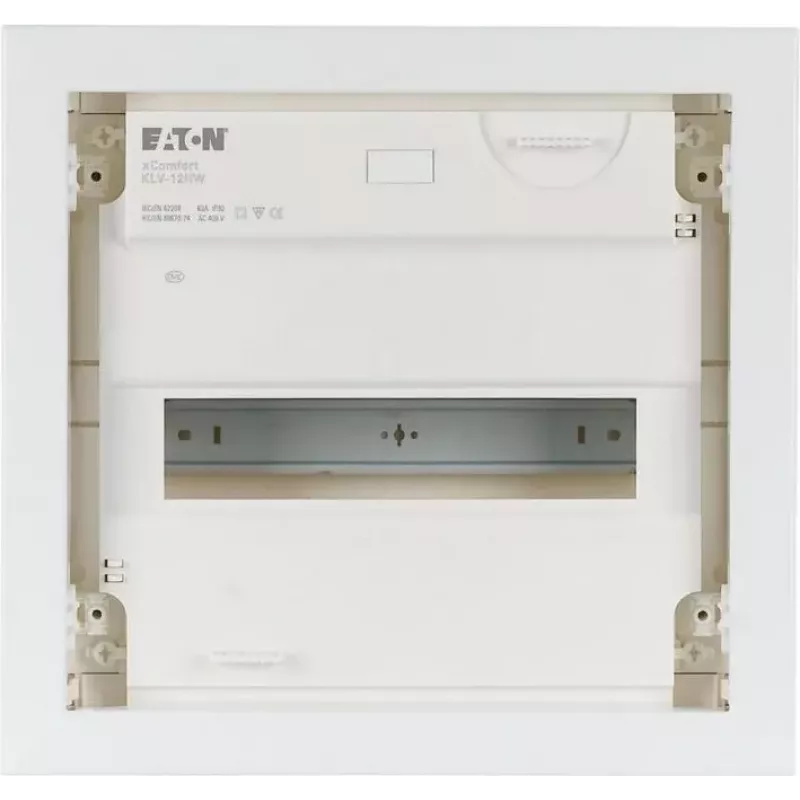

Managing electrical circuits in a building requires a safe, organized enclosure that protects breakers and wiring while blending into the wall. The Eaton KLV-12HWP-F is a flush-mounted small distribution board designed to house up to 12 modular devices in a single row, keeping installations tidy and accessible.

Who is it for

Electricians and installers working on residential or light commercial projects who need a reliable, plastic enclosure that fits into standard wall cavities and offers a clean white finish.

Main features

• Flush-mounted design for seamless integration into walls
• One row with 12 module units (TE) for circuit breakers and other DIN rail devices
• Opaque white door made of plastic, RAL 9016 colour
• Enclosure material: polystyrene plastic
• Rated operational voltage: 400 V AC
• Rated current: 63 A
• Protection class: IP30

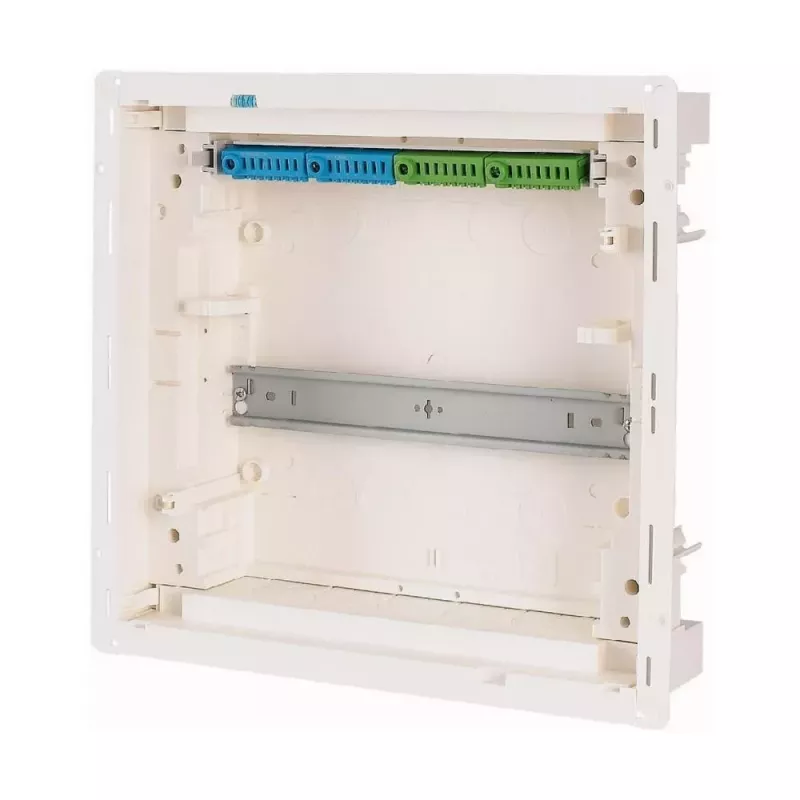

• Includes N and PE terminal blocks
• Glow wire test: 850 °C
• External dimensions: 280 mm height x 300 mm width x 96 mm depth
• Installation depth: 72 mm

Specifications

• Product type: Small distribution board
• Mounting type: Flush-mounted
• Number of rows: 1
• Number of modules: 12
• Door type: Opaque, white
• Door material: Plastic
• Enclosure material: Plastic (polystyrene)
• Colour: White (RAL 9016)
• Protection class: IP30
• Rated operational voltage: 400 V AC
• Rated current: 63 A
• Glow wire test: 850 °C
• External height: 280 mm
• External width: 300 mm
• External depth: 96 mm
• Installation depth: 72 mm
• Terminal blocks included: N and PE
• Operating temperature range: -5 °C to +40 °C

Tips

Ensure the wall cavity is deep enough for the 72 mm installation depth and that the surrounding surface is level for a flush finish. Use appropriate cable glands to maintain the IP30 protection.
