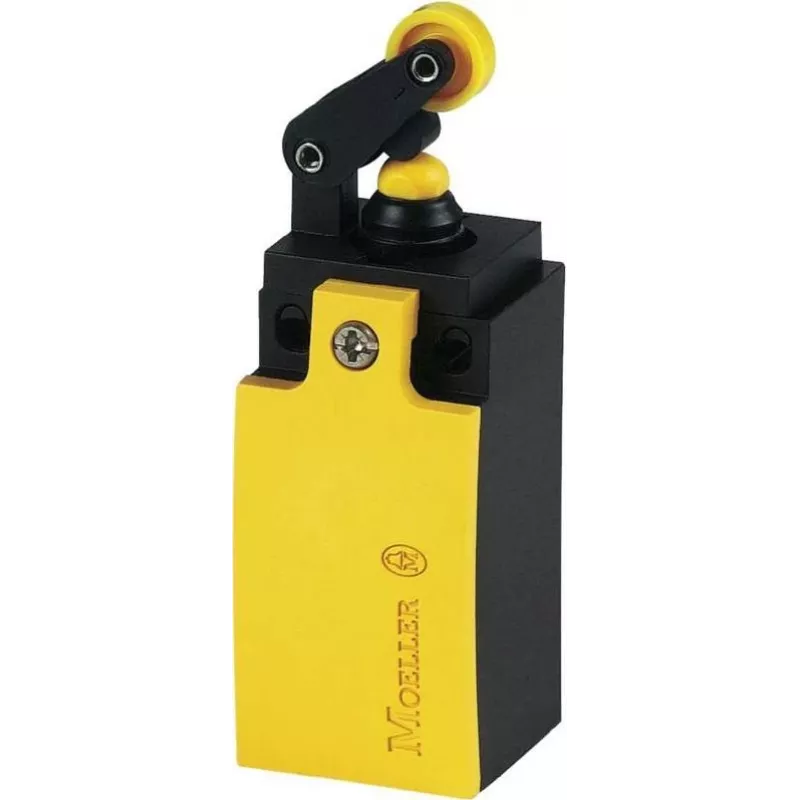

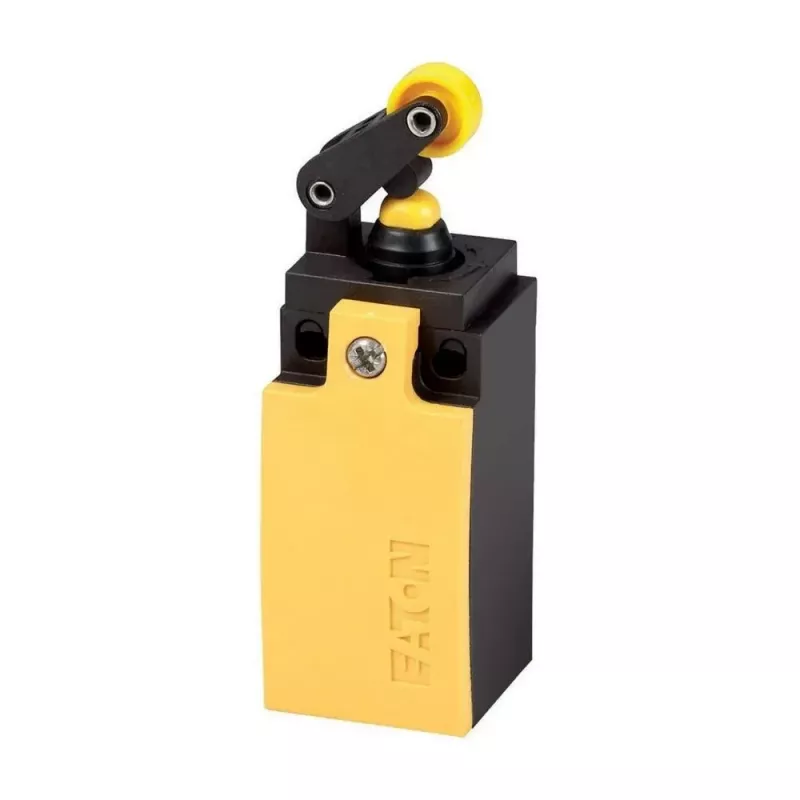

Eaton LS-S02/L Interruptor de fim de curso, alavanca de rolete, 400 V AC, 4 A, IP67 106781

Limit switch with roller lever actuator, momentary operation, and IP67 protection for reliable position sensing in industrial environments. Rated for 400 V AC and 4 A, it provides one normally open and one normally closed contact.

Advantages

Robust thermoplastic housing with IP67 sealing ensures dependable performance in dusty or wet conditions. The roller lever actuator suits sliding or rotating machine parts, while the compact design simplifies integration.

Suitable for

• Machine tool position detection
• Conveyor end-of-travel sensing
• Automated assembly equipment
• Industrial safety circuits

Key specifications

• Series: LS-S
• Actuator: Roller lever
• Switching function: Momentary (spring return)
• Contacts: 1 NO + 1 NC
• Rated voltage: 400 V AC
• Rated current: 4 A
• Protection: IP67
• Housing: Thermoplastic
• Connection: Screw terminals
• Cable entry: M20 x 1.5
• Operating temperature: -25 to +70 °C
• Standards: IEC/EN 60947

Recommendations

Verify actuator travel and mounting orientation to ensure reliable switching. Use appropriate cable glands to maintain IP67 integrity.
