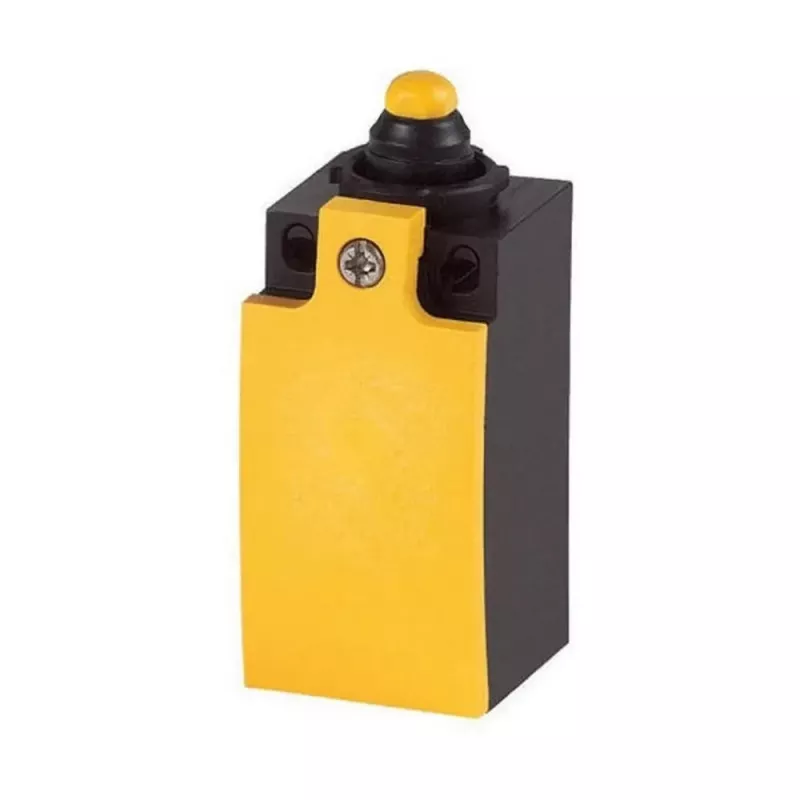

EATON LS-Titan interruptor de fim de curso LS-11, atuador de haste, 1NO+1NC, IP66/IP67, terminais de parafuso, M20

Limit switch from the LS-Titan series with plunger actuator and snap-action contacts, providing reliable position detection in industrial environments. The EATON LS-11 offers a compact thermoplastic housing and a versatile 1NO+1NC contact configuration, making it ideal for control circuits requiring both signal and power switching.

Advantages

High protection class IP66/IP67 ensures reliable operation even under harsh conditions such as dust, moisture, or temporary immersion. The snap-action switching principle delivers fast and precise contact changeover, reducing arcing and extending electrical life. A wide operating temperature range from -25°C to +70°C allows deployment in diverse climatic zones. Screw terminals simplify wiring, and the M20 x 1.5 cable entry accommodates standard industrial cable glands. The robust thermoplastic housing resists impact and chemicals, ensuring long-term durability.

Suitable for

• Machine tools and conveyor systems
• Packaging and automation equipment
• Elevator and escalator safety circuits
• Industrial doors and gates
• Material handling and robotics

Key specifications

• Actuator type: Plunger
• Contact configuration: 1 NO + 1 NC (snap-action)
• Rated operational current: 6 A at 230 V AC (AC-15)
• Rated operational voltage: 250 V AC / 250 V DC
• Degree of protection: IP66, IP67
• Connection: Screw terminals, cable entry M20 x 1.5
• Housing material: Thermoplastic
• Operating temperature: -25 °C to +70 °C
• Mechanical lifespan: 10 million operations
• Standards: IEC/EN 60947-5-1

Recommendations

For optimal performance, pair with EATON cable glands and mounting accessories. Regular inspection of actuator and contacts is advised in high-cycle applications.
