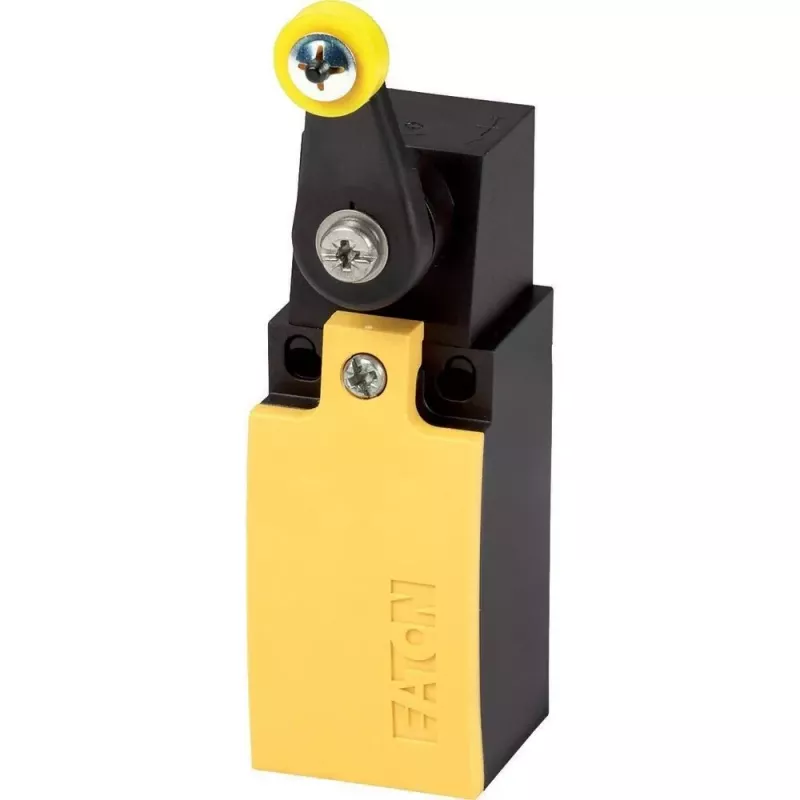

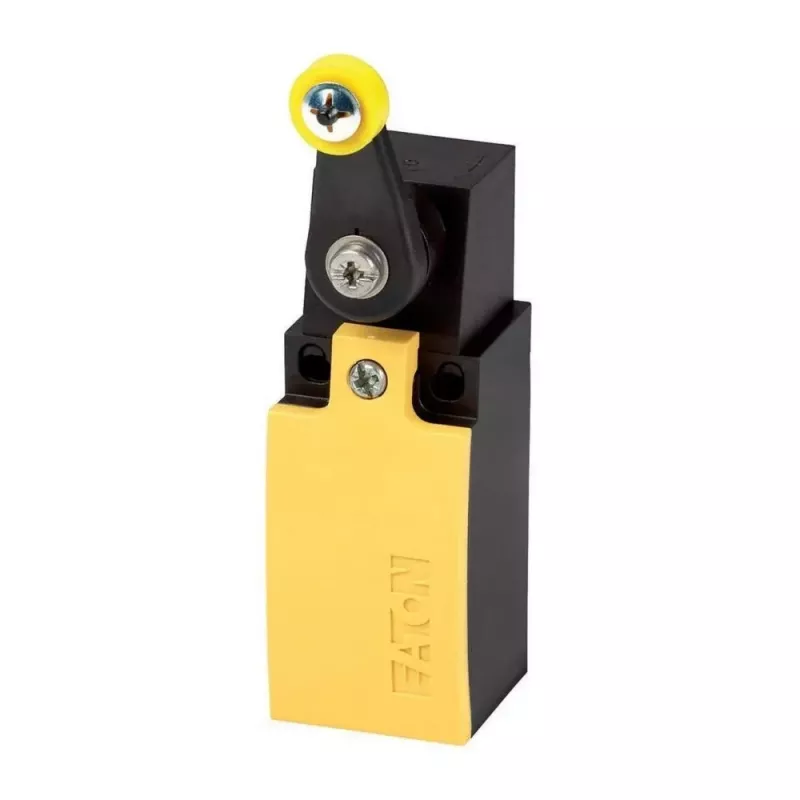

Eaton LS-Titan Interruptor de fim de curso LS-S11/RL com alavanca de rolete ajustável, 400 V AC, 4 A, 1 NO + 1 NC, IP67 106789

The Eaton LS-S11/RL stands out with its robust die-cast aluminum housing and IP67 protection, making it suitable for demanding industrial environments where dust and moisture are present. Its adjustable roller lever actuator provides flexibility in detecting mechanical movements, while the snap-action switching principle ensures reliable and quick contact changes.

Highlights

• Adjustable roller lever actuator for versatile mounting and actuation
• IP67 rated housing protects against dust and temporary immersion
• Die-cast aluminum body offers durability and mechanical strength
• 1 NO + 1 NC contact configuration for flexible circuit integration
• Rated for 400 V AC and 4 A, suitable for industrial control circuits

In daily use

This limit switch is ideal for position sensing on machines, conveyor systems, and automated equipment. The roller lever can be adjusted to suit different actuation angles, and the screw terminals allow for secure wiring. With a mechanical life of over 10 million operations, it provides long-term reliability in continuous duty applications.

Full specifications

• Product Type: Limit Switch
• Series: LS-Titan
• Actuator Type: Adjustable Roller Lever
• Switching Principle: Momentary (Snap-action)
• Contact Configuration: 1 NO + 1 NC
• Rated Operational Voltage (AC): 400 V AC
• Rated Operational Current (AC-15): 4 A at 230 V AC
• Rated Operational Voltage (DC): 250 V DC
• Rated Operational Current (DC-13): 0.5 A at 24 V DC
• Degree of Protection: IP67
• Housing Material: Die-cast Metal (Aluminum)
• Connection Type: Screw Terminals
• Cable Entry: M20 x 1.5
• Operating Temperature Range: -25 to +70 °C
• Mechanical Life: > 10 million operations
• Electrical Life: > 1 million operations
• Standards/Approvals: IEC/EN 60947-5-1, UL, CSA
• Mounting Type: Base Mounting (4 screws)
• Roller Material: Plastic

Final note

The LS-S11/RL combines precision actuation with rugged construction, making it a dependable choice for industrial limit switching tasks.
