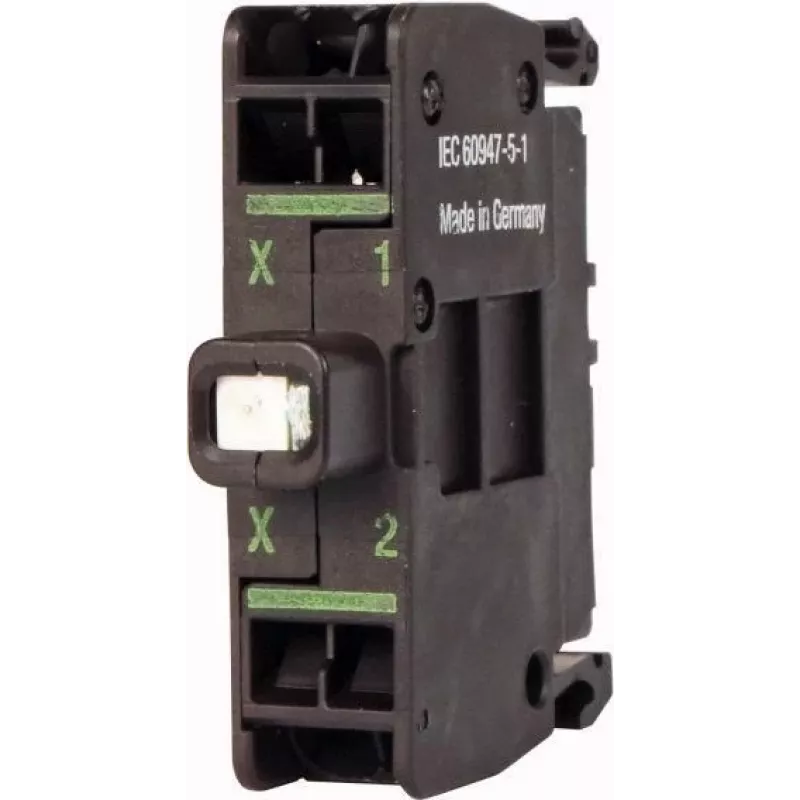

Eaton M22-CLEDC230-G Elemento LED, verde, 230 V AC/DC, 0,3 W, terminais de parafuso 216580

With a lifespan exceeding 100,000 hours and a wide operating temperature range from -25 to +70 °C, this LED element delivers dependable status indication for industrial control circuits. The Eaton M22-CLEDC230-G is a green LED light element designed for direct integration into Eaton M22 series control devices, operating on 230 V AC/DC with a minimal power consumption of just 0.3 W.

Overview

This LED element serves as a replacement or upgrade component for illuminated pushbuttons, indicator lights, and other M22 series devices. It features screw terminals for secure wiring and is rated for insulation voltage up to 250 V and impulse withstand voltage of 2.5 kV. The element is suitable for mounting in any position, offering flexibility in panel design.

What stands out

• Long lifespan: over 100,000 hours of operation
• Low power consumption: only 0.3 W
• Wide operating temperature range: -25 to +70 °C
• Compatible with Eaton M22 series control devices
• Screw terminals for reliable connections

Technical details

• Light colour: Green
• Supply voltage: 230 V AC/DC
• Current type: AC/DC
• Light source: LED
• Terminal type: Screw terminals
• Power consumption: 0.3 W
• Rated insulation voltage (Ui): 250 V
• Rated impulse withstand voltage (Uimp): 2.5 kV
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Protection degree (terminals): IP20
• Mounting position: Any

Our verdict

A reliable and energy-efficient LED element for Eaton M22 series devices, offering long service life and robust performance in industrial environments.
