Eaton M22-D-R-K10-BVP botão de pressão, vermelho, anel frontal em plástico, 1 NO 110935

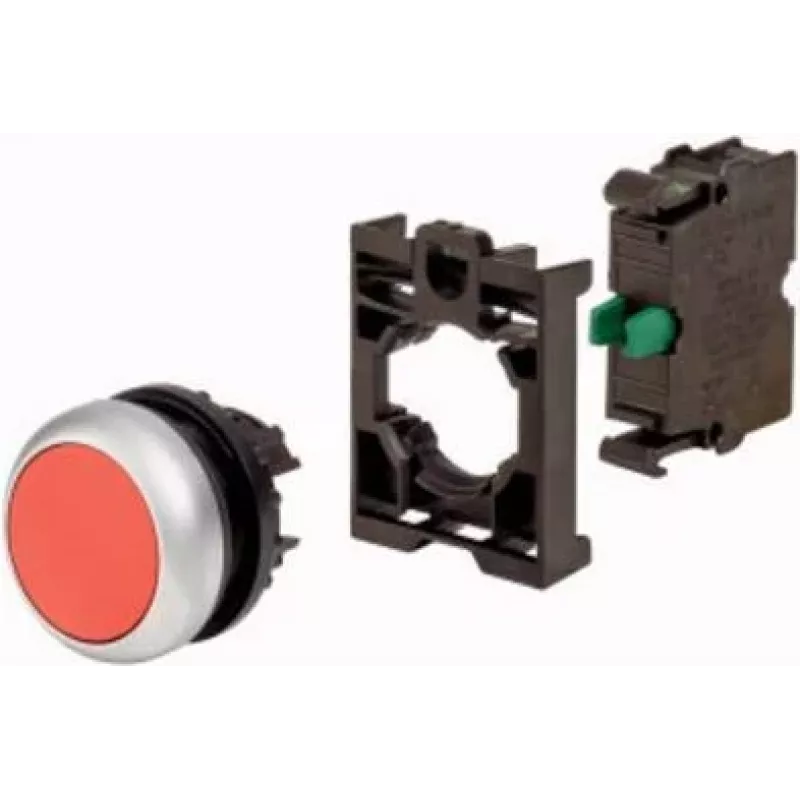

The Eaton M22-D-R-K10-BVP pushbutton stands out with its robust plastic front ring and bright red actuator, designed for reliable control in demanding industrial environments. Its momentary action and 22.5 mm mounting diameter make it a direct fit for standard panel cutouts, while the screw terminals simplify wiring.

Highlights

• Red momentary pushbutton with plastic front ring
• 1 normally open (NO) contact
• Front protection: IP66, IP67, IP69K
• Mechanical life over 5 million operations
• Operating temperature from -25 to +70 °C

In daily use

This pushbutton is suited for control panels, machinery, and automation systems where a clear, tactile signal is needed. The high front protection rating allows use in washdown and harsh environments, while the screw terminals accept solid or stranded conductors from 0.5 to 2.5 mm².

Full specifications

• Product type: Pushbutton
• Actuator type: Momentary
• Actuator colour: Red
• Bezel material: Plastic
• Mounting hole diameter: 22.5 mm
• Contact configuration: 1 NO
• Terminal type: Screw terminals
• Rated operational voltage: max. 500 V AC / 250 V DC
• Rated operational current (AC-15): 6 A @ 230 V
• Rated operational current (DC-13): 3 A @ 24 V
• Degree of protection (front): IP66, IP67, IP69K
• Degree of protection (rear): IP20
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical life: >5,000,000 operations
• Electrical life: >500,000 operations
• Connection capacity: 1 x (0.5 - 2.5 mm²), 2 x (0.5 - 1.0 mm²)

Final note

A durable and precise control component for professional applications, backed by Eaton's M22 series reliability.
