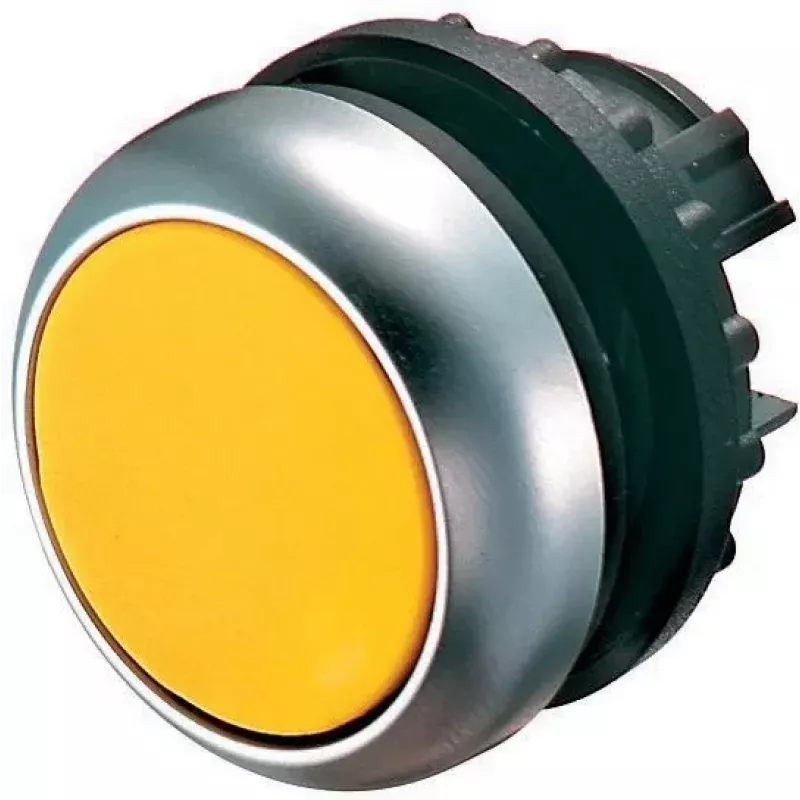

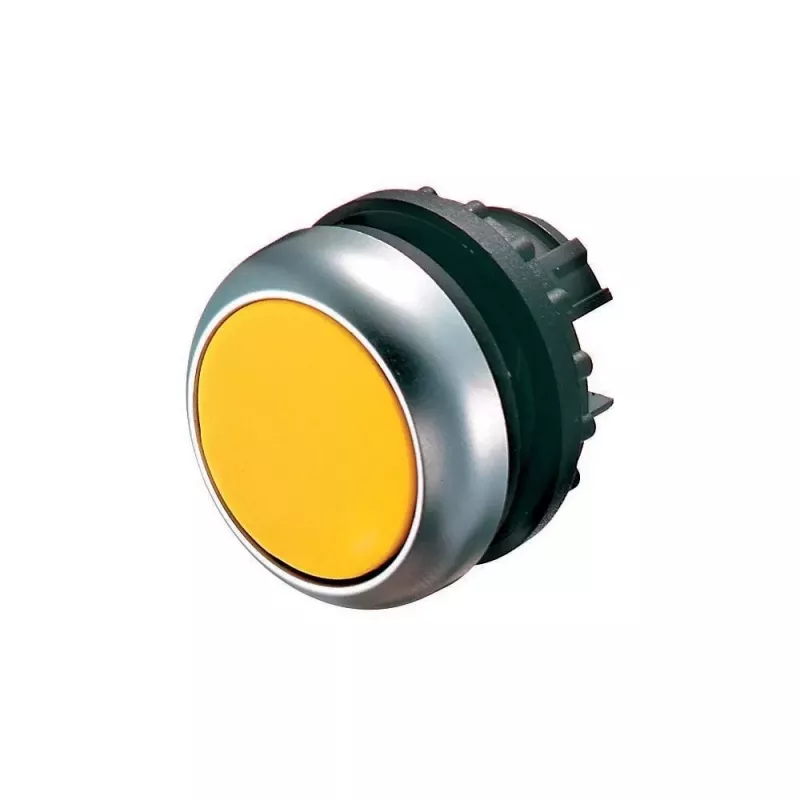

Eaton M22-DR-Y Atuador de botão de pressão plano amarelo com retenção

Flat pushbutton actuator from the Eaton M22 series, featuring a latching switching function and a yellow button. Designed for 22.3 mm mounting holes, it offers front-side IP67 protection and a round lens shape.

Advantages

Modular design allows combination with Eaton M22 contact blocks and holders. The latching function maintains the selected state without continuous pressure.

Suitable for

• Industrial control panels
• Machine interfaces
• Automation systems

Key specifications

• Actuator type: flat pushbutton
• Switching function: latching
• Button colour: yellow
• Number of actuators: 1
• Mounting hole diameter: 22.3 mm
• Front protection rating: IP67
• Lens shape: round
• Illumination: unilluminated
• Labeling: unlabeled (blank)

Recommendations

Use with Eaton M22 contact blocks for complete pushbutton functionality.
