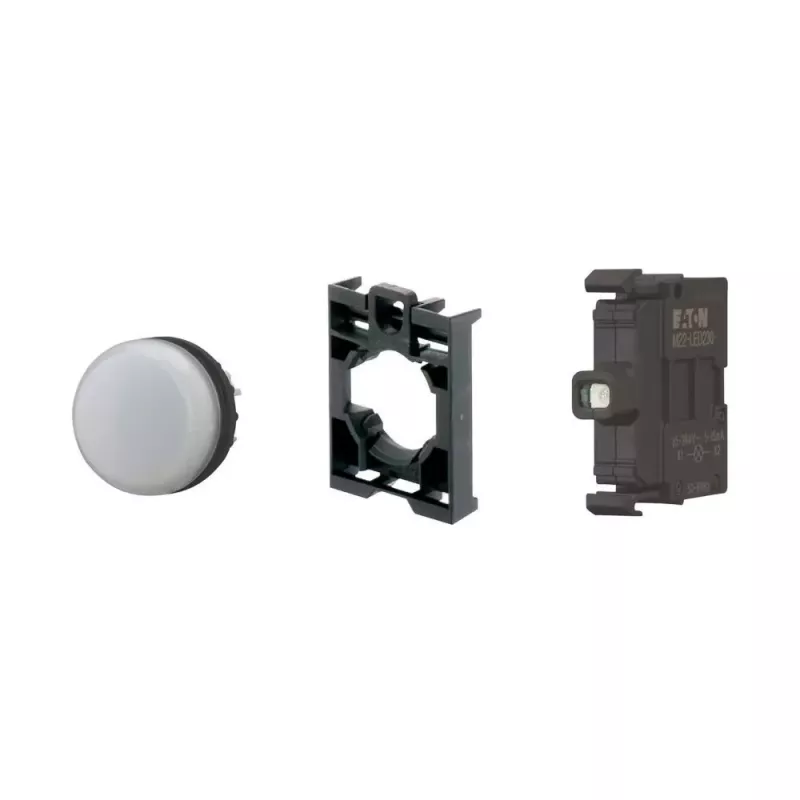

Eaton M22-L-W-LED-BVP Elemento LED para luz de sinalização, branco, 12-30 V AC/DC 110928

The Eaton M22-L-W-LED-BVP is a dedicated LED element that brings white illumination to M22 series indicator lights. Unlike generic LED bulbs, this unit is engineered specifically for the RMQ-Titan range, ensuring a secure mechanical fit and reliable electrical contact. Its wide 12-30 V AC/DC operating range means a single component can be used across many control circuits without the need for separate AC and DC versions.

Highlights

• White LED light source with a lifespan exceeding 100,000 hours
• Accepts both AC and DC supply from 12 to 30 V
• Low power consumption of less than 0.5 W
• Rear mounting for use with standard M22 holders
• Screw terminals accept conductors from 0.5 to 2.5 mm²

In daily use

Installing the M22-L-W-LED-BVP is straightforward: it is inserted from the rear of the M22 holder and secured without special tools. The screw terminals provide a vibration-resistant connection, and the IP20 rating on the terminal side is typical for panel-mounted components. The LED element operates reliably from -25 °C to +70 °C, making it suitable for industrial environments.

Full specifications

• Product type: LED element for indicator light
• Series: Eaton M22 (RMQ-Titan)
• Light colour: White
• Operating voltage: 12-30 V AC/DC
• Connection: Screw terminals, 1 x 0.5-2.5 mm² or 2 x 0.5-1.5 mm²
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 300 V
• Mounting: Rear mounting
• Protection rating (terminals): IP20
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Lifespan: >100,000 hours
• Power consumption: <0.5 W
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200

Final note

For a dependable white indicator in Eaton M22 control devices, the M22-L-W-LED-BVP offers long service life and flexible voltage compatibility.
