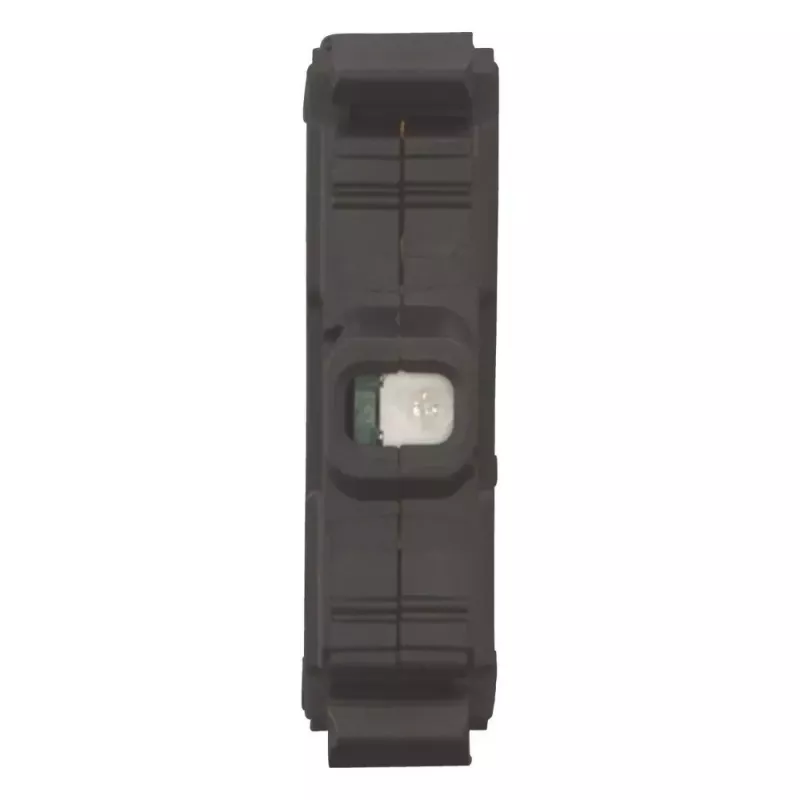

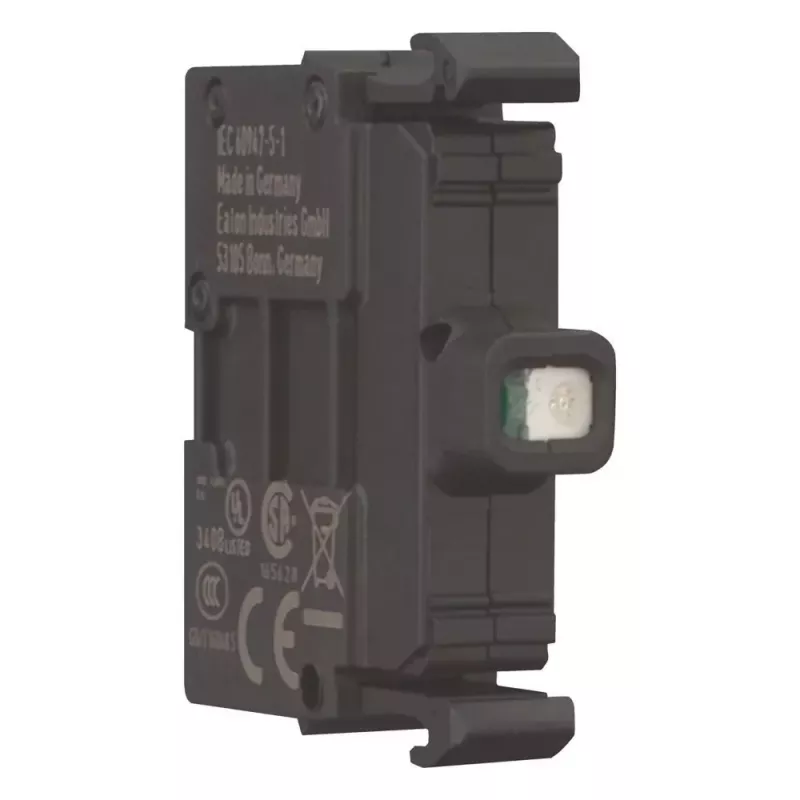

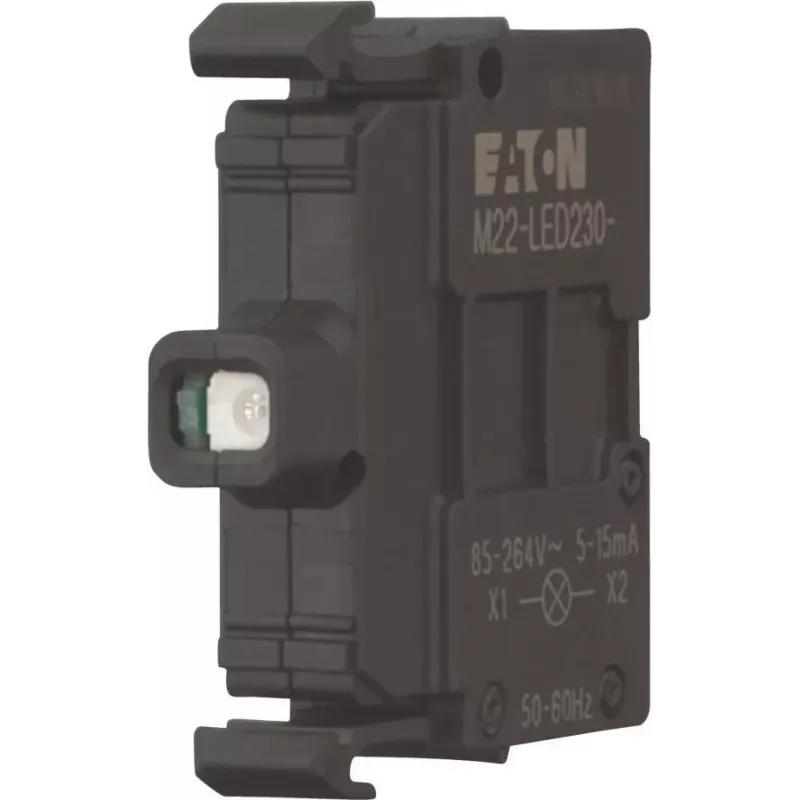

Eaton M22-LED230-B elemento LED azul 230V AC/DC 218059

LED element for Eaton M22 series control devices, providing reliable blue illumination at 230 V AC/DC with low power consumption and long lifespan.

Advantages

Energy-efficient operation at approximately 0.3 W, with LED lifespan exceeding 100,000 hours. Screw terminals accept conductors from 0.5 to 2.5 mm² (or two conductors up to 1.5 mm²), ensuring secure wiring. Front protection rating IP66 when mounted, suitable for demanding environments.

Suitable for

• Eaton M22 series pushbuttons
• Selector switches
• Indicator lights

Key specifications

• Light colour: Blue
• Supply voltage: 230 V AC/DC
• Current type: AC/DC
• Power consumption: 0.3 W
• Terminal type: Screw terminals
• Terminal capacity: 1 x (0.5 - 2.5) mm² / 2 x (0.5 - 1.5) mm²
• Lifespan (LED): >100,000 hours
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Degree of protection (front): IP66
• Degree of protection (rear): IP20
• Mounting diameter: 22.5 mm

Recommendations

For use with Eaton M22 series control devices in industrial control panels and machinery where blue status indication is required.
