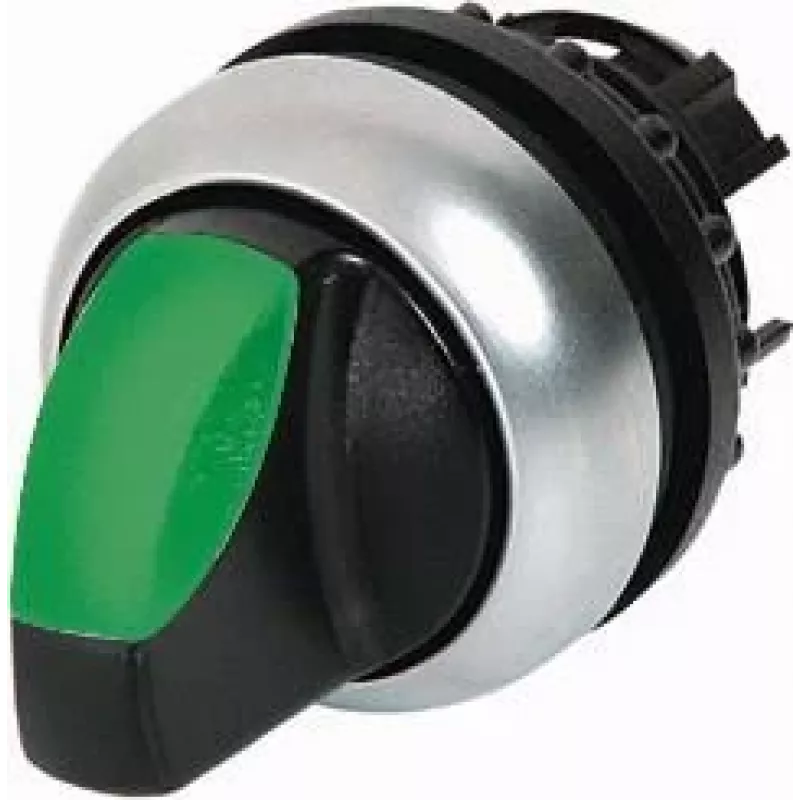

Eaton M22-WRLK3-G atuador de interruptor rotativo, 3 posições, com retenção, preto, aro titânio 216847

Three-position selector switch actuator with maintained operation and a black knob on a titanium-finished bezel. Part of the Eaton M22 modular series, it mounts in a 22.5 mm panel hole and accepts M22 contact blocks (sold separately).

Overview

The Eaton M22-WRLK3-G is a selector switch actuator designed for industrial control panels. It provides three maintained positions with a switching angle of 2 x 45°, allowing operators to select between three distinct circuit states. The actuator is non-illuminated and features a black knob with a titanium-colored bezel, suitable for standard 22.5 mm panel cutouts.

What stands out

• Three maintained positions for multi-state control
• Compatible with Eaton M22 contact blocks for flexible configuration
• Front protection rating IP66 for harsh environments
• Mechanical durability exceeding 1,000,000 operations
• Wide operating temperature range from -25 to +70 °C

Technical details

• Product type: Selector switch actuator
• Series: Eaton M22
• Number of positions: 3
• Operation type: Maintained (latching)
• Actuator type: Knob / lever
• Actuator color: Black
• Bezel color: Titanium
• Mounting hole diameter: 22.5 mm
• Switching angle: 2 x 45°
• Contact block compatibility: M22 series contact blocks (sold separately)
• Illumination: Non-illuminated
• Front protection rating: IP66
• Operating temperature range: -25 to +70 °C
• Mechanical durability: > 1,000,000 operations
• Panel thickness compatibility: 1-6 mm

Our verdict

A robust and versatile selector switch actuator for industrial applications, offering reliable three-position control with a durable design.
