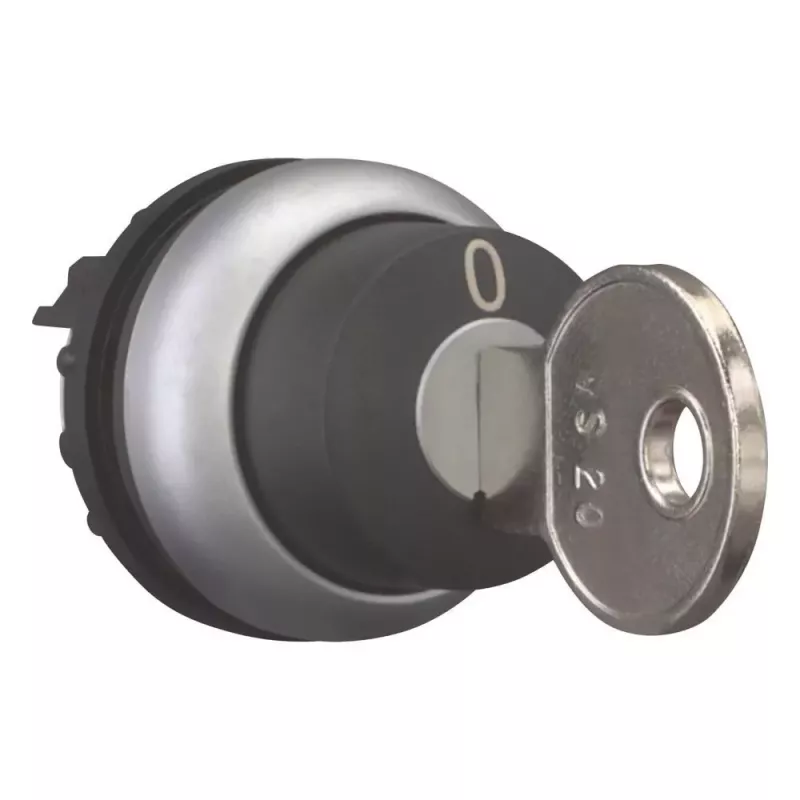

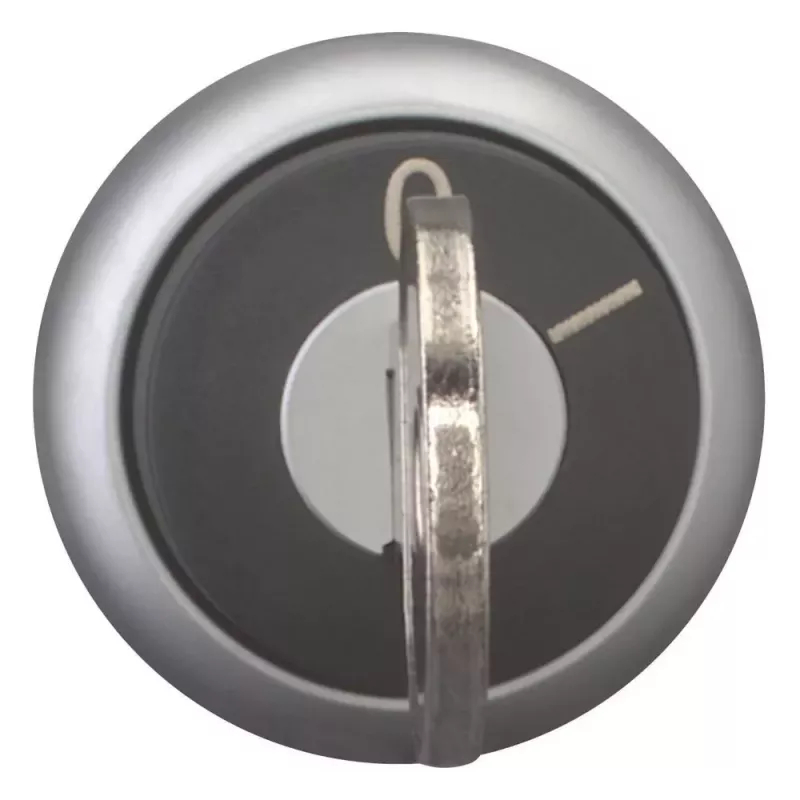

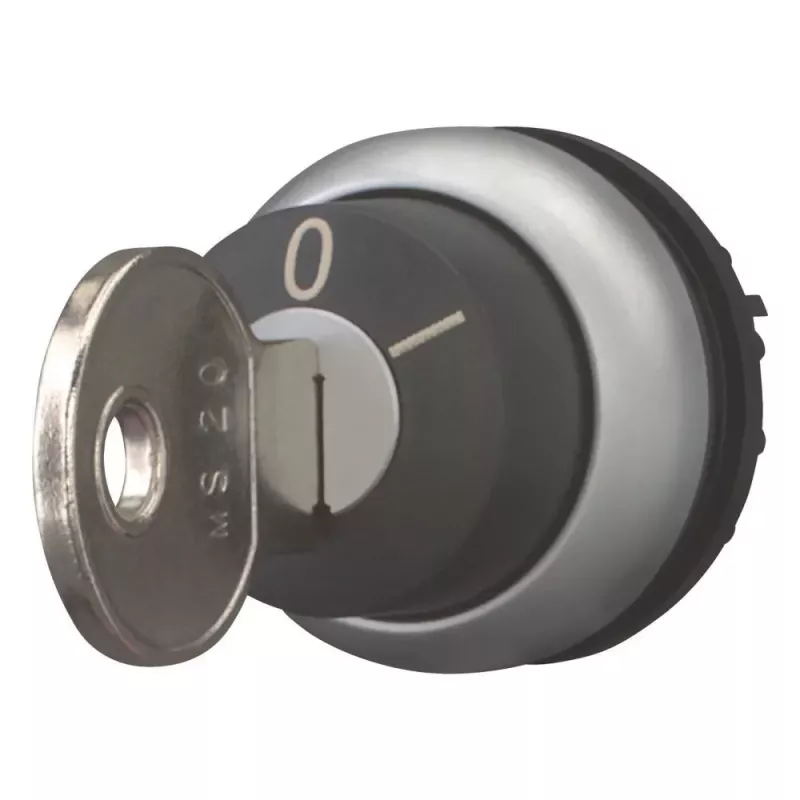

Eaton M22-WRS-MS20 Acionador de comutador rotativo com chave, 2 posições, retenção, chave MS20, anel frontal metálico titânio, preto 111779

Key-operated selector switch actuator from the Eaton M22 series, offering secure 2-position maintained operation with a robust metal front ring in titanium finish. The MS20 key system allows removal only in the 0 position, preventing unauthorized switching and ensuring process safety in industrial control panels.

Advantages

This actuator is engineered for demanding environments, featuring a front protection rating of IP66, IP67, and IP69K, making it resistant to dust, powerful water jets, and temporary immersion. The metal front ring provides durability against mechanical impact, while the black actuator body offers clear visual indication. With a mechanical life exceeding 100,000 operations, it delivers long-term reliability in frequent-use applications.

Suitable for

• Industrial control panels and machinery requiring key-restricted operation
• Access control and safety interlock circuits
• Applications needing a maintained (latching) 2-position selector with defined key removal position
• Harsh environments where high ingress protection is essential

Key specifications

• Product type: Key-operated selector switch actuator
• Series: Eaton M22
• Number of positions: 2
• Operation mode: Maintained (latching)
• Key removal position: 0 (off position)
• Key type: MS20 (Eaton specific)
• Mounting diameter: 22.5 mm
• Front ring material: Metal
• Front ring color: Titanium
• Actuator color: Black
• Protection rating (front): IP66, IP67, IP69K
• Ambient operating temperature: -25 to +70 °C
• Mechanical life: > 100,000 operations
• Switching angle: 90°
• Keys included: 2
• Compatibility: Eaton M22 series contact blocks and LED elements

Recommendations

For reliable key-operated control in industrial settings, pair this actuator with Eaton M22 contact blocks to build a complete switching solution. The included two keys provide redundancy for key management.
