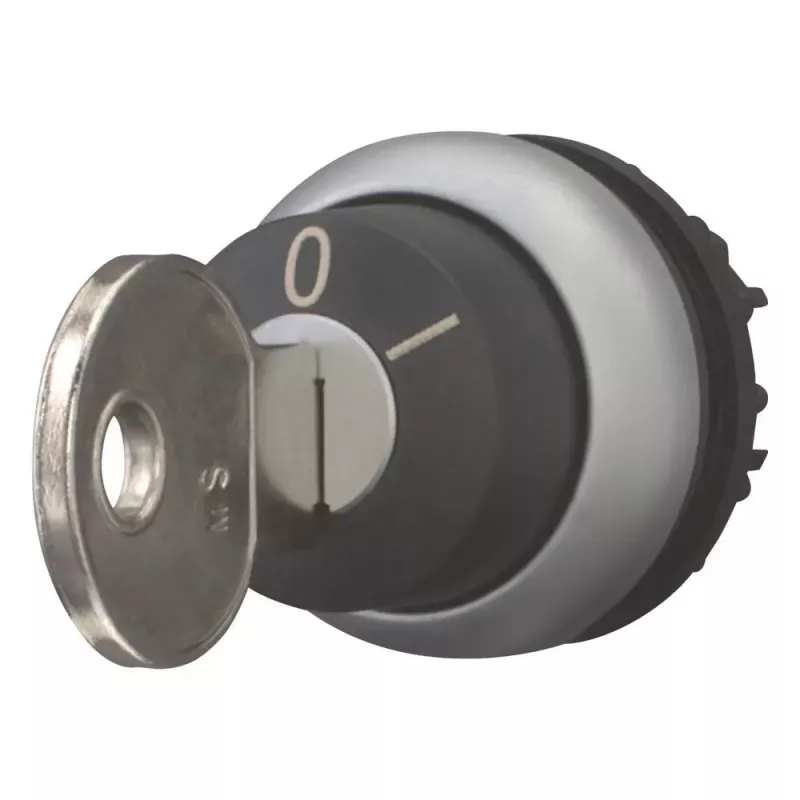

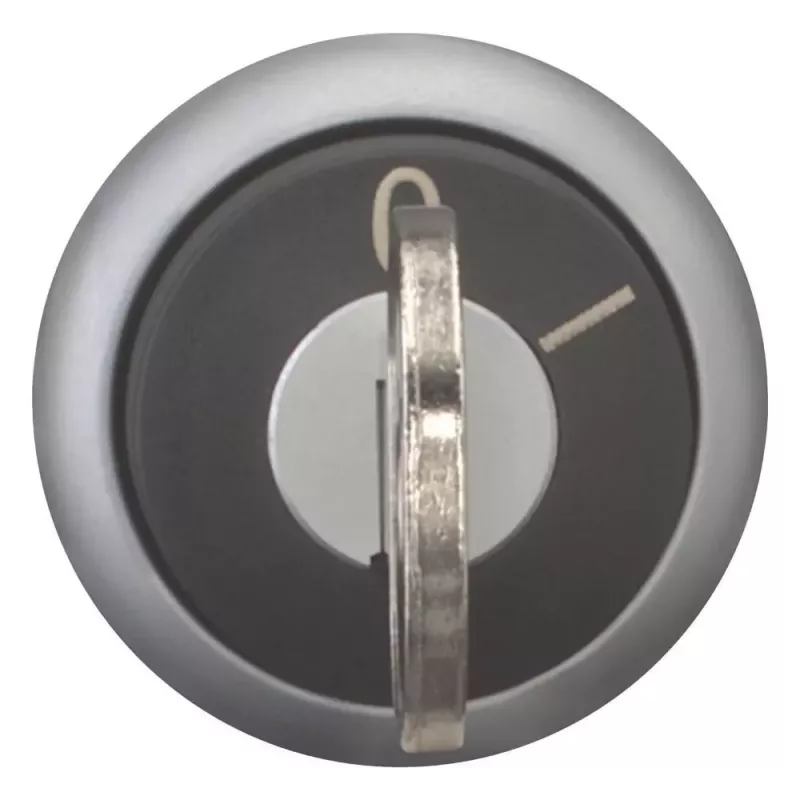

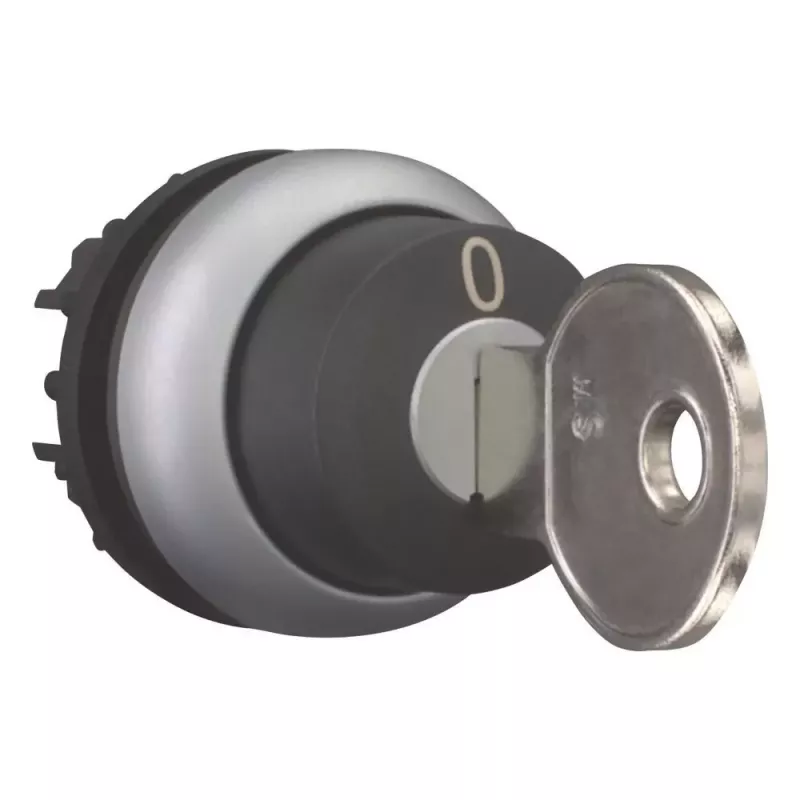

Eaton M22-WRS-MS5 comutador rotativo com chave, 3 posições, retorno por mola, preto/prateado 111785

Key-operated selector switch from the Eaton RMQ-Titan series, offering three positions with momentary left/right and maintained center. The MS5 key is removable only in the center position, providing secure control in industrial applications.

Advantages

Robust construction with IP66, IP67, and IP69K protection ratings ensures reliable operation in harsh environments. The spring-return mechanism from left and right positions to center enhances safety and control precision.

Suitable for

• Machine control panels requiring key-operated switching
• Industrial automation systems with restricted access
• Applications needing momentary action with center off

Key specifications

• Number of positions: 3
• Switching function: momentary left, maintained center, momentary right
• Key type: MS5
• Key removal position: center only
• Mounting diameter: 22.5 mm
• Switching angle: 2 x 45°
• Bezel material: plastic
• Actuator color: black bezel, silver key
• Operating temperature: -25 to +70 °C
• Mechanical life: >1,000,000 operations

Recommendations

For complete functionality, pair with Eaton M22 series contact blocks and light elements (sold separately).
