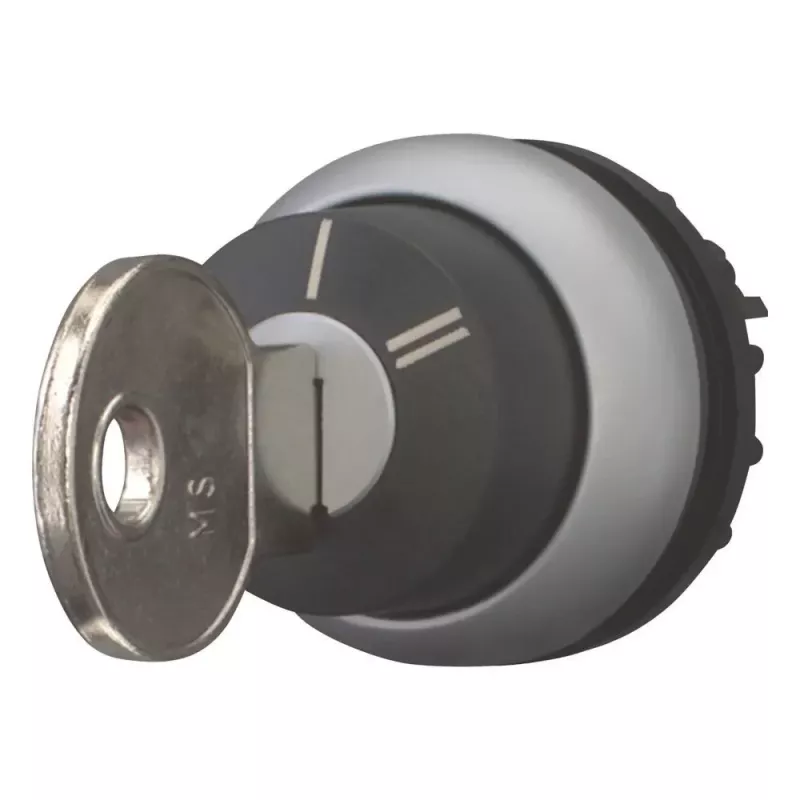

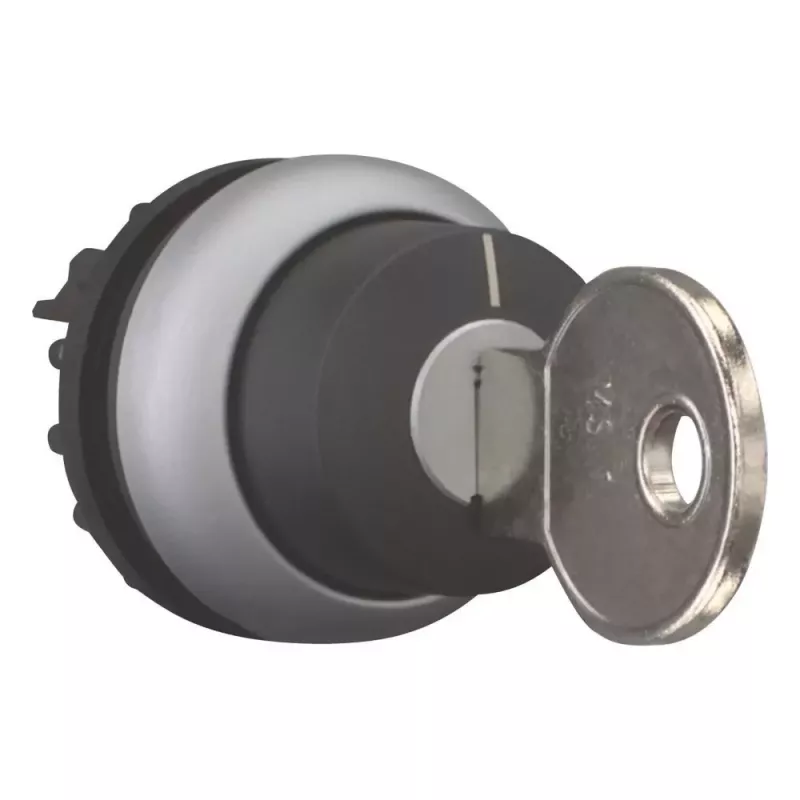

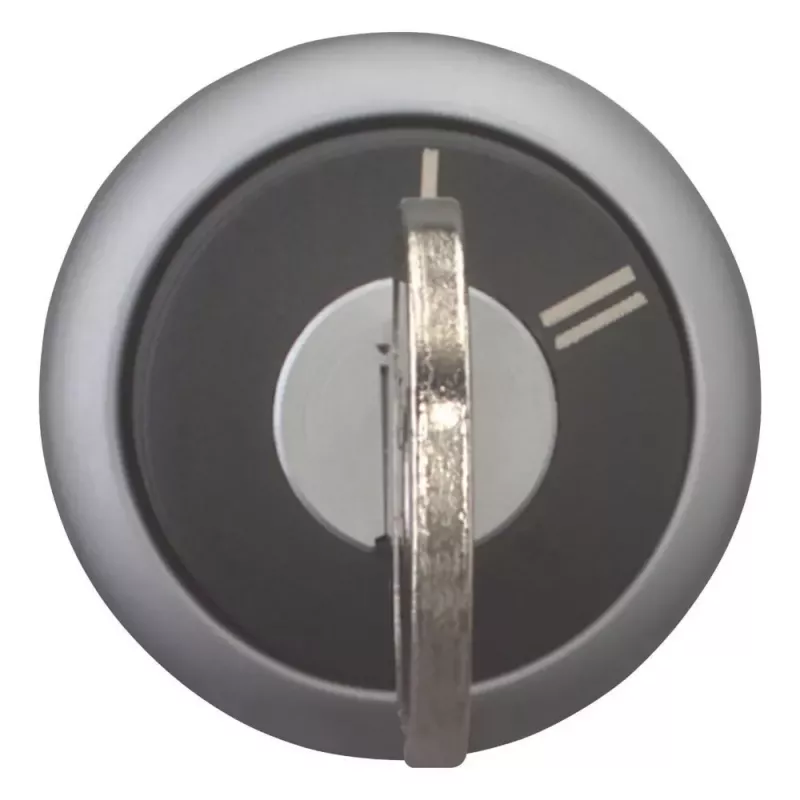

Eaton M22-WRS-X95 atuador de interruptor rotativo de chave, 3 posições, retenção, aro frontal de plástico preto, chave X95 228026

The Eaton M22-WRS-X95 key-operated selector switch actuator stands out with its X95 key profile, which is specific to Eaton and prevents unauthorized operation with standard keys. Its black plastic front ring matches the M22 series aesthetic while keeping weight low.

Highlights

• 3-position switching with 90° angle
• Maintained (latching) actuation
• Key removable in all positions
• Front ring made of black plastic
• Mounting diameter 22.5 mm
• Front protection IP66, IP67, IP69K
• Operating temperature -25 to +70 °C
• Mechanical lifespan > 0.1 million operations
• Compatible with Eaton M22 contact blocks and LED elements

In daily use

This actuator is the front-end component of a modular pushbutton system. Combine it with an M22 contact block (sold separately) to build a complete key switch. The maintained action means the switch stays in the selected position until the key is turned again, ideal for mode selection or access control. The key can be withdrawn in any position, allowing flexible operation procedures.

Full specifications

• Product Type: Key-Operated Selector Switch Actuator
• Series: Eaton M22
• Number of Positions: 3
• Switching Angle: 90°
• Actuation Type: Maintained (Latching)
• Key Type: X95 (Eaton Specific)
• Key Removal Position: All positions
• Front Ring Material: Plastic
• Front Ring Color: Black
• Mounting Diameter: 22.5 mm
• Protection Degree (Front): IP66, IP67, IP69K
• Protection Degree (Rear): IP20
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Mechanical Lifespan: > 0.1 million operations
• Compatibility: Eaton M22 Series Contact Blocks and LED Elements
• Standards: IEC/EN 60947, VDE 0660
• RoHS Compliant: Yes
• Number of Keys Included: 1

Final note

The M22-WRS-X95 is a reliable choice for industrial control panels where key-operated selection is required.
