Eaton M22S-WRS atuador de comutador rotativo acionado por chave, 2 posições, com retenção, preto 216889

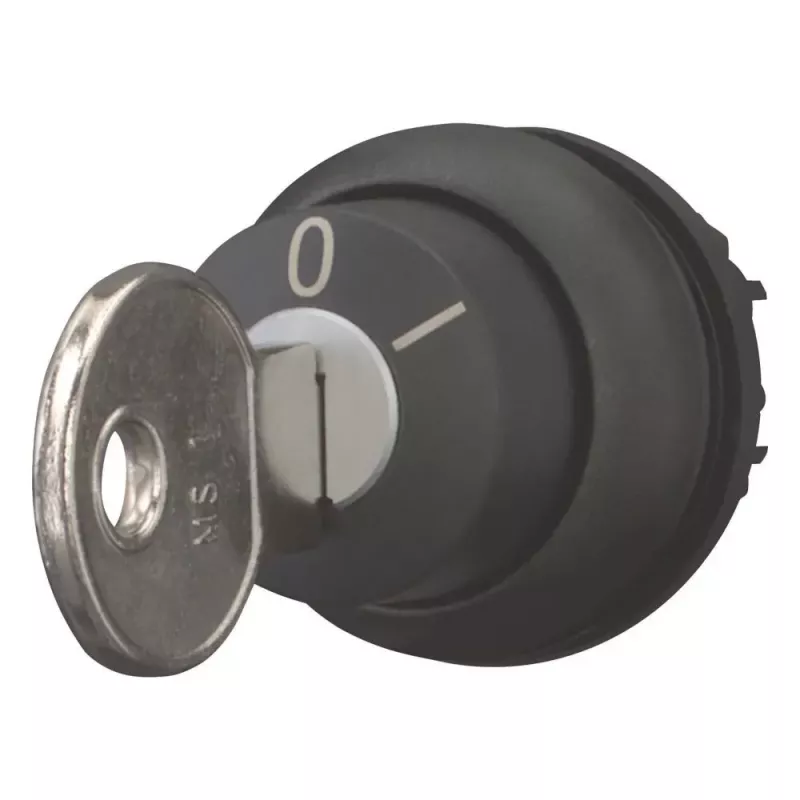

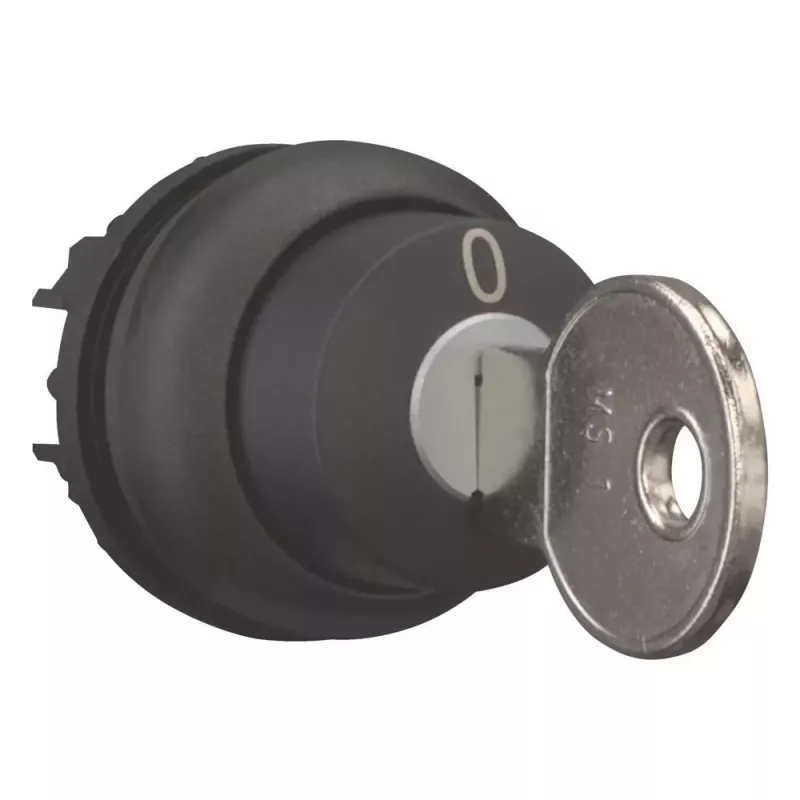

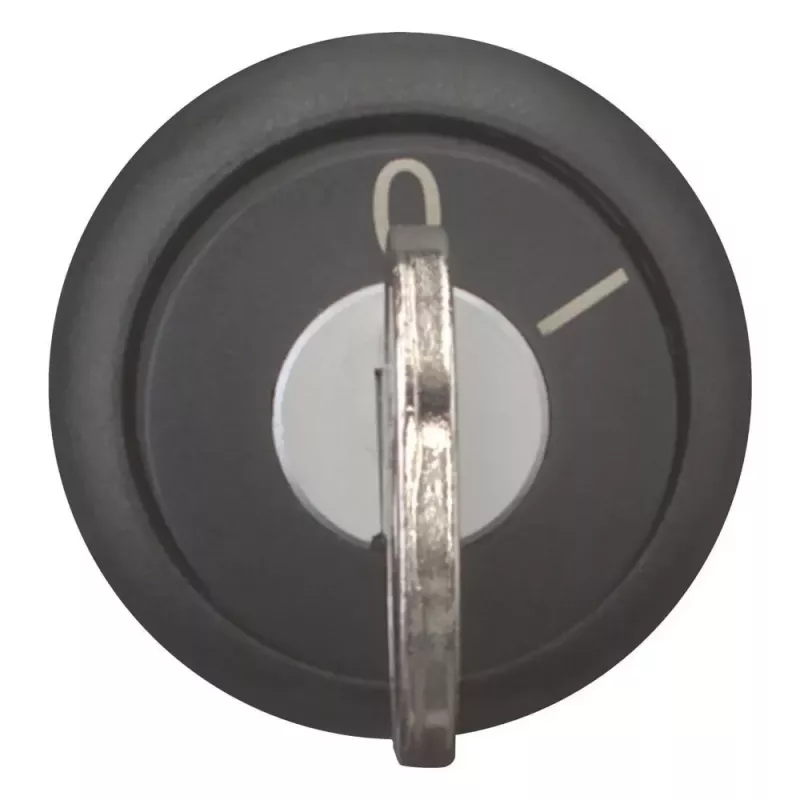

Panel builders and machine operators use the Eaton M22S-WRS key-operated selector switch actuator to control access to critical functions. The actuator mounts into a standard 22.5 mm panel cutout and provides two latching positions, with the key removable only in position 0. The black actuator and titanium front ring offer a clear visual distinction for authorized operation.

Key specifications

• Product type: Key-operated selector switch actuator
• Series: Eaton M22
• Number of positions: 2
• Switching action: Latching (maintained)
• Key removal position: Position 0
• Mounting diameter: 22.5 mm
• Front ring material: Plastic
• Actuator color: Black
• Front ring color: Titanium
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Mechanical life: > 1,000,000 operations
• Key type: Standard (Eaton M22)
• Key quantity included: 1
• Compatibility: M22 contact blocks, M22 LED elements
• Actuator material: Plastic
• Mounting type: Panel mount

Why choose it

The M22S-WRS integrates with the M22 modular system, allowing combination with contact blocks and LED elements. Its latching action maintains the selected position until deliberately changed, and the key removal in position 0 helps prevent unauthorized switching.

Ideal use cases

• Access control for machine start/stop circuits
• Mode selection in industrial control panels
• Locking out maintenance operations

Good to know

The actuator is part of the Eaton M22 series, known for modular design and tool-free assembly. It is suitable for demanding environments with a wide operating temperature range and high mechanical endurance.
