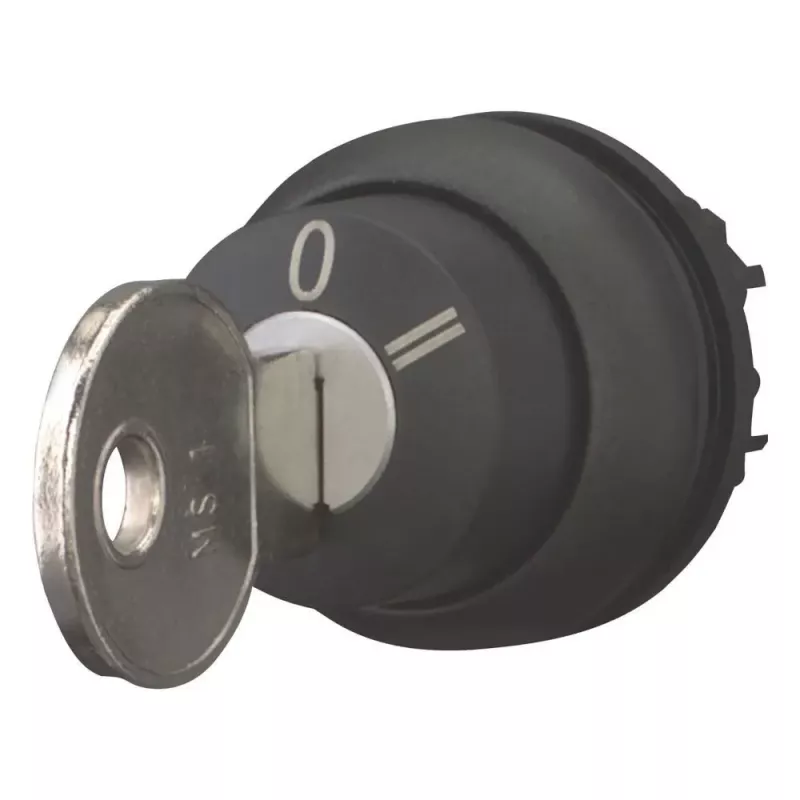

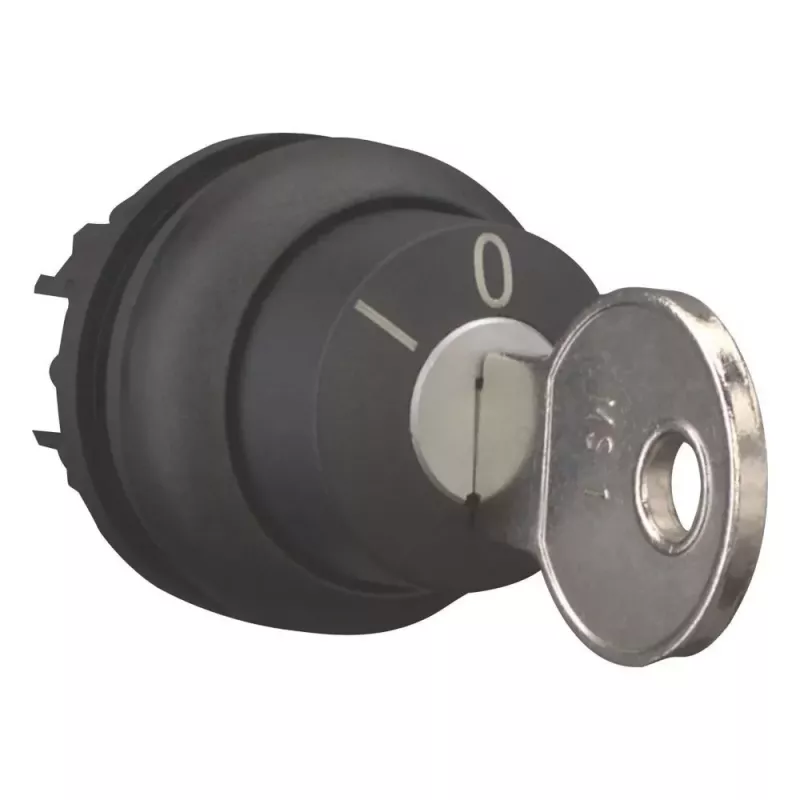

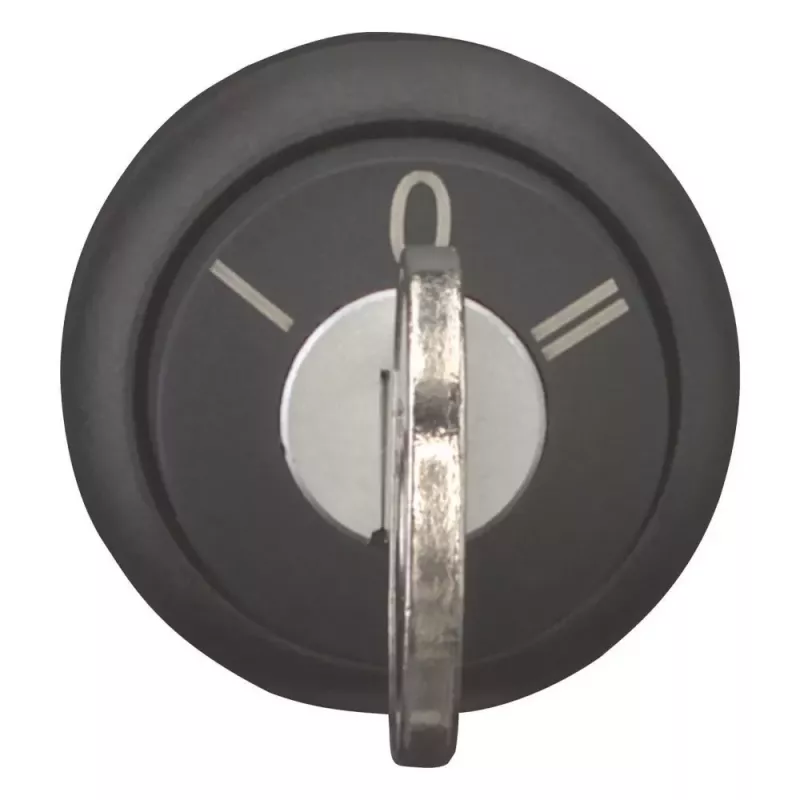

Eaton M22S-WRS3 Interruptor rotativo acionado por chave, 3 posições, com retenção, Preto 216901

In industrial control panels, selecting an operating mode often requires a deliberate action that prevents accidental changes. The Eaton M22S-WRS3 key-operated selector switch provides a secure, maintained 3-position switching solution with a removable key, ensuring only authorized personnel can alter machine states.

Who is it for

Panel builders and maintenance engineers integrating a modular 22.5 mm control device into machinery or enclosures where key-based operation is required.

Main features

• 3 maintained positions with 2 x 45° switching angle
• Key removable in center (0) and right (I) positions
• Modular actuator head compatible with Eaton M22 contact blocks and LED elements
• Black high-grade plastic bezel with silver key cylinder
• Supplied with one standard Ronis S1 key

Specifications

• Series: Eaton M22
• Product type: Key-operated selector switch
• Number of positions: 3
• Switching angle: 2 x 45°
• Operation type: Maintained (latching)
• Key removal positions: Center (0) and Right (I)
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• NEMA protection rating: NEMA 4X, 13
• Bezel colour: Black
• Bezel material: High-grade plastic
• Key cylinder colour: Silver
• Number of keys supplied: 1
• Key type: Standard Ronis S1 key
• Illumination: Non-illuminated
• Operating temperature range: -25°C to +70°C
• Standards compliance: IEC/EN 60947, VDE 0660

Tips

Combine this actuator head with Eaton M22 contact blocks and LED elements to build a complete control station. The key can be removed in two positions, allowing flexible access control.
