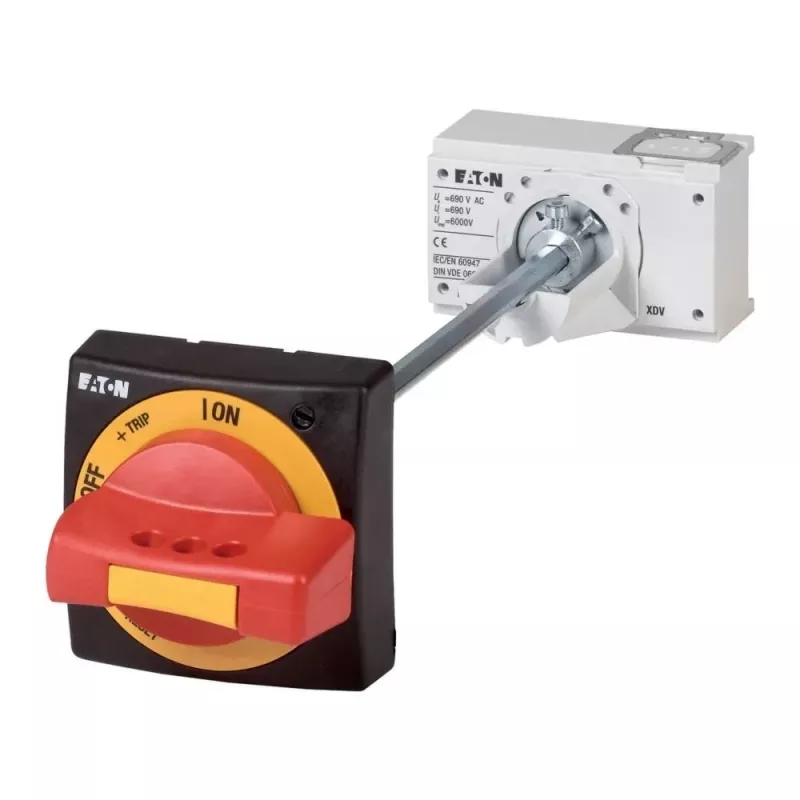

Eaton NZM1-XTVDV acoplamento de porta punho rotativo, bloqueável, vermelho/amarelo 260178

Door coupling rotary handle for Eaton NZM1, N(S)1, and PN1 circuit breakers and switch-disconnectors. The lockable design accepts up to three padlocks with shackle diameter up to 8 mm, securing the switch in the OFF position for maintenance safety.

Advantages

Integrated ON/OFF indication and emergency-stop function provide clear operational status. The handle is constructed from high-quality plastic with a metal mechanism, suitable for door thicknesses up to 5 mm and mounting in vertical or horizontal orientation.

Suitable for

• Main switch applications
• Emergency-stop switching
• Industrial control panels

Key specifications

• Handle colour: Red
• Escutcheon colour: Yellow
• Degree of protection (front): IP66
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C

Recommendations

Use with Eaton NZM1 series circuit breakers for a secure and visible disconnection point.
