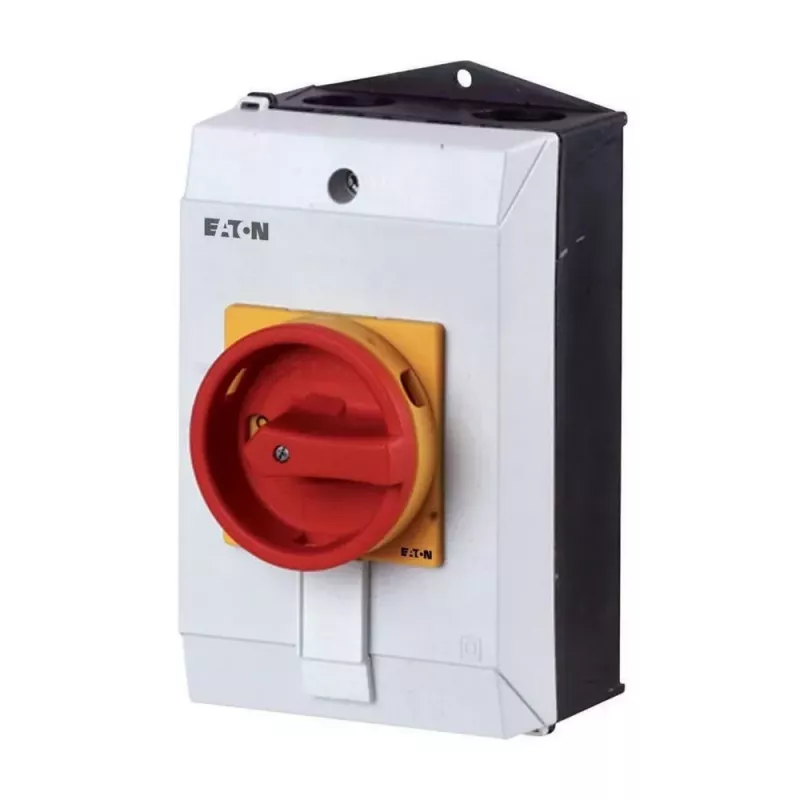

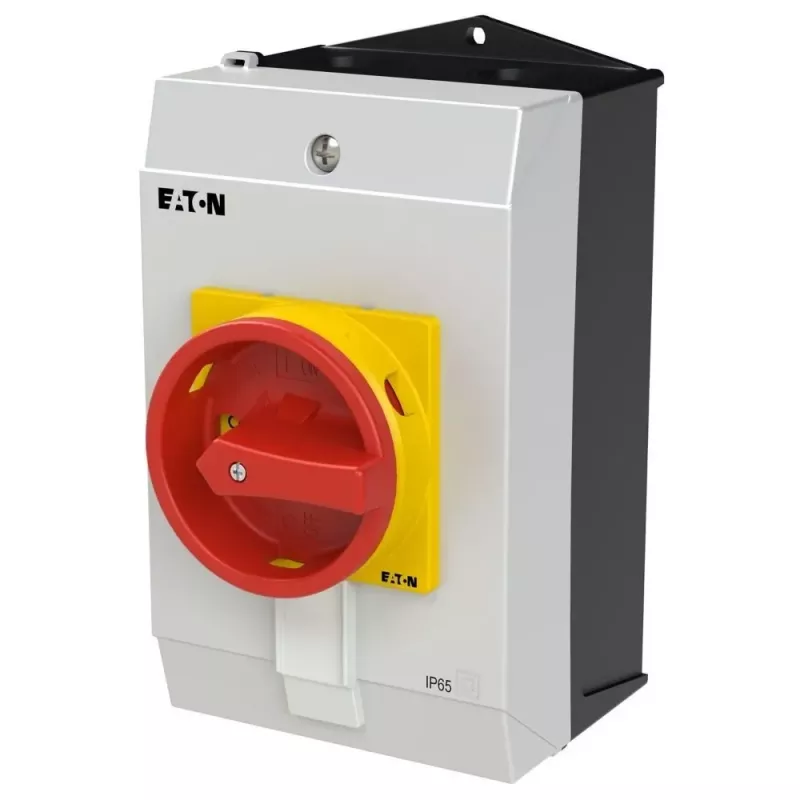

Eaton P1-25/I2H/SVB/N interruptor principal 3 polos 25A montagem frontal branco 227860

Industrial electricians and panel builders use the Eaton P1-25/I2H/SVB/N as a main switch or load disconnector in control cabinets and machine installations. This 3-pole switch handles rated operational currents up to 25 A at 400 V, making it suitable for switching motors and other loads in industrial environments.

Key specifications

• Switch type: Main switch / load disconnector
• Number of poles: 3
• Rated operational current (AC-21A, 400 V): 25 A
• Rated operational current (AC-23A, 400 V): 25 A
• Rated operational power (AC-23A, 400 V): 11 kW
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Rated short-time withstand current (Icw, 1 s): 0.5 kA
• Switching angle: 90°
• Mounting type: Front mounting
• Handle type: Black rotary handle
• Front plate inscription: ON/OFF
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Terminal type: Screw terminals
• Colour: White front plate, black handle

Why choose it

The P1-25/I2H/SVB/N provides reliable isolation and switching in a compact front-mount design. Its IP65 front protection suits dusty or damp environments, while screw terminals ensure secure connections.

Ideal use cases

• Main switch for control panels
• Load disconnector for motors up to 11 kW
• Machine isolation in industrial settings

Good to know

Standards: IEC/EN 60947, VDE 0660. Auxiliary contacts are not included; optional accessories are available separately.
