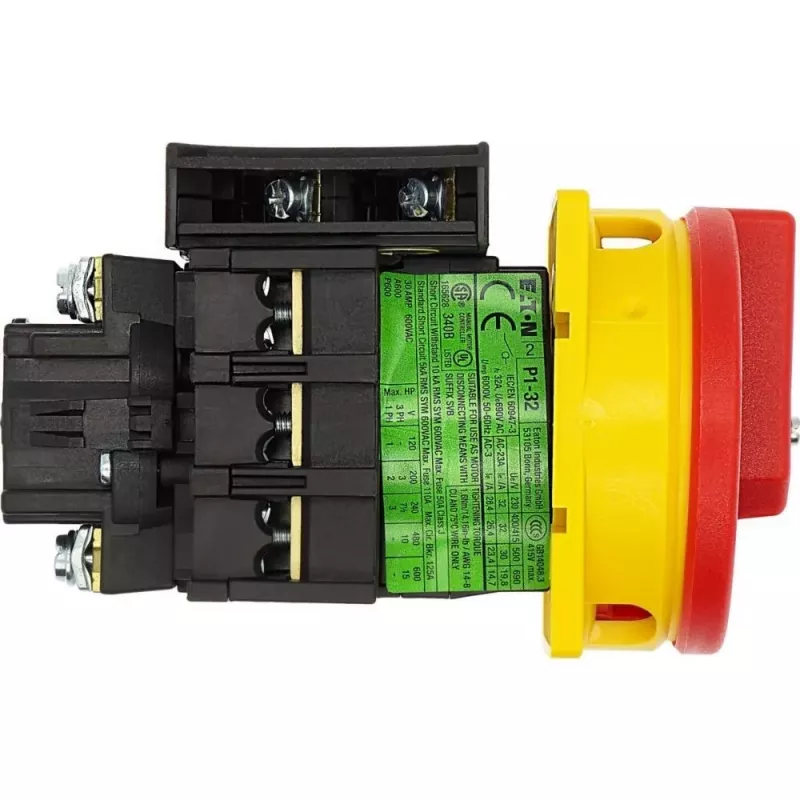

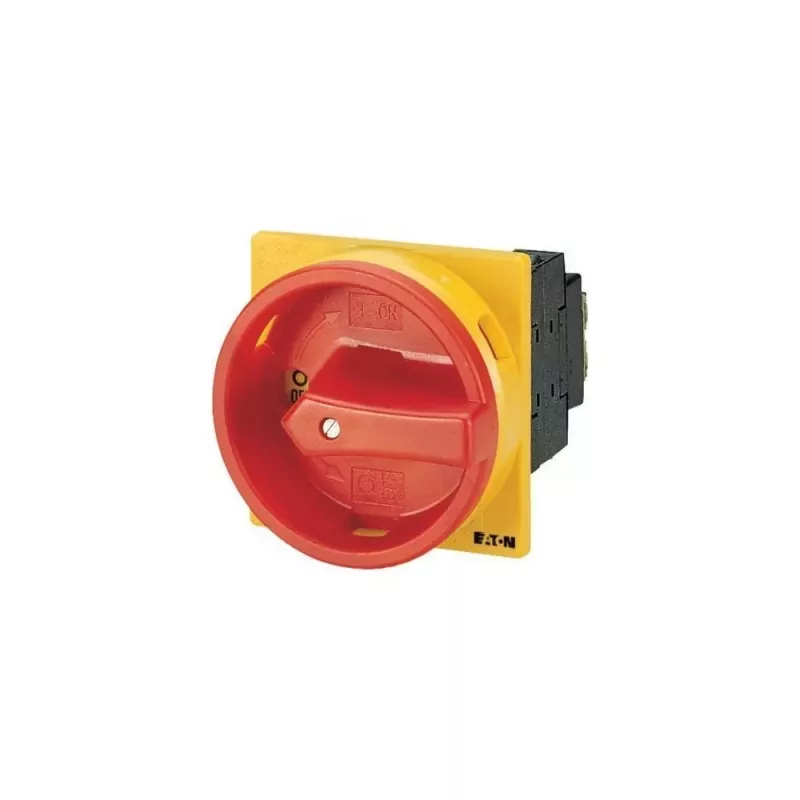

EATON P1-32/EA/SVB/HI11 Interruptor principal, 3 polos, 32 A, montagem em quadro, vermelho/amarelo 072567

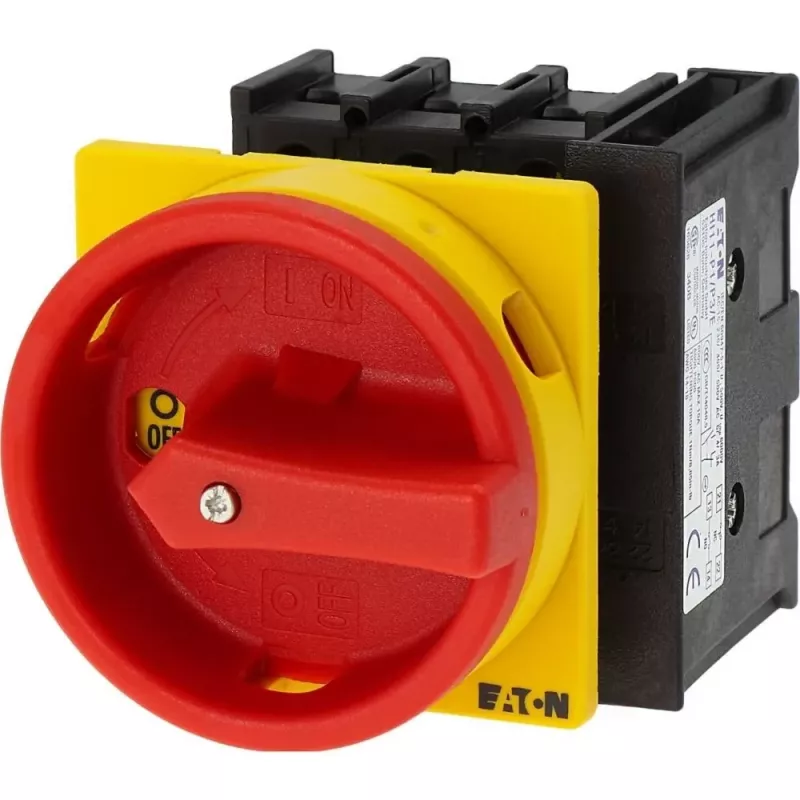

The EATON P1-32/EA/SVB/HI11 stands apart as a robust main switch engineered for demanding industrial control. Its 32 A rating and 690 V AC operational voltage make it suitable for a wide range of power distribution tasks, while the red handle and yellow front plate ensure high visibility and quick identification in control panels.

Highlights

• Rated operational current of 32 A at AC-21A, 690 V
• 3-pole configuration with 1 NO + 1 NC auxiliary contacts
• Panel mounting design with IP65 front protection
• Lockable in OFF position with up to 3 padlocks
• Wide operating temperature range from -25 to +50 °C

In daily use

This switch is ideal as a main, maintenance, or emergency stop switch in industrial control panels. The 90° switching angle provides clear ON/OFF indication, and the screw terminals ensure secure wiring. The lockable OFF position enhances safety during maintenance, preventing accidental re-energization.

Full specifications

• Switch type: Main switch / disconnect switch
• Rated operational current (Ie): 32 A (AC-21A, 690V)
• Rated operational voltage (Ue): 690 V AC
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Mounting: Panel mounting / built-in
• Switching angle: 90°
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Handle colour: Red
• Front plate colour: Yellow
• Lockable: Yes, in 0 (OFF) position with up to 3 padlocks
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated conditional short-circuit current (Iq): 4 kA at 690V with gG/gL 35A fuse
• Rated power (AC-23A, 400V): 15 kW
• Rated power (AC-3, 400V): 11 kW

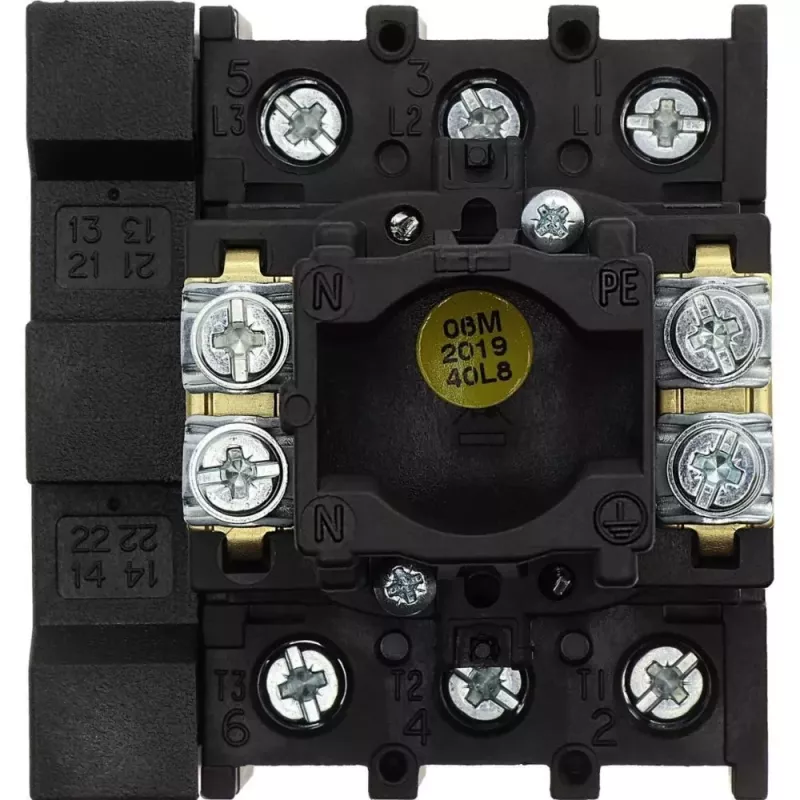

• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C

Final note

Built to meet IEC/EN 60947 and VDE 0660 standards, the EATON P1-32/EA/SVB/HI11 delivers reliable performance for critical switching applications.
