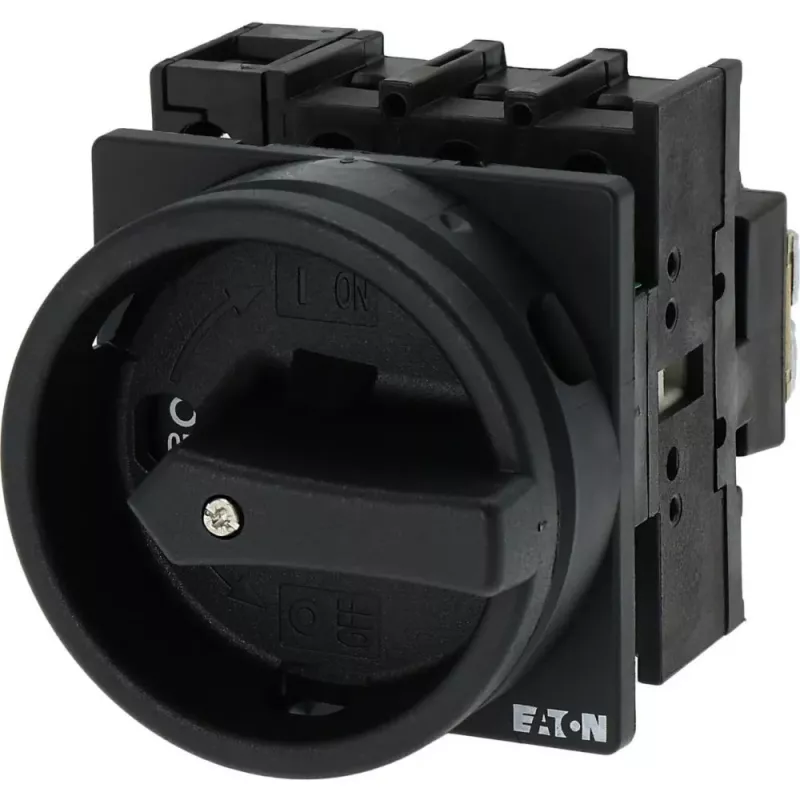

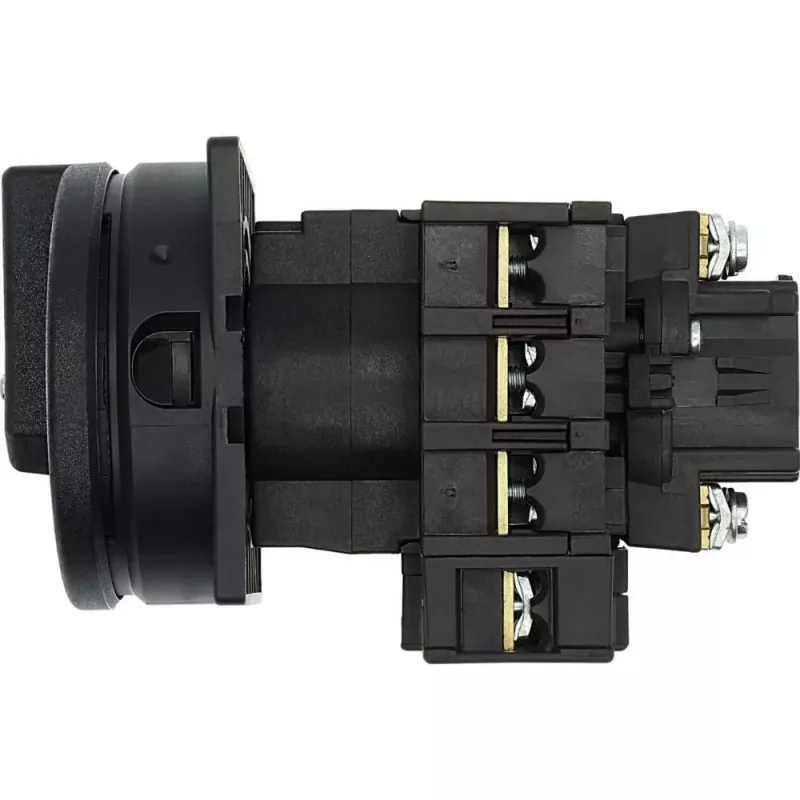

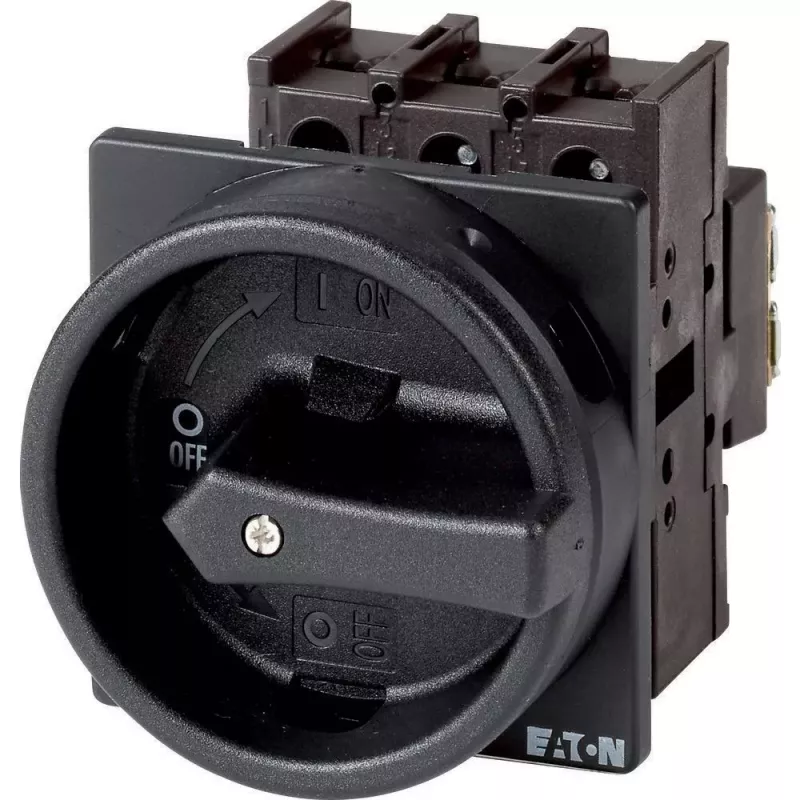

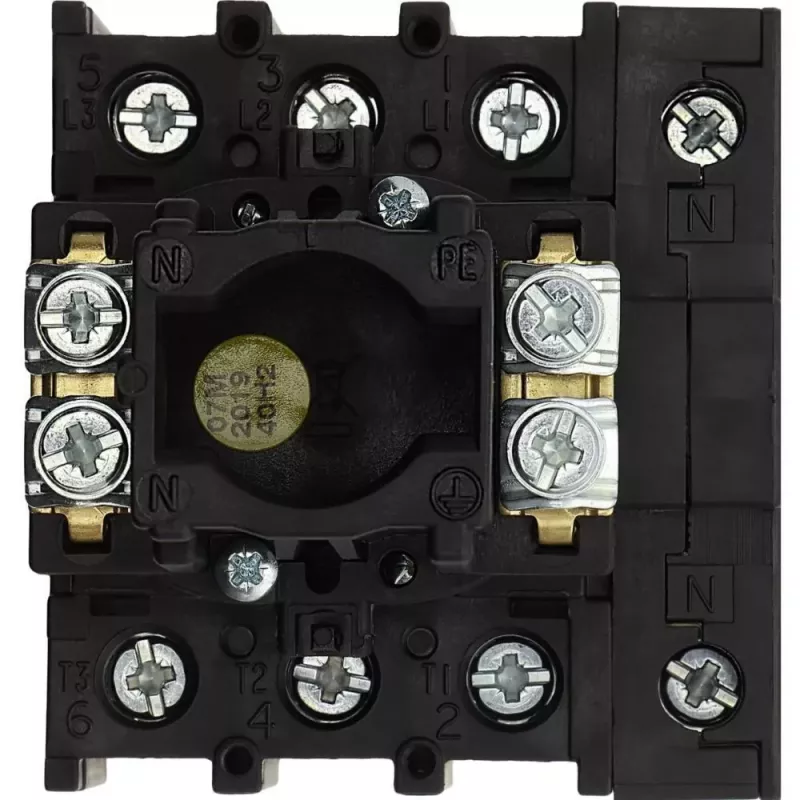

Eaton P1-32/EA/SVB-SW/N Interruptor principal de 3 polos 32 A, IP65, preto 093452

This 3-pole main switch from Eaton provides reliable ON/OFF control for industrial and commercial electrical installations. It is rated for 32 A operational current at 400 V AC, with a maximum operational voltage of 690 V AC. The switch is housed in a surface-mount enclosure with IP65 protection, making it suitable for dusty or wet environments.

Advantages

The rotary handle is lockable in the OFF position, allowing safe isolation during maintenance. The switch meets IEC/EN 60947 and VDE 0660 standards, ensuring compliance with international safety requirements. Its compact design and robust construction ensure long service life.

Suitable for

• Main switch in industrial control panels
• Disconnecting power to machinery for maintenance
• Outdoor installations requiring IP65 protection

Key specifications

• Number of poles: 3
• Rated operational current: 32 A
• Rated operational voltage: 690 V AC
• Enclosure protection: IP65
• Switching function: ON/OFF (0-1)
• Handle type: rotary, lockable, black
• Switching angle: 90°
• Rated short-time withstand current: 640 A (1 s)
• Rated conditional short-circuit current: 50 kA
• Power dissipation: 1.6 W
• Terminal capacity: 1-10 mm²

Recommendations

Ensure proper wiring according to local regulations. Use appropriate cable glands to maintain IP65 rating.
