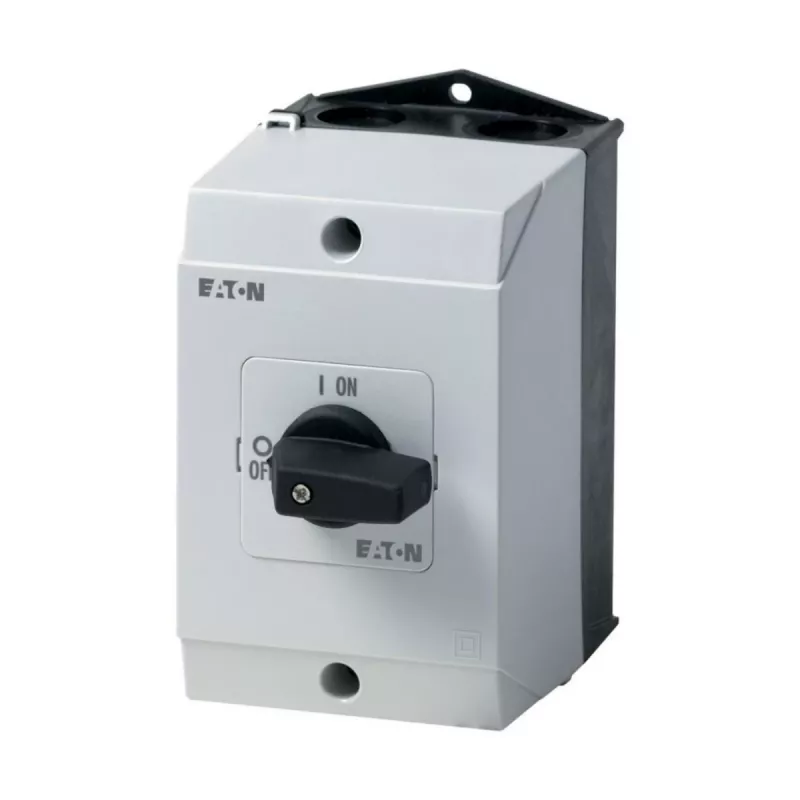

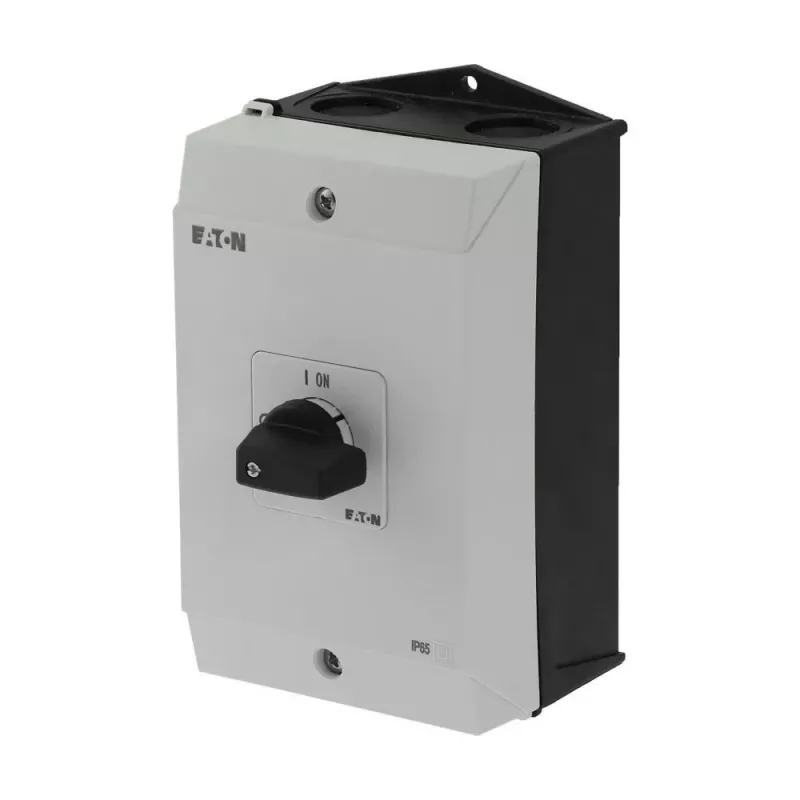

Eaton P1-32/I2 Interruptor principal rotativo, 3 polos, 32 A, preto/branco 207320

Rotary main switch with 3-pole configuration and a rated operational current of 32 A, providing reliable ON-OFF control for industrial and commercial electrical circuits. The switch features a 90° switching angle and front mounting with central fixing, ensuring straightforward installation and operation.

Advantages

High rated operational voltage of 690 V AC and a short-time withstand current of 640 A (1s) ensure robust performance under demanding conditions. The front protection degree of IP65 guards against dust and water jets, while the terminal protection degree of IP20 provides basic contact safety. The black handle and white front plate with black markings offer clear visual status indication.

Suitable for

• Main switch applications in industrial control panels
• Motor disconnection and isolation in machinery
• Commercial building electrical distribution
• HVAC and pump control circuits

Key specifications

• Switch type: Rotary main switch
• Number of poles: 3
• Rated operational current (AC-21A, 400 V): 32 A
• Rated operational current (AC-23A, 400 V): 32 A
• Rated operational power (AC-23A, 400 V): 15 kW
• Rated operational voltage Ue: 690 V AC
• Number of positions: 2 (ON-OFF)
• Switching angle: 90°
• Mounting type: Front mounting (central mounting)
• Front protection degree: IP65
• Terminal protection degree: IP20
• Handle colour: Black
• Front plate colour: White with black markings
• Terminal capacity: 1x (1.5 - 6 mm²), 2x (1.5 - 6 mm²)
• Rated impulse withstand voltage Uimp: 6 kV
• Rated short-time withstand current Icw (1s): 640 A
• Rated conditional short-circuit current: 4 kA
• Fuse for short-circuit protection: 32 A gG/gL

Recommendations

For reliable main switch isolation in industrial environments, pair with appropriate fuses and ensure proper enclosure for the IP65 front protection.
