Eaton P1-32/I2/SVB/HI11 interruptor principal 3 polos 32 A vermelho/amarelo 207318

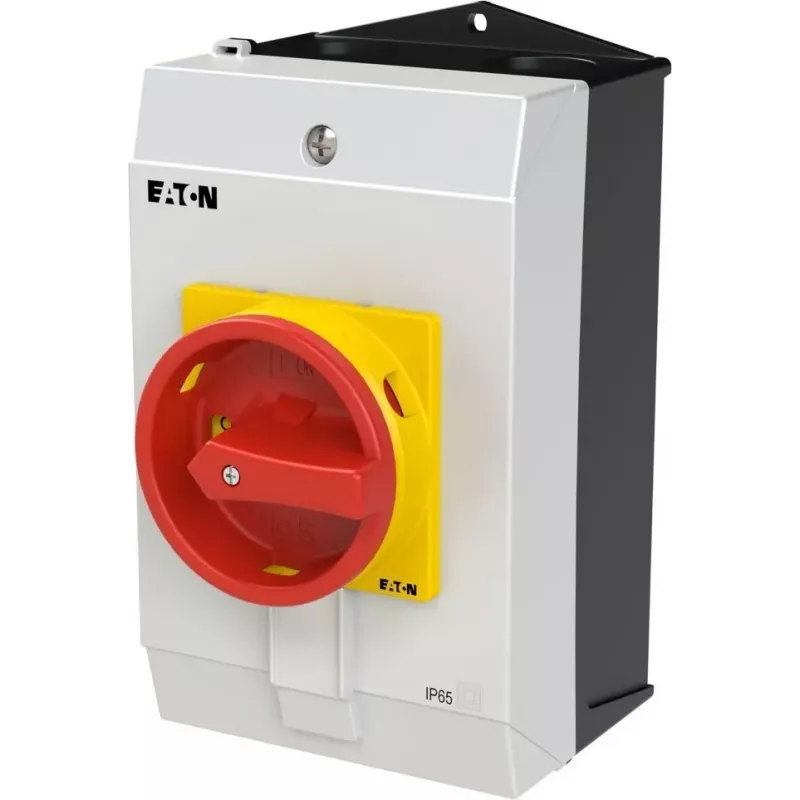

In industrial control panels and machine building, a reliable main switch that can also act as an emergency stop is essential. The Eaton P1-32/I2/SVB/HI11 is a 3-pole main switch with a red/yellow handle, rated for 32 A and 690 V AC, and housed in an IP65 insulated enclosure for surface mounting. It includes one normally open and one normally closed auxiliary contact, making it suitable for control circuit integration.

Key specifications

• Type: Main switch / disconnect switch
• Number of poles: 3
• Rated operational current: 32 A
• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated short-time withstand current: 0.64 kA (1 s)
• Enclosure protection: IP65
• Mounting type: Surface mounted
• Handle colour: Red/yellow
• Switching function: ON/OFF, emergency stop
• Number of switching positions: 2
• Switching angle: 90°
• Terminal type: Screw terminals
• Auxiliary contacts: 1 NO, 1 NC
• Standards compliance: IEC/EN 60947
• Rated frequency: 50/60 Hz
• Operating temperature range: -25 to +50 °C
• Housing material: Insulated enclosure (polycarbonate)

Why choose it

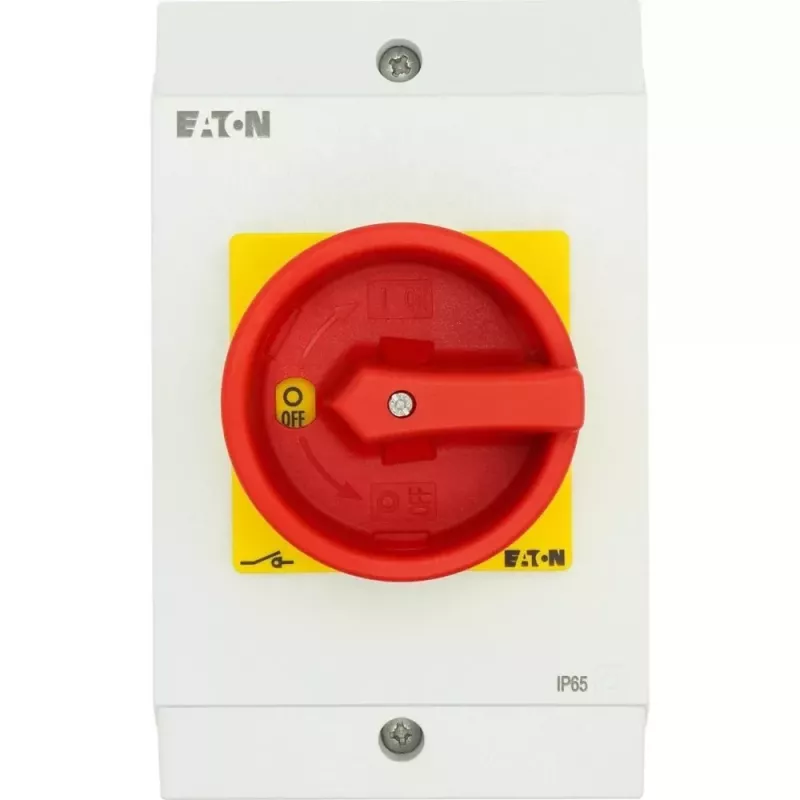

This switch combines the functions of a main disconnect and an emergency stop in one compact unit. The red/yellow handle is clearly visible and can be locked in the OFF position for maintenance safety. The IP65 enclosure protects against dust and water jets, making it suitable for use in harsh industrial environments.

Ideal use cases

• Machine control panels requiring a main disconnect switch
• Emergency stop applications on industrial equipment
• Surface-mounted installations in workshops or production lines

Good to know

The switch is compliant with IEC/EN 60947 and is designed for reliable switching of three-phase loads. The screw terminals provide secure connections for conductors. The polycarbonate housing offers good impact resistance and insulation properties.
