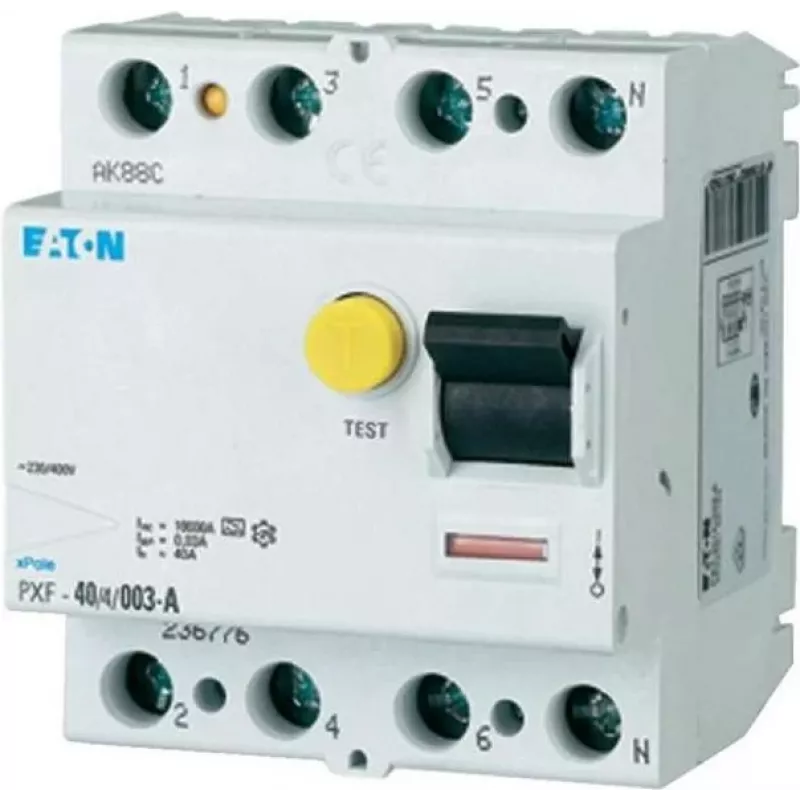

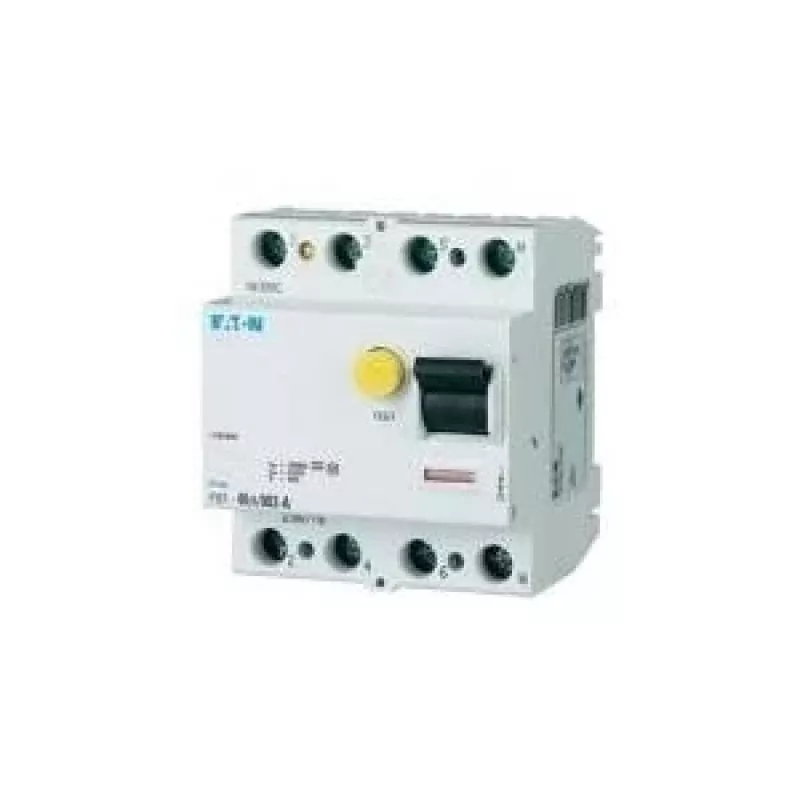

EATON PXF-40/4/003-A interruptor diferencial 40A 4 polos 30mA tipo A

Residual current circuit breaker (RCCB) with 40 A rated current, 4-pole, 30 mA sensitivity, Type A tripping characteristic, and 10 kA conditional short-circuit rating. It instantly disconnects the circuit upon detecting hazardous residual currents, protecting people and equipment from earth fault currents. Type A detection covers alternating and pulsating direct residual currents, making it ideal for installations with electronic components.

Advantages

Robust protection with a conditional short-circuit rating of 10 kA ensures safety even under fault conditions. The compact 4-module (70 mm) design saves space on the DIN rail. IP20 terminals and IP40 front provide reliable insulation. Mechanical endurance of 20,000 operations and electrical endurance of 10,000 operations deliver long-term dependability. Wide terminal capacity from 1.5 to 35 mm² accommodates various conductor sizes, simplifying installation.

Suitable for

• Residential distribution boards requiring earth leakage protection
• Commercial buildings with mixed loads including electronic equipment
• Industrial control panels needing Type A RCD protection
• Installations where pulsating DC residual currents may occur

Key specifications

• Rated current: 40 A
• Number of poles: 4
• Rated residual current: 30 mA
• RCD type: A
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Conditional short-circuit rating: 10 kA
• Mounting: DIN rail
• Width: 4 modules (70 mm)
• Protection: IP20 terminals, IP40 front
• Operating temperature: -25 to +40 °C
• Terminal capacity: 1.5 - 35 mm²
• Standards: IEC/EN 61008

Recommendations

For reliable earth fault protection in residential, commercial, and industrial installations, pair this RCCB with compatible EATON miniature circuit breakers and surge protective devices. Ensure proper DIN rail mounting and torque terminal screws to manufacturer specifications. Test the RCCB regularly using the test button to verify functionality.
