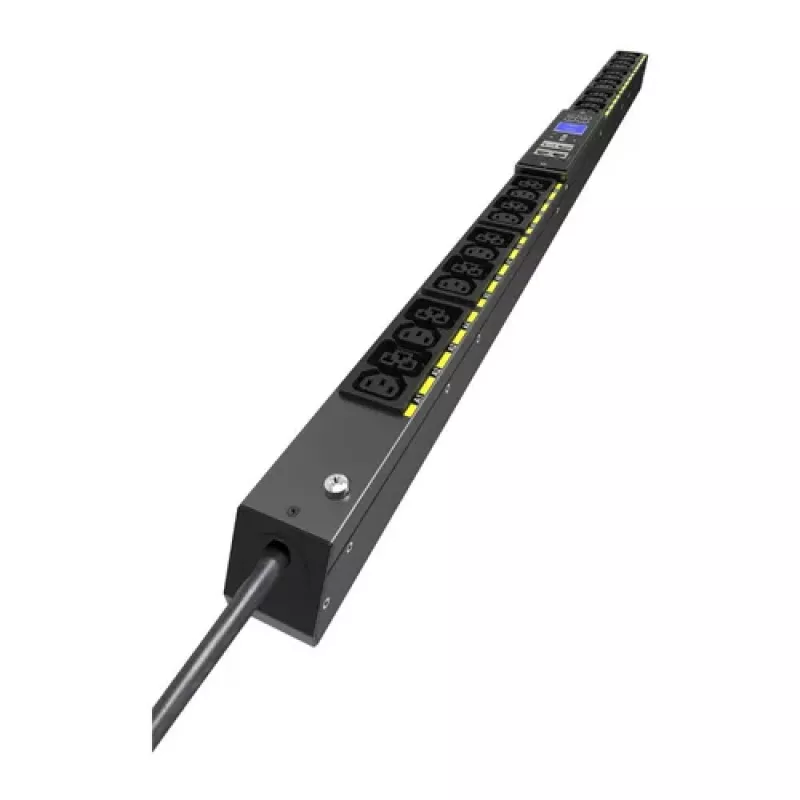

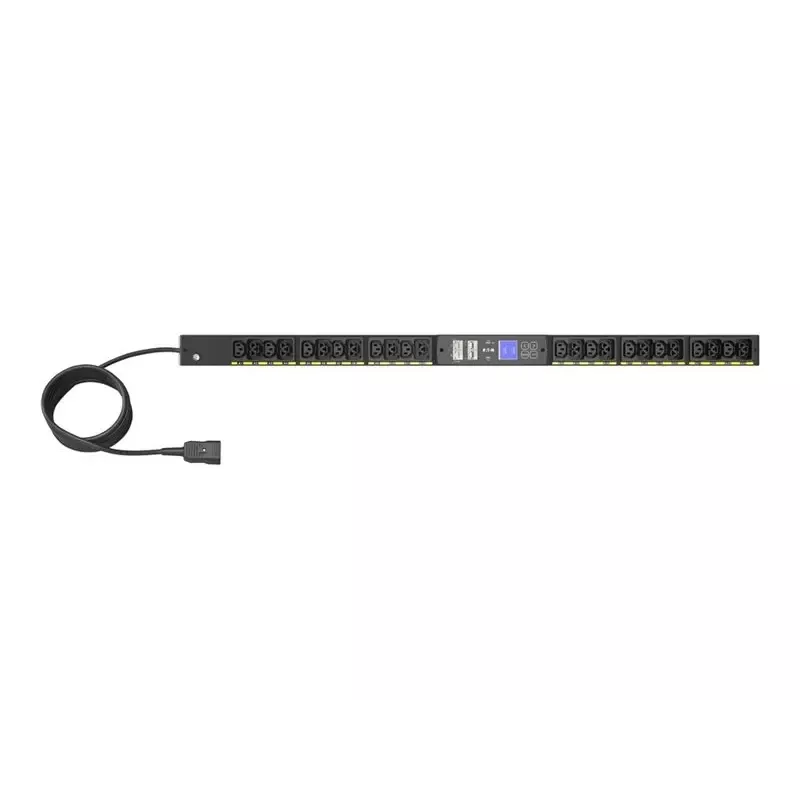

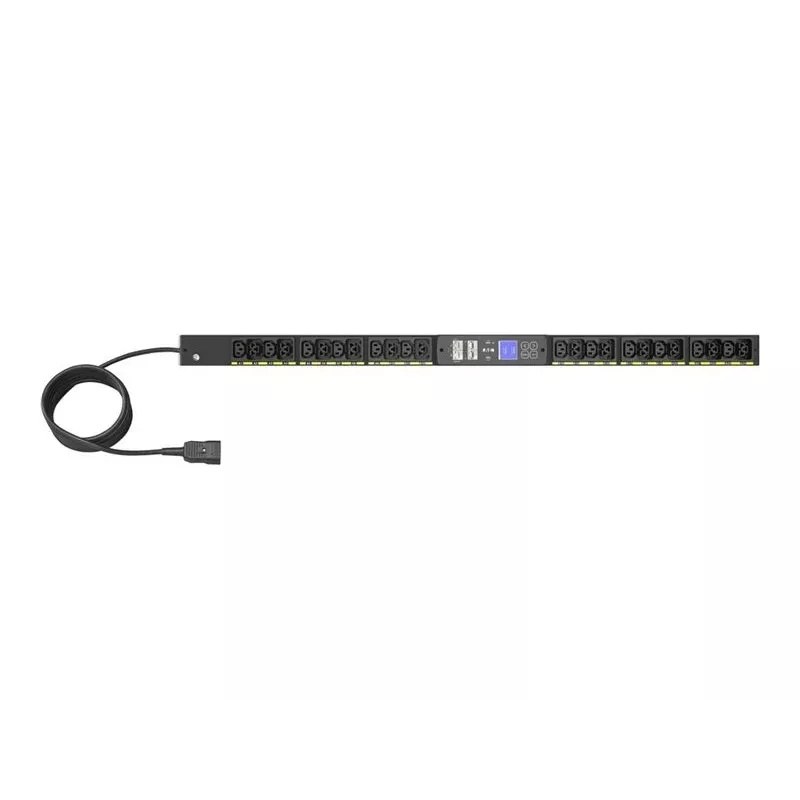

Eaton Rack PDU G4 Managed Input 0U C20 16A 1P 12xC13 -12xC39

The Eaton Rack PDU G4 Managed Input (MI) is a high-performance power distribution unit designed for data centers and server rooms. With a 0U vertical form factor, it mounts easily in any standard 19-inch rack without occupying valuable rack space. This PDU features a single-phase input with an IEC-320 C20 connector rated at 16A and 200-240V AC, providing reliable power distribution to 12 IEC-320 C13 outlets. The managed input capabilities allow for remote monitoring of input current, voltage, power, and energy consumption via an integrated 10/100 Mbps Ethernet interface. The LCD display provides local readouts, while the tool-less button mounting simplifies installation. The included 3-meter power cord offers flexibility in rack placement.

Advantages

Optimize power distribution and monitoring with the Eaton G4 MI PDU. Its managed input enables proactive capacity management and energy efficiency. The 0U design saves rack space, and the robust steel chassis ensures durability. Remote management via HTTP, HTTPS, SNMP, and other protocols integrates seamlessly with existing network infrastructure.

Suitable for

• Data centers requiring remote power monitoring
• Server rooms with limited rack space
• IT professionals managing power capacity and energy consumption
• Environments needing reliable single-phase power distribution

Key specifications

• PDU Type: Managed Input (MI)
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC-320 C20
• Input Voltage: 200-240V AC
• Input Current: 16A
• Phase: Single-phase (1P)
• Output Receptacles: 12 x IEC-320 C13
• Network Interface: 10/100 Mbps Ethernet (RJ45)
• Management Protocols: HTTP, HTTPS, SSL, Telnet, FTP, SNMP (v1, v2c, v3), SMTP, NTP, DHCP, DNS, LDAP, RADIUS, Syslog
• Local Display: LCD Display
• Power Cord Length: 3 meters (approx. 10 ft)
• Mounting Type: Tool-less button mounting, Vertical Rack
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, UL, cUL, IEC 60950-1, RoHS compliant
• Color: Black
• Chassis Material: Steel

Recommendations

For optimal performance, pair this PDU with Eaton's power management software to gain real-time insights and alerts. Ensure the input circuit is rated for 16A and 200-240V AC. The 0U design is ideal for vertical mounting in racks with tool-less button holes.
