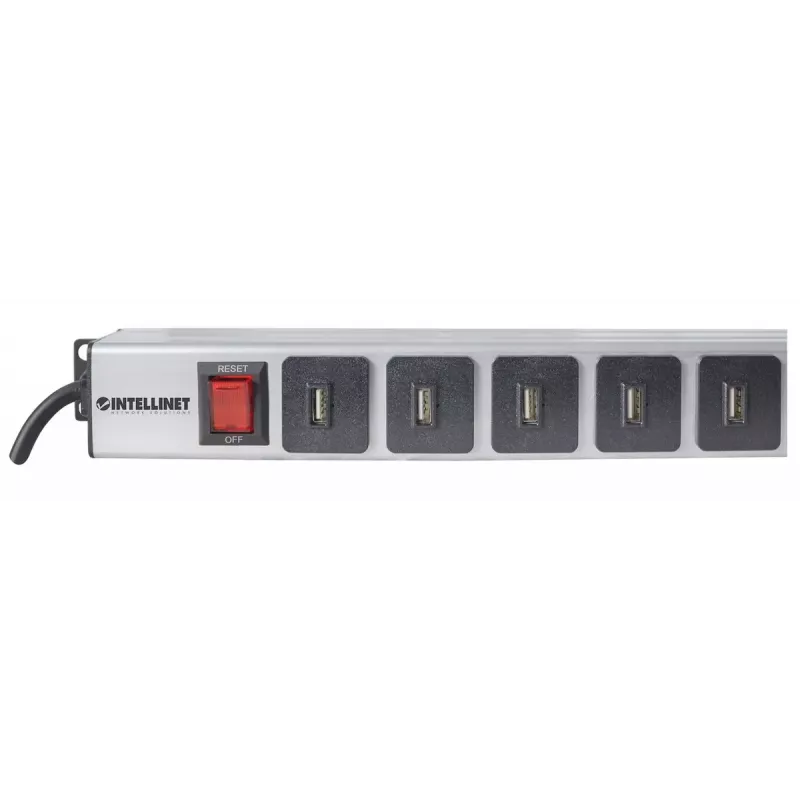

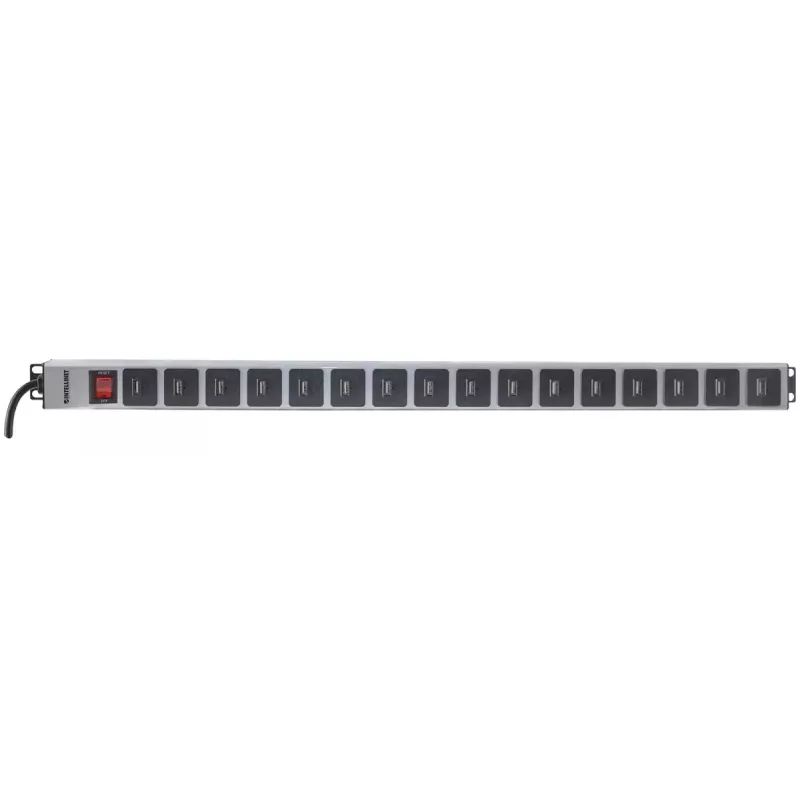

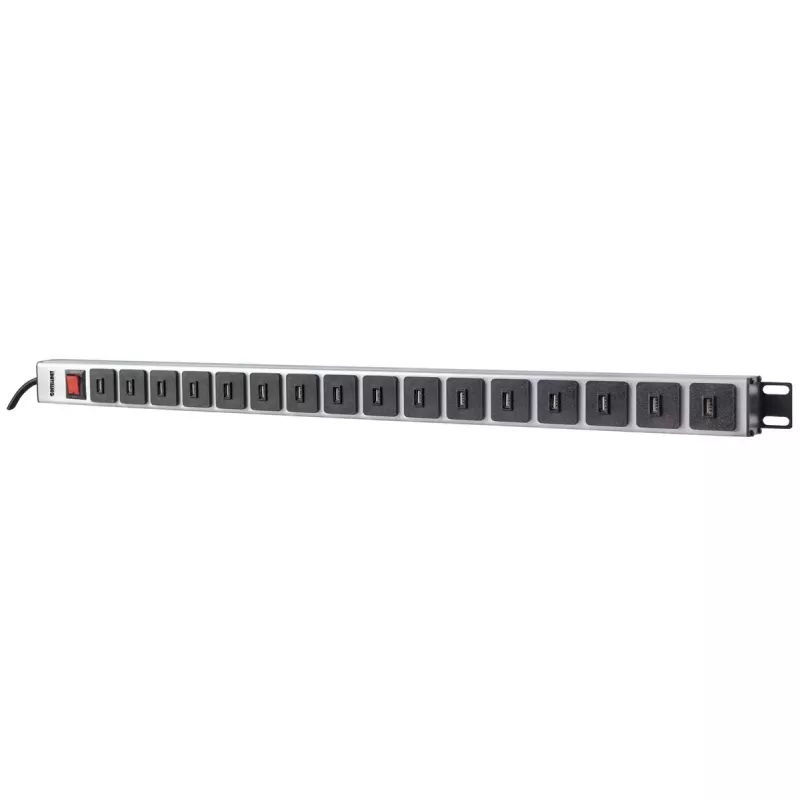

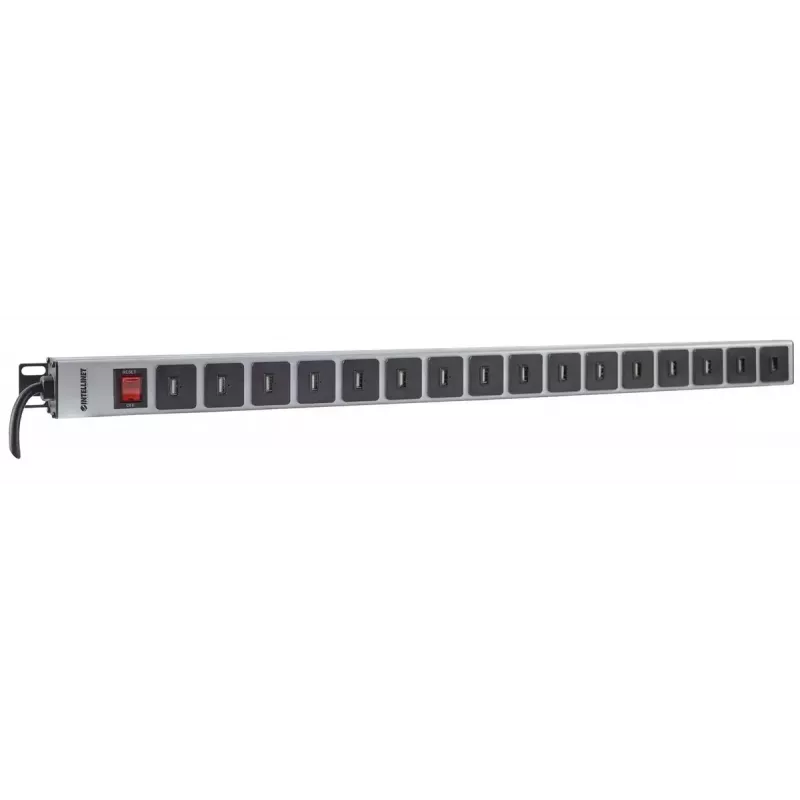

Unidade de distribuição de energia Intellinet montagem vertical em rack 16 portas USB-A

The Intellinet Network Solutions Vertical Rackmount 16-Port USB-A Power Distribution Unit provides centralized power delivery for up to 16 devices via USB-A ports. Designed for vertical installation at the rear of a standard network rack, the unit features a durable aluminum housing, overload protection and a 2 m power cord with a Euro 2‑pin plug. Each USB‑A port supplies up to 2.1 A to support faster charging of connected portable electronics while maintaining safe operation.

Advantages

The vertical rackmount design saves horizontal rack space and positions ports for convenient rear access. With 16 individually available USB‑A ports delivering up to 2.1 A each, the PDU supports simultaneous charging of multiple devices. The aluminum enclosure and built‑in overload protection enhance durability and operational safety. A 2 m power cord (Euro 2‑pin plug) simplifies installation in standard European rack environments.

Suitable for

• Charging multiple smartphones and tablets in a network rack
• Powering portable devices in classrooms, offices, or conference rooms
• Centralized charging stations for kiosks or POS terminals
• Environments requiring rear vertical rack installation to save space

Key specifications

• Ports: 16 × USB‑A
• Output per port: 2.1 A max
• Housing: aluminum
• Power cord: 2 m, Euro 2‑pin plug
• Dimensions (W×D×H): 45 mm × 756 mm × 40 mm
• Weight: 1.4 kg
• Colour: Black, Grey
• Brand: INTELLINET, MPN: 164498, EAN: 766623164498

How to use

Mount the unit vertically at the rear of a standard rack using compatible rackmount fittings. Connect the PDU to mains power using the supplied 2 m Euro 2‑pin power cord. Use compatible USB‑A cables to connect each device to the desired port. The unit delivers up to 2.1 A per port; ensure connected devices accept USB‑A charging at that current. Do not exceed the overall power capacity of the rack circuit.

Recommendations

For reliable operation, distribute high‑current devices across multiple ports and avoid exceeding the power available from the rack circuit. Keep ventilation clear around the aluminum housing and periodically inspect the power cord and connections for wear. Use USB‑A cables rated for charging to maintain safe and efficient power delivery.
