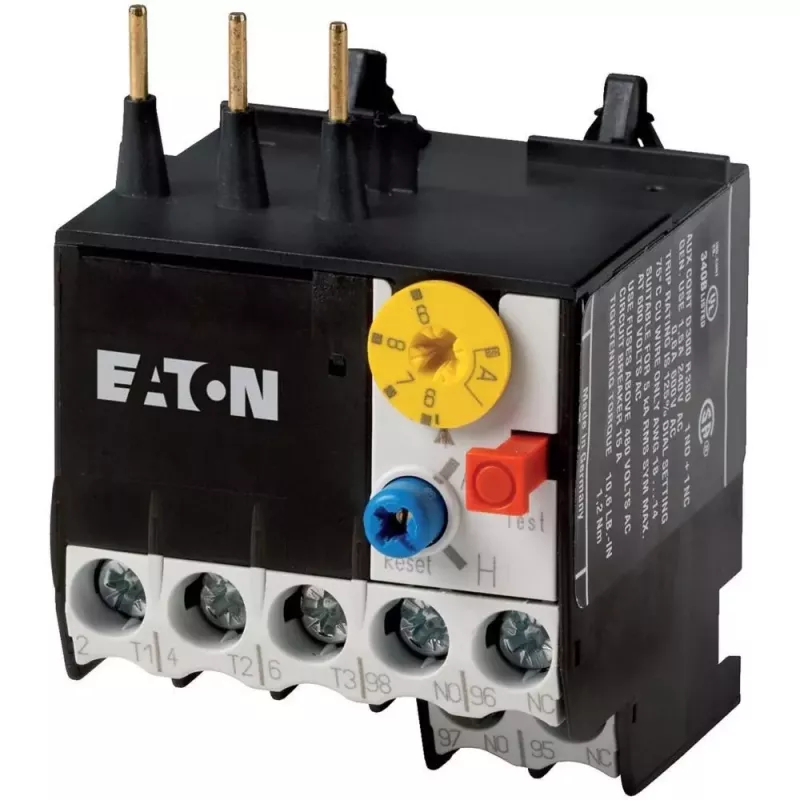

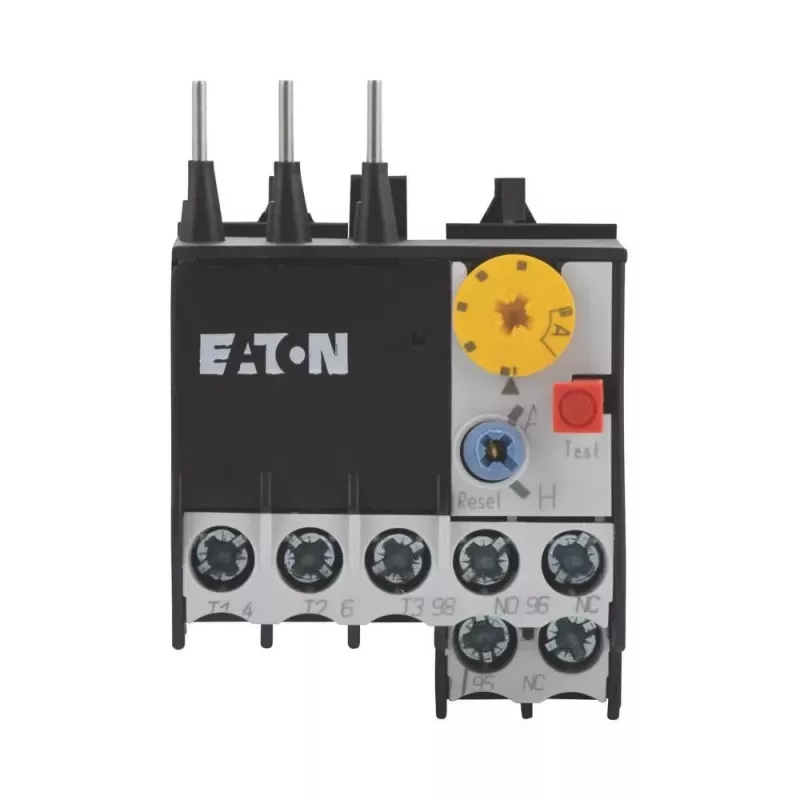

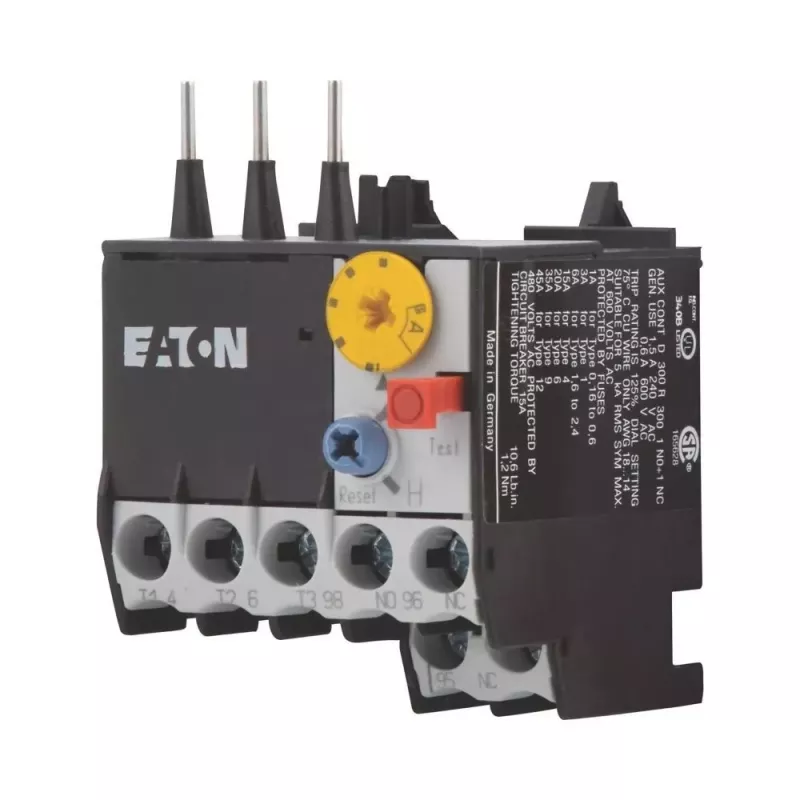

EATON Relé de proteção de motor ZE-0.6, 0,6 A, 1NO+1NC, 690 V AC, IP20 014333

Industrial electricians and panel builders use the EATON ZE-0.6 motor protection relay to guard small three-phase motors against thermal overload. It mounts directly onto EATON DILM7, DILM9, DILM12, and DILM15 mini contactors, forming a compact and reliable motor starter combination.

Key specifications

• Rated operational current: 0.6 A
• Adjustable current setting range: 0.4 – 0.6 A
• Rated operational voltage: 690 V AC
• Number of poles: 3-pole
• Overload release type: thermal
• Trip class: 10A
• Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
• Reset function: manual/automatic selectable
• Mounting: direct on mini contactors
• Connection: screw terminals
• Degree of protection: IP20
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Ambient operating temperature: -25 to +55 °C
• Standards: IEC/EN 60947-4-1, VDE 0660

Why choose it

The ZE-0.6 provides precise thermal overload protection in a compact design that integrates seamlessly with EATON mini contactors. The selectable reset function and clear auxiliary contact configuration simplify control circuit design and maintenance.

Ideal use cases

• Protecting small three-phase motors in industrial machinery
• Motor starter combinations with EATON DILM7, DILM9, DILM12, DILM15 contactors
• Panel building and machine retrofits requiring reliable thermal protection

Good to know

The relay is designed for direct mounting, eliminating the need for additional adapters or wiring between the relay and contactor. Its screw terminals ensure secure and durable connections in industrial environments.
