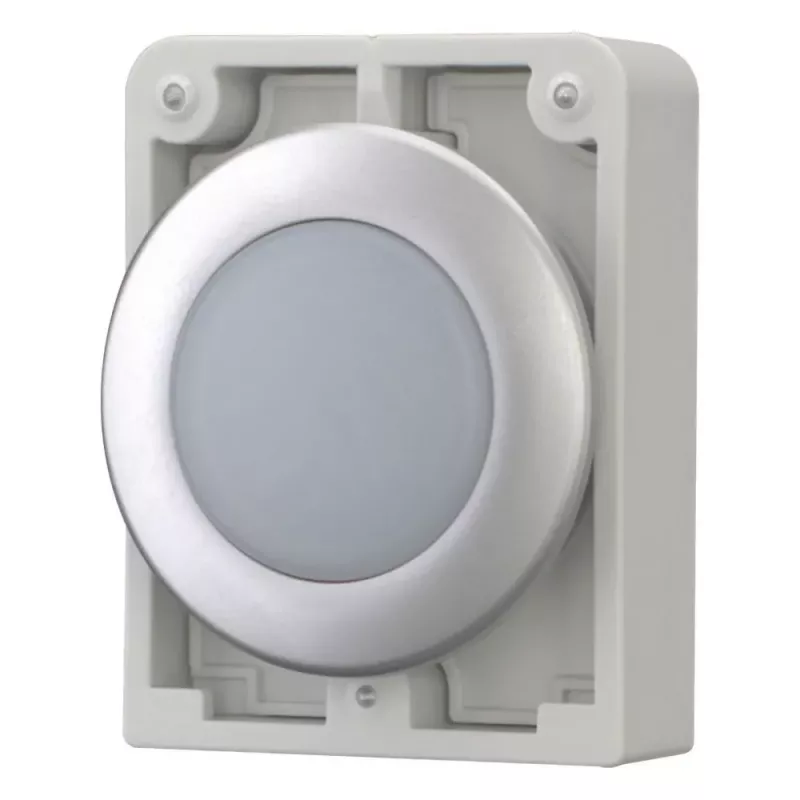

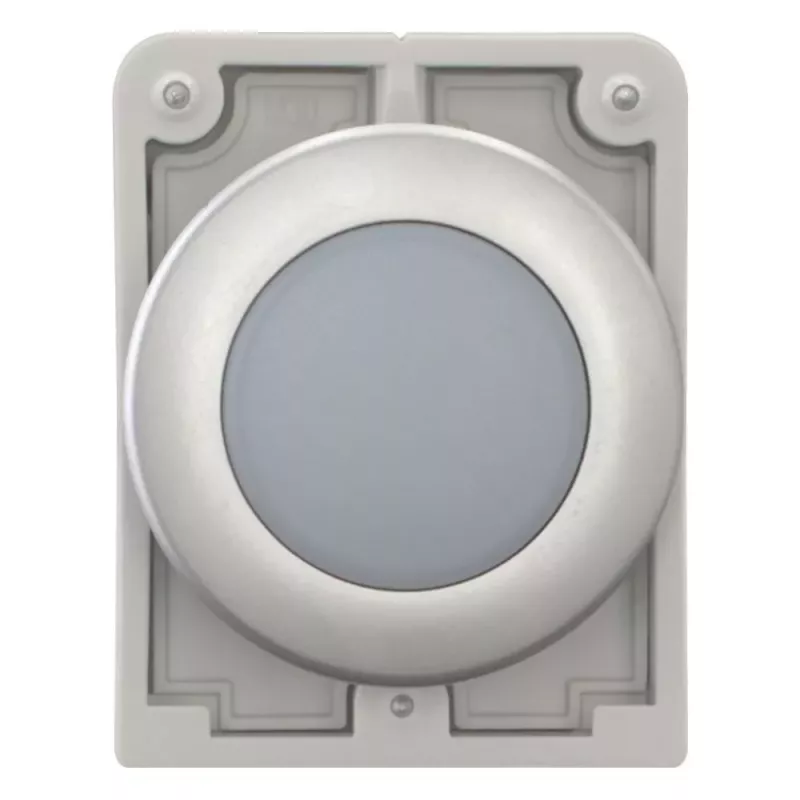

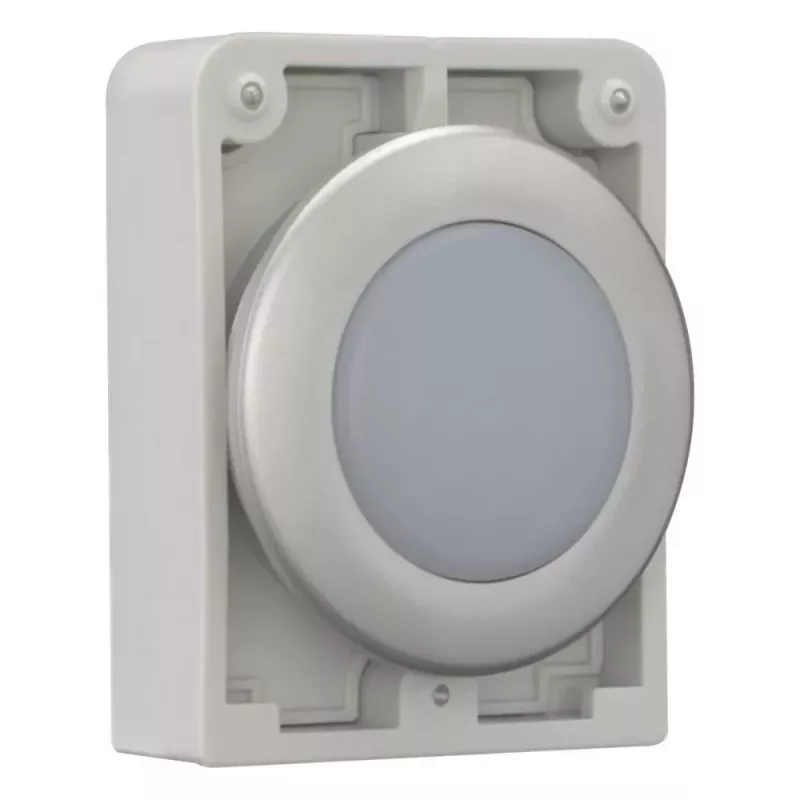

Eaton RMQ-Titan Cabeça de luz de sinalização redonda plana, lente branca, aro cromado, M30C-FL-W 183287

The Eaton M30C-FL-W indicator light head stands out with its chrome-plated metal bezel and flat white lens, delivering a clean, modern look for industrial control panels. Part of the RMQ-Titan series, it is built for demanding environments with high front protection ratings.

Highlights

• Flat round design with chrome-plated metal bezel
• White lens for clear visual indication
• Panel mount with 30.5 mm diameter
• High front protection: IP66, IP67, IP69K
• NEMA 4X, 13 rated

In daily use

This indicator light head is designed for use with Eaton RMQ-Titan LED elements and contact blocks. It mounts easily in a standard 30.5 mm panel cutout. The flat lens and chrome finish provide a professional appearance, while the robust construction ensures reliable performance in washdown and harsh industrial settings.

Full specifications

• Product type: Indicator light head
• Series: RMQ-Titan
• Mounting diameter: 30.5 mm
• Lens colour: White
• Lens shape: Flat
• Bezel material: Metal
• Bezel finish: Chrome-plated
• Front protection rating: IP66, IP67, IP69K
• NEMA rating (front): NEMA 4X, 13
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C
• Lens material: Plastic
• Mounting type: Panel mount
• RoHS compliant: Yes

Final note

A reliable and attractive indicator light head for industrial signalling applications.
