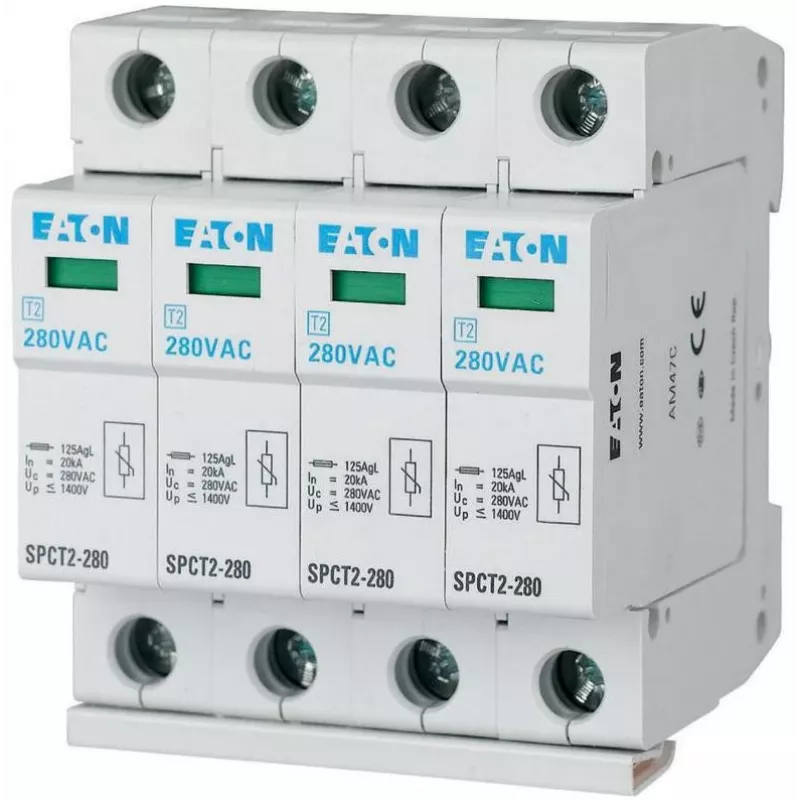

EATON SPCT2-280/4 Dispositivo de proteção contra sobretensões tipo 2 4 polos 20/40kA 1,4kV

The EATON SPCT2-280/4 is a high-performance Type 2 surge protective device (SPD) designed for protection against transient overvoltages in low-voltage power distribution systems. With 4 poles and a maximum discharge current of 40 kA, it ensures reliable protection for sensitive equipment in residential, commercial, and industrial installations. Compatible with TN-S, TN-C-S, and TT earthing systems, this SPD is ideal for main or sub-distribution boards.

Advantages

Robust metal oxide varistor (MOV) technology provides fast response time (<25 ns) and high surge handling capability. Visual status indication (green/red) allows easy monitoring of protection status. Compact 4-module width saves space on DIN rail. High short-circuit withstand capability (50 kA) ensures safety under fault conditions.

Suitable for

• Main distribution boards in buildings
• Sub-distribution boards for sensitive electronics
• Industrial control panels
• Telecommunications and data centers
• Renewable energy systems

Key specifications

• Type: Type 2 SPD
• Number of poles: 4
• Maximum continuous operating voltage (Uc): 280 V AC
• Nominal discharge current (In): 20 kA (8/20 µs)
• Maximum discharge current (Imax): 40 kA (8/20 µs)
• Voltage protection level (Up): ≤ 1.4 kV
• Earthing systems: TN-S, TN-C-S, TT
• Mounting: DIN rail
• Module width: 4 TE
• Status indication: Visual (green/red)
• Short-circuit withstand capability (Isccr): 50 kA
• Response time: <25 ns
• Operating temperature: -40 to +80 °C
• Degree of protection: IP20
• Standards: IEC/EN 61643-11

Recommendations

For optimal protection, install this SPD at the main distribution board and ensure proper coordination with downstream Type 3 protectors. Regularly check the status indicator to confirm operational readiness.
