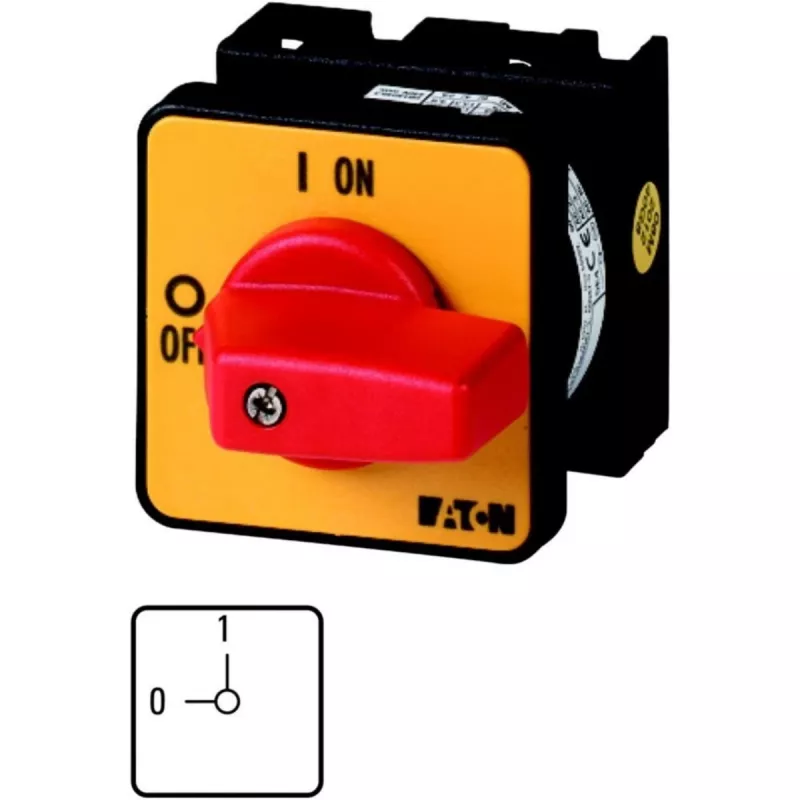

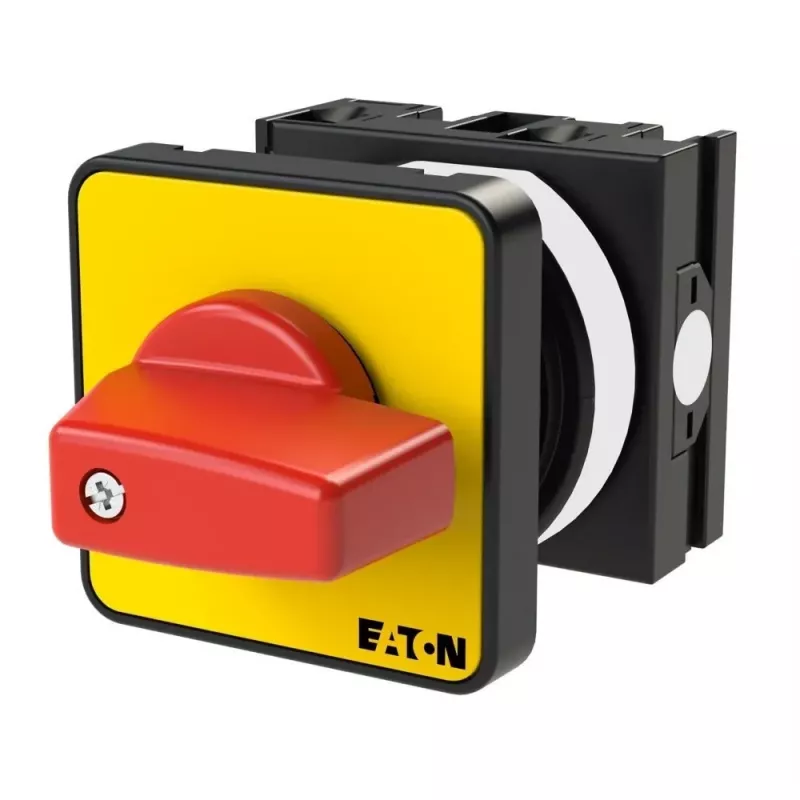

Eaton T0-1-102/E-RT interruptor de cames, bipolar, 20 A, montagem frontal, vermelho/amarelo 009046

On a busy production line, an operator needs to isolate a motor quickly and safely. The Eaton T0-1-102/E-RT cam switch provides a reliable ON-OFF control point, with a lockable red/yellow handle for secure maintenance. Its robust construction and clear switching positions make it a trusted component in industrial control panels.

Key specifications

• Product type: Cam switch
• Switching function: ON-OFF
• Number of poles: 2
• Switching program: 102
• Rated uninterrupted current (Iu): 20 A (AC-21A, 400 V)
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit current (Icw): 0.32 kA (1 s)
• Degree of protection (front): IP65
• Mounting type: Front mounting
• Handle colour: Red/Yellow
• Handle type: Lockable (padlock not included)
• Switching angle: 90°
• Number of switching positions: 2 (0-1)
• Terminal type: Screw terminals
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Rated power (AC-23A, 400 V): 5.5 kW
• Rated current (AC-23A, 400 V): 13.2 A
• Front plate dimensions: 48 x 48 mm

Why choose it

This cam switch is built for demanding industrial environments. The IP65 front protection guards against dust and water jets, while the lockable handle in red/yellow provides clear visual status and prevents unauthorized operation. With a 20 A rating and compliance to international standards, it ensures safe and reliable switching for motors and other loads.

Ideal use cases

• Motor control circuits in manufacturing equipment
• Maintenance switches for machinery isolation
• Control panels requiring robust ON-OFF switching
• Applications needing padlockable handles for safety lockout

Good to know

The switch mounts on a standard 48 x 48 mm front plate cut-out and connects via screw terminals. It operates reliably in temperatures from -25 °C to +50 °C, making it suitable for a wide range of industrial settings. A padlock is not included, but the handle is designed to accept one for lockout/tagout procedures.
