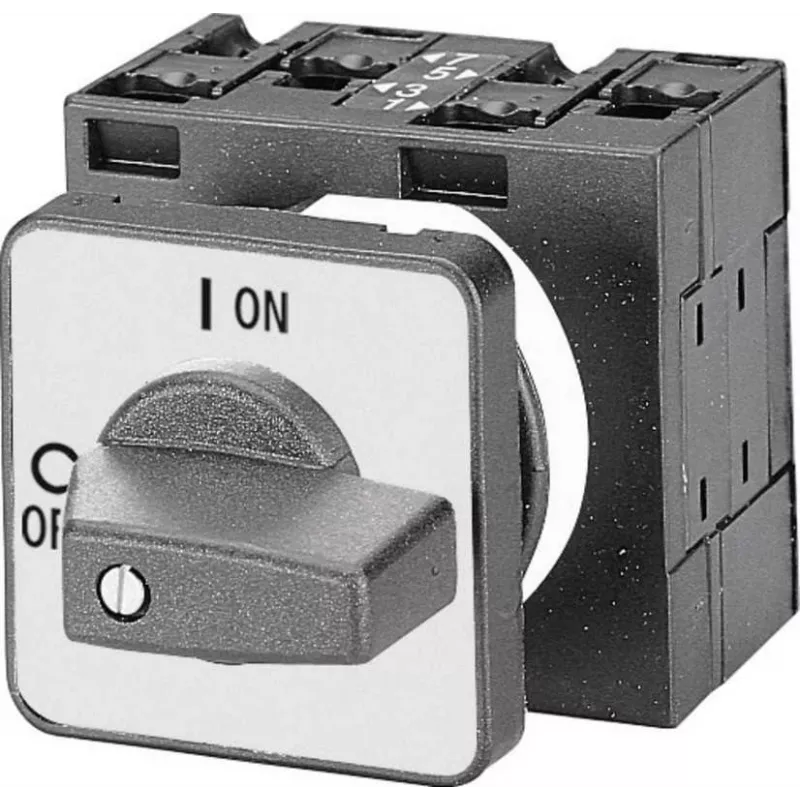

Eaton T0-1-8200/E interruptor de cames 90° unipolar 20 A, cinzento/preto 67352

In industrial control panels and machine tool applications, reliable manual switching is essential for safe operation and maintenance. The Eaton T0-1-8200/E cam switch delivers exactly that, offering a robust ON/OFF function with a 1-pole 90° switching angle. Rated for 20 A operational current and up to 690 V, it is built to handle demanding electrical loads while providing clear visual and tactile feedback. The front plate measures 48 x 48 mm, fitting standard panel cutouts, and the grey handle with black front plate ensures visibility and intuitive operation.

Key specifications

• Rated operational current (Ie): 20 A
• Number of poles: 1
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Switch function: ON/OFF switch, main switch
• Mounting type: front mounting, panel mounting
• Degree of protection: IP65 (front), IP20 (terminals)
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Terminal type: screw terminals
• Colour: grey handle / black front plate
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Electrical life: 0.5 x 10⁶ operations
• Mechanical life: 3 x 10⁶ operations
• Front plate dimensions: 48 x 48 mm
• Rated short-circuit withstand current (Icw): 320 A (1 s)
• Rated operational voltage (Ue): 690 V
• Power dissipation per pole: 0.6 W

Why choose it

This cam switch is engineered for durability and safety in industrial environments. The IP65 front protection guards against dust and water jets, while the screw terminals ensure secure, vibration-resistant connections. With a mechanical life of 3 million operations and an electrical life of 500,000 operations, it offers long-term reliability with minimal maintenance. Compliance with IEC/EN 60947 and VDE 0660 standards means it meets stringent international requirements for low-voltage switchgear.

Ideal use cases

• Machine tool control circuits
• Industrial control panels
• Motor disconnecting applications
• Heating and lighting control
• Any application requiring a robust manual ON/OFF switch

Good to know

The switch is designed for front panel mounting with a standard 48 x 48 mm front plate. It can be used as a main switch or for circuit isolation. The grey handle provides a clear visual indication of the switch position. The compact design allows for space-saving installation in crowded panels. Ensure proper torque on screw terminals to maintain reliable connections over the product's lifespan.
