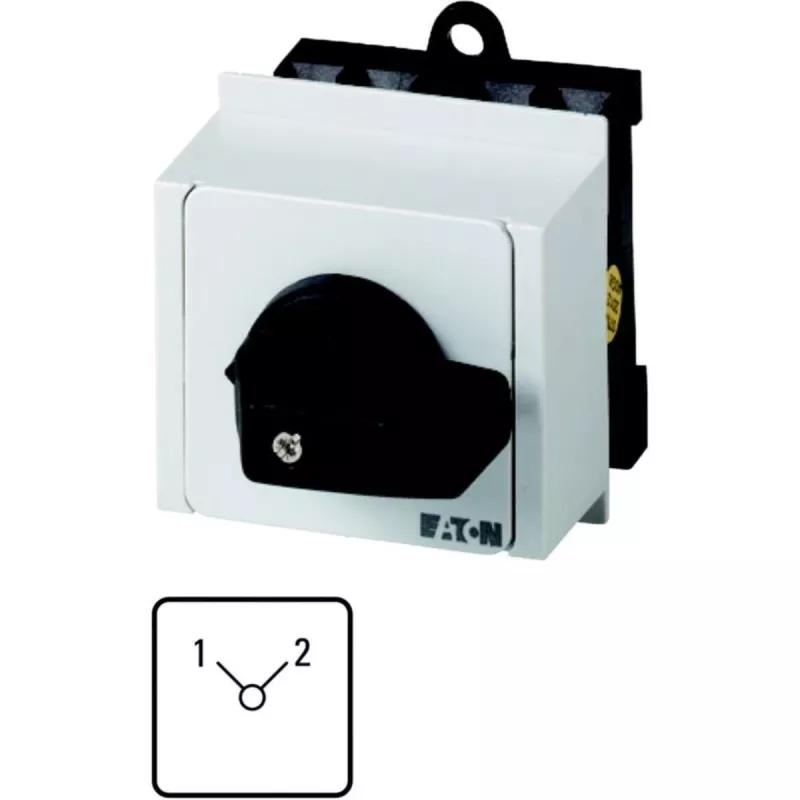

Eaton T0-3-8222/IVS interruptor de cames 3 polos, 20A, preto/branco 060205

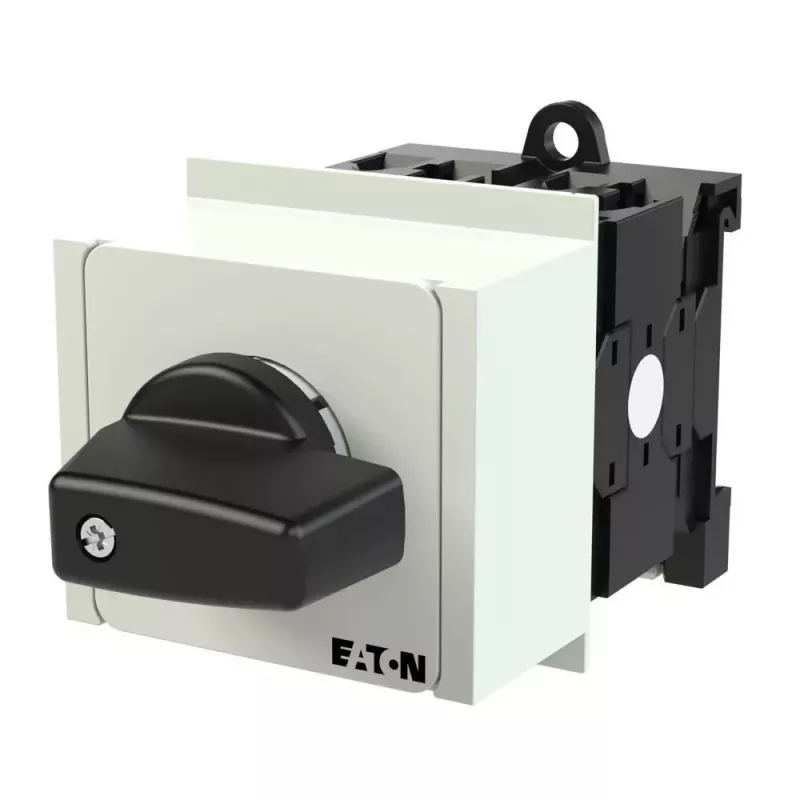

The Eaton T0-3-8222/IVS is a 3-pole cam switch designed for reliable manual switching of three-phase circuits. Its 90° rotary action provides a clear ON-OFF operation, while the black handle and white front plate offer a classic, high-visibility control interface.

Highlights

• 3-pole switching for three-phase applications
• Rated operational current of 20 A (AC-21A, 500V)
• Rotary handle with 90° switching angle
• Flush mounting for panel installation
• IP65 front protection for demanding environments

In daily use

This cam switch is suited for manual control of motors, heaters, and other three-phase loads. The screw terminals ensure secure wiring, and the front-mounted design simplifies installation in control panels or enclosures. With an operating temperature range of -25 to +50 °C, it performs consistently in industrial settings.

Full specifications

• Switch type: Cam switch
• Number of poles: 3
• Rated operational current (Ie): 20 A (AC-21A, 500V)
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational voltage (Ue): 690 V
• Switching angle: 90°
• Switching positions: 2 (ON-OFF)
• Actuator type: Rotary handle
• Handle color: Black
• Front plate color: White
• Mounting type: Flush mounting (front mounting)
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Terminal type: Screw terminals
• Operating temperature range: -25 to +50 °C
• Standard compliance: IEC/EN 60947, VDE 0660
• Series: T0

Final note

A robust and straightforward cam switch for manual three-phase control, built to Eaton's T0 series standards.
