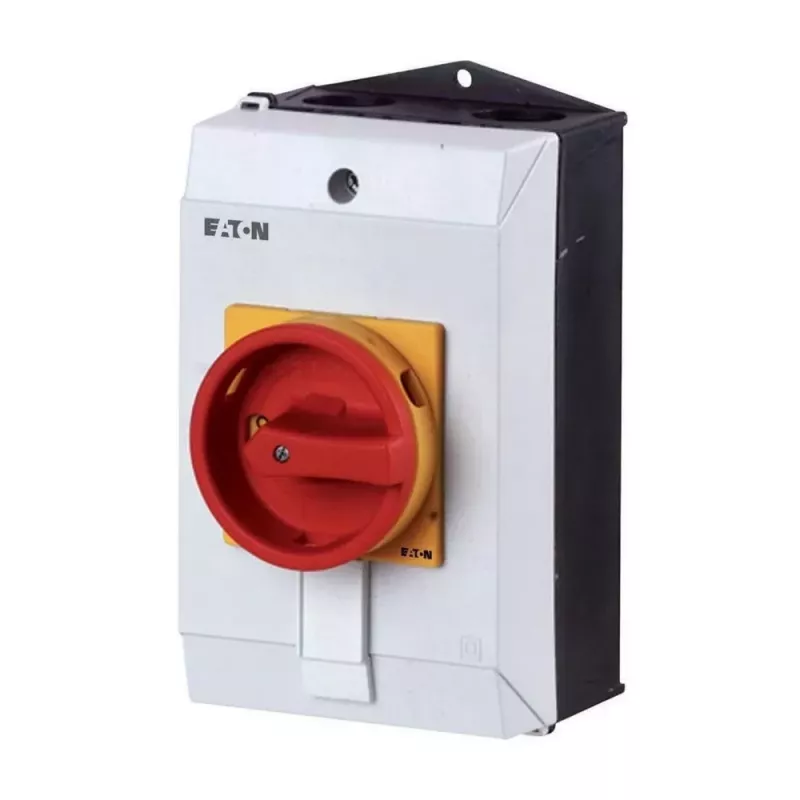

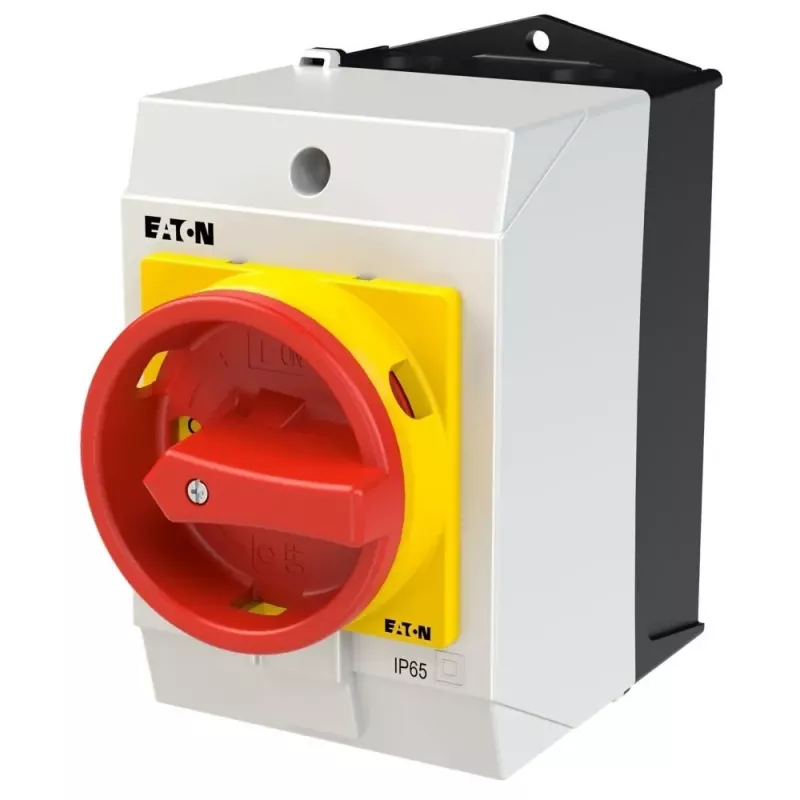

Eaton T0-4-15682/I1/SVB interruptor de came 6 polos 20A 690V AC com manípulo vermelho/amarelo 207161

Industrial electricians and panel builders use the Eaton T0-4-15682/I1/SVB cam switch to control three-phase circuits in machine tools, conveyor systems, and motor control centers. This 6-pole switch handles up to 20 A at 690 V AC, making it suitable for main and maintenance switching in industrial installations.

Key specifications

• Switch type: Cam switch / Main switch
• Number of poles: 6
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Actuator type: Rotary handle
• Handle colour: Red/Yellow
• Mounting type: Front mounting (screw fixing)
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Terminal type: Screw terminals
• Switching angle: 90°
• Switching program: 15682
• Rated power (AC-23A, 400V): 5.5 kW
• Rated power (AC-3, 400V): 3 kW
• Operating temperature range: -25 to +50 °C
• Short-circuit withstand current (Icw): 320 A (1s)

Why choose it

The red/yellow rotary handle provides clear visual status indication, and the front IP65 rating allows installation in dusty or washdown environments. Screw terminals ensure secure, maintenance-friendly connections.

Ideal use cases

• Main switch for machine control panels
• Motor disconnecting in industrial equipment
• Heating and lighting circuit control

Good to know

The switch complies with IEC/EN 60947 and VDE 0660. Its compact front mounting design fits standard panel cutouts, and the 90° switching angle provides positive make/break operation.
