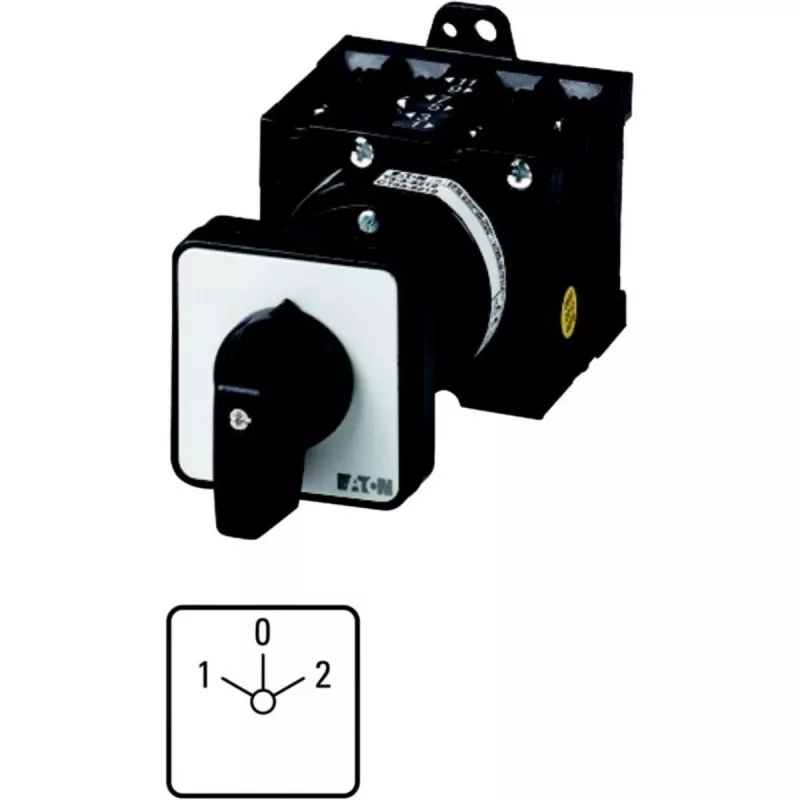

Eaton T3-3-8401/Z interruptor de cames tripolar, 32 A, 690 V AC, IP65, preto/prateado 035739

Rated at 32 A and 690 V AC, this Eaton T3-3-8401/Z cam switch delivers uncompromising performance for demanding industrial control. The 3-pole main switch handles up to 15 kW (AC-23A, 400 V) and 11 kW (AC-3, 400 V), making it a robust choice for motor and power circuit isolation.

Overview

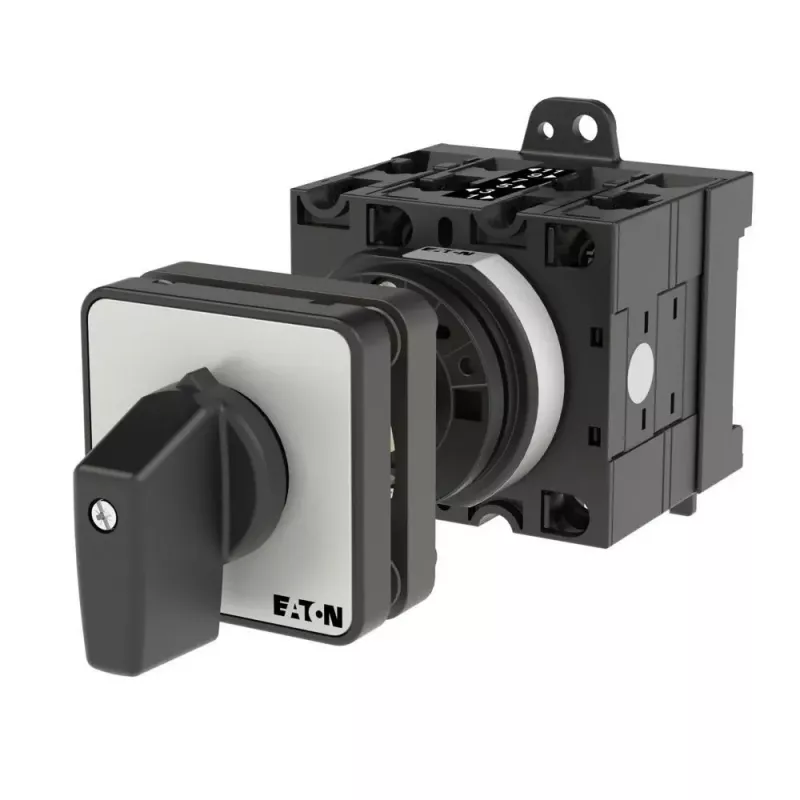

Engineered for front or central mounting, the switch features a 90° switching angle with two clear ON-OFF positions. The black actuator contrasts sharply with the silver metallic front plate, ensuring visibility and ease of operation. Screw terminals provide secure, maintenance-friendly connections.

What stands out

• IP65 front protection guards against dust and water jets, while IP20 terminals keep wiring safe.
• Rated impulse withstand voltage of 6 kV and short-circuit current of 0.64 kA (1s) ensure resilience.
• Operates reliably in ambient temperatures from -25°C to +50°C.
• Complies with IEC/EN 60947, meeting international safety and performance standards.

Technical details

• Switch type: Cam switch / main switch
• Number of poles: 3
• Rated uninterrupted current (Iu): 32 A
• Rated operational voltage (Ue): 690 V AC
• Rated operational power AC-23A (400 V): 15 kW
• Rated operational power AC-3 (400 V): 11 kW
• Switching angle: 90°
• Number of switching positions: 2 (ON-OFF)
• Mounting type: Front mounting, central mounting
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Actuator colour: Black
• Front plate colour: Silver / metallic
• Connection type: Screw terminal
• Standards: IEC/EN 60947
• Ambient operating temperature: -25 to +50 °C
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit current (Icw, 1s): 0.64 kA

Our verdict

With its high current rating, rugged IP65 front, and compliant design, the Eaton T3-3-8401/Z is a dependable isolation solution for industrial panels and machinery.
