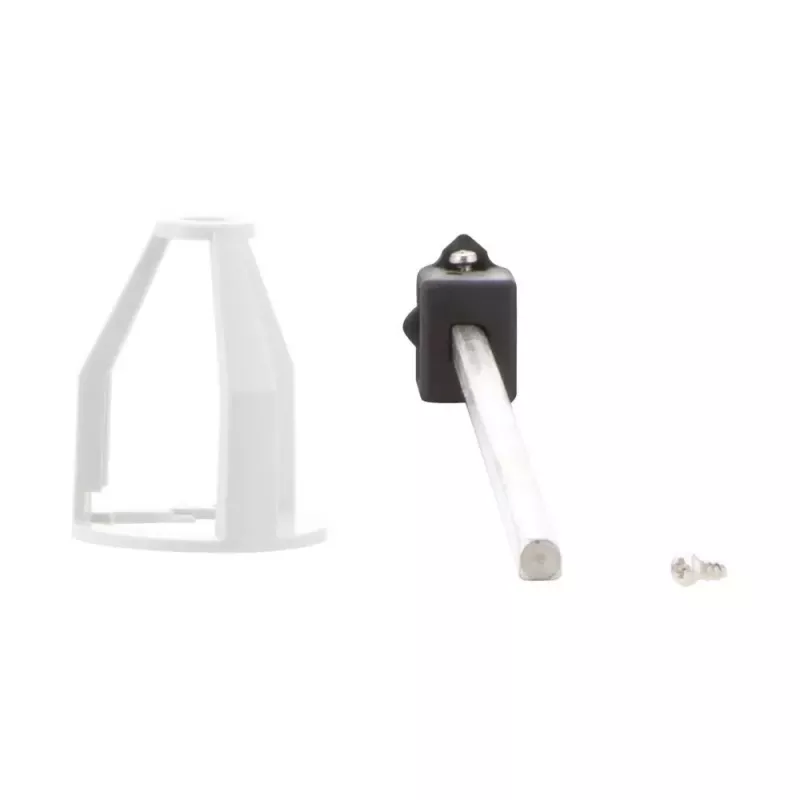

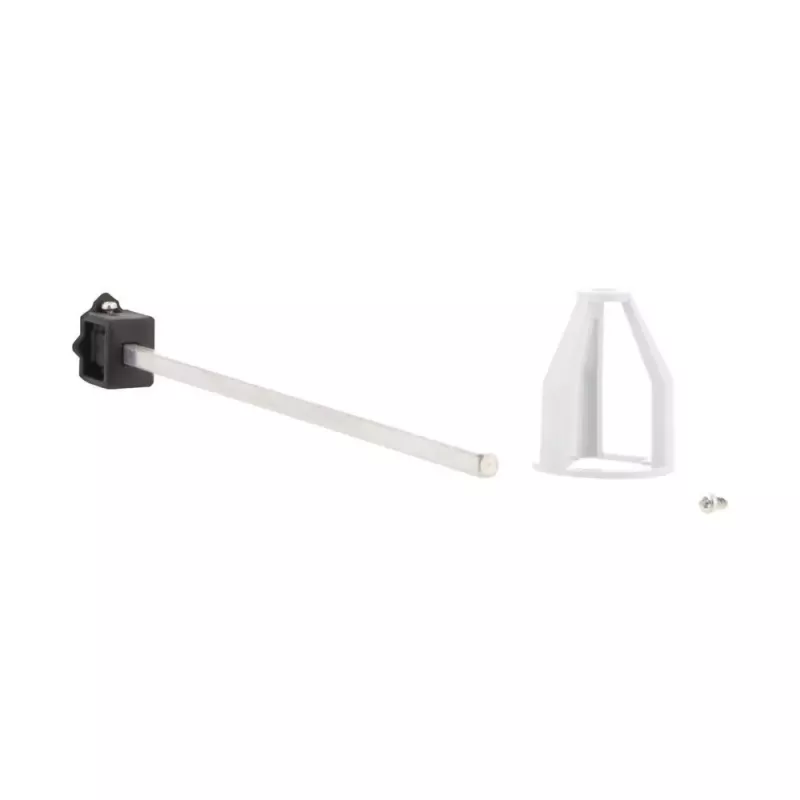

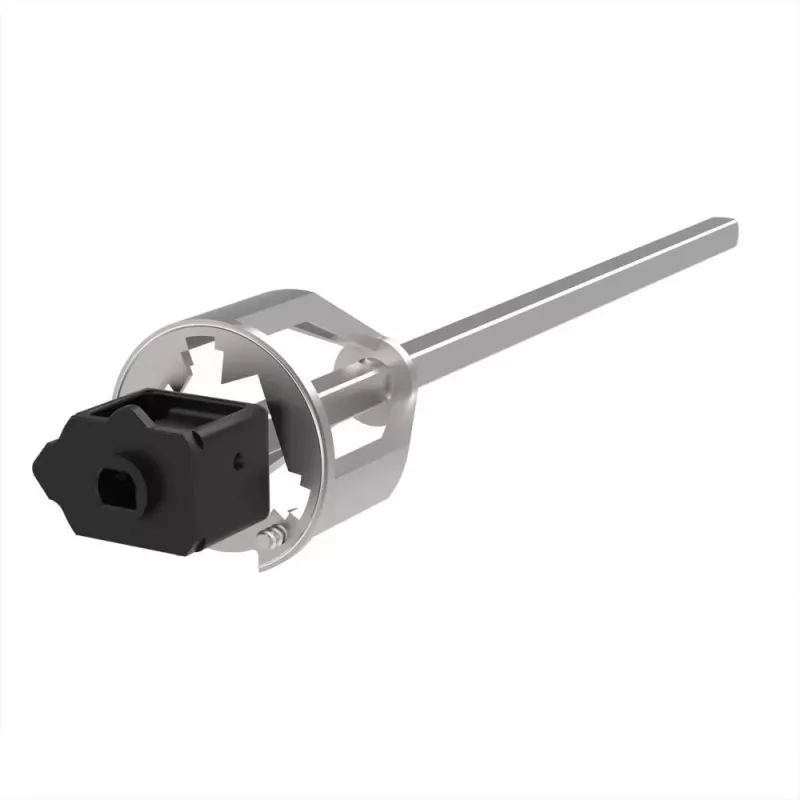

Eaton veio de extensão 5 mm x 178 mm PKZ0-XAH 106134

When rotary operating mechanisms for Eaton PKZ0 motor protective circuit breakers need to be extended through cabinet doors or panels, the standard shaft often falls short. This extension shaft bridges that gap, enabling reliable operation from the outside.

Who is it for

Panel builders, maintenance technicians, and industrial electricians who install or retrofit Eaton PKZ0 circuit breakers with rotary handles in enclosures.

Main features

• Precision 5 mm diameter shaft for secure fit with rotary mechanisms
• 178 mm length extends through standard panel depths
• Metal construction for durability in industrial environments
• Direct compatibility with Eaton PKZ0 series accessories

Specifications

• Product Type: Extension Shaft
• Series: PKZ0
• Shaft Diameter: 5 mm
• Shaft Length: 178 mm
• Material: Metal
• Colour: Metallic
• Quantity per Pack: 1

Tips

Verify the required shaft length by measuring the distance from the breaker's rotary mechanism to the outer door surface. For longer distances, multiple shafts can be coupled with suitable connectors.
