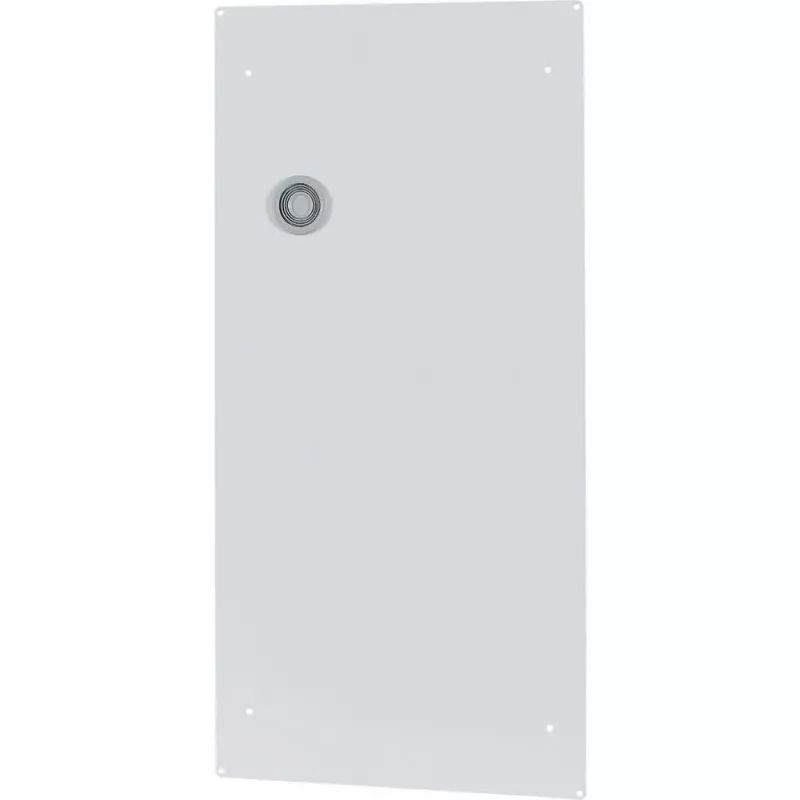

Eaton VS4-STEEL-KLV moldura de proteção de reboco, 4 filas, aço, zincado 191063

During construction and plastering, distribution boards are exposed to dust, paint, and debris that can damage components and compromise safety. The Eaton VS4-STEEL-KLV plaster protection frame is a galvanized steel cover that shields 4-row KLV series distribution boards from contamination while allowing easy access for wiring and installation.

Who is it for

Electricians and contractors working on new builds or renovations who need to protect flush-mounted Eaton KLV distribution boards during the rough-in phase.

Main features

• Designed for 4-row Eaton KLV series distribution boards
• Galvanized steel construction for durability
• Clip-on mounting for quick installation and removal
• Prevents ingress of plaster, paint, and debris
• Flush-mount design compatible with standard enclosure dimensions

Specifications

• Material: Steel
• Number of rows: 4
• Mounting type: Flush-mount
• Compatible series: Eaton KLV
• External dimensions (H x W x D): 705 x 305 x 15 mm
• Weight: 0.51 kg

Tips

Install the protection frame immediately after mounting the enclosure and keep it in place until all plastering and painting is complete. Remove it before final trim-out to avoid scratching the frame.
