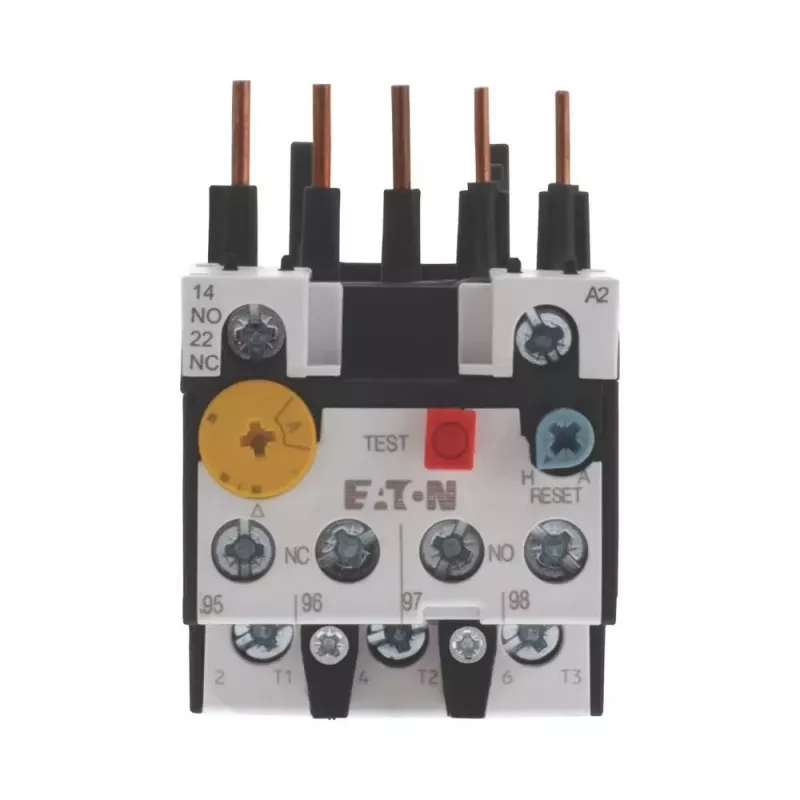

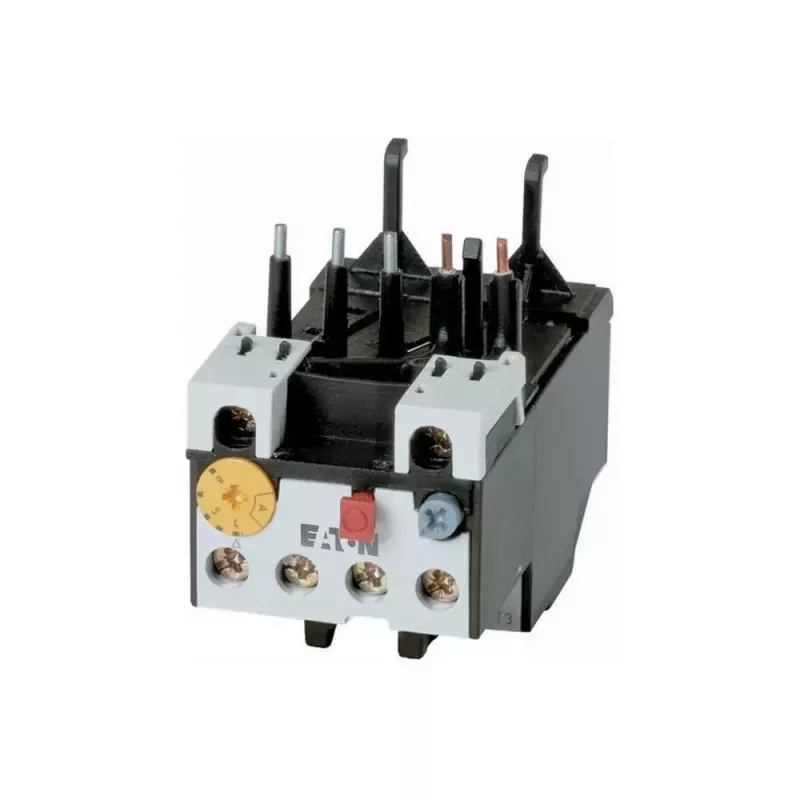

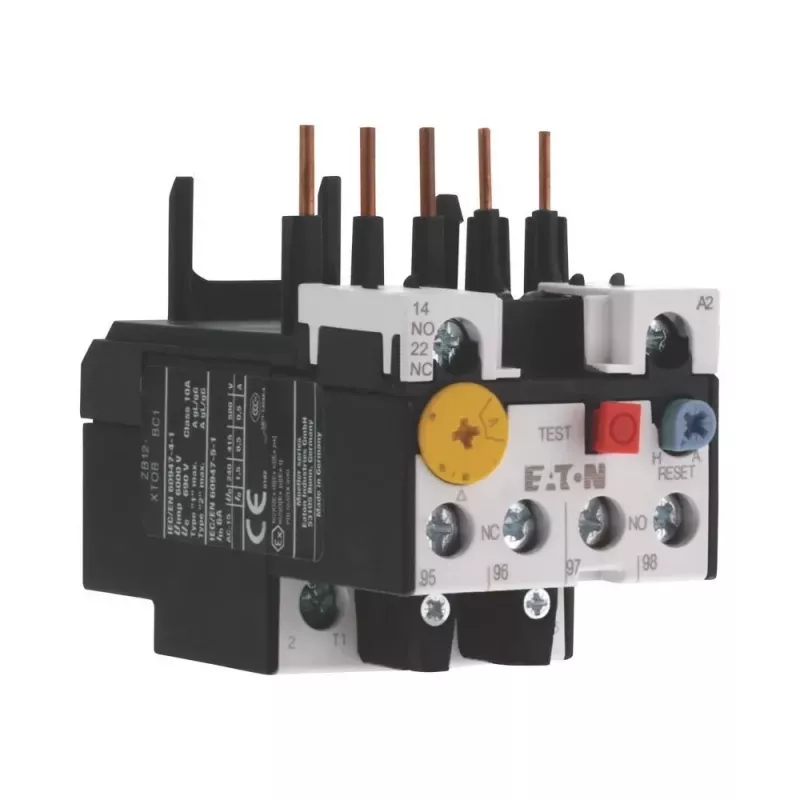

Eaton ZB12-16 Relé térmico de sobrecarga, 12-16 A, 600 V AC, 3 polos, classe 10A, terminais de parafuso, preto/branco 290168

Thermal overload relay for motor protection, adjustable from 12 to 16 A, with direct or stand-alone mounting and screw terminals.

Advantages

Manual/automatic reset, 1 N/O and 1 N/C auxiliary contacts, and a wide operating temperature range from -25 to +55 °C.

Suitable for

• Three-phase motor starters
• Industrial control panels
• Contactor combinations up to 30 A AC-3

Key specifications

• Adjustable current range: 12 - 16 A
• Rated operational voltage: 600 V AC
• Tripping class: 10A
• Wire cross-section: 0.75 - 4 mm²
• Max fuse rating: 150 A gG/gL

Recommendations

Pair with Eaton DILM contactors for a complete motor starter solution.
