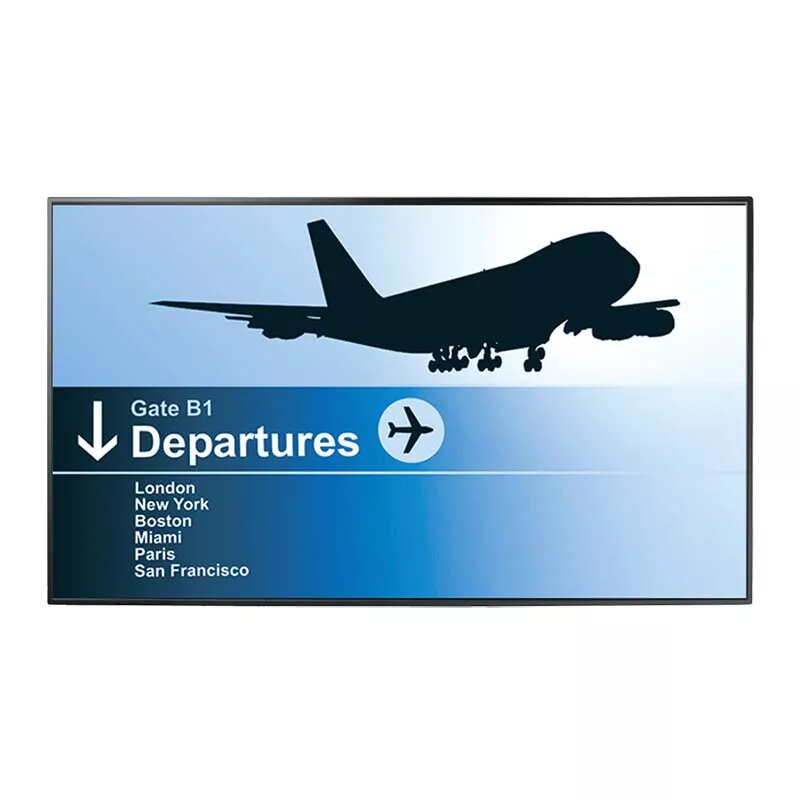

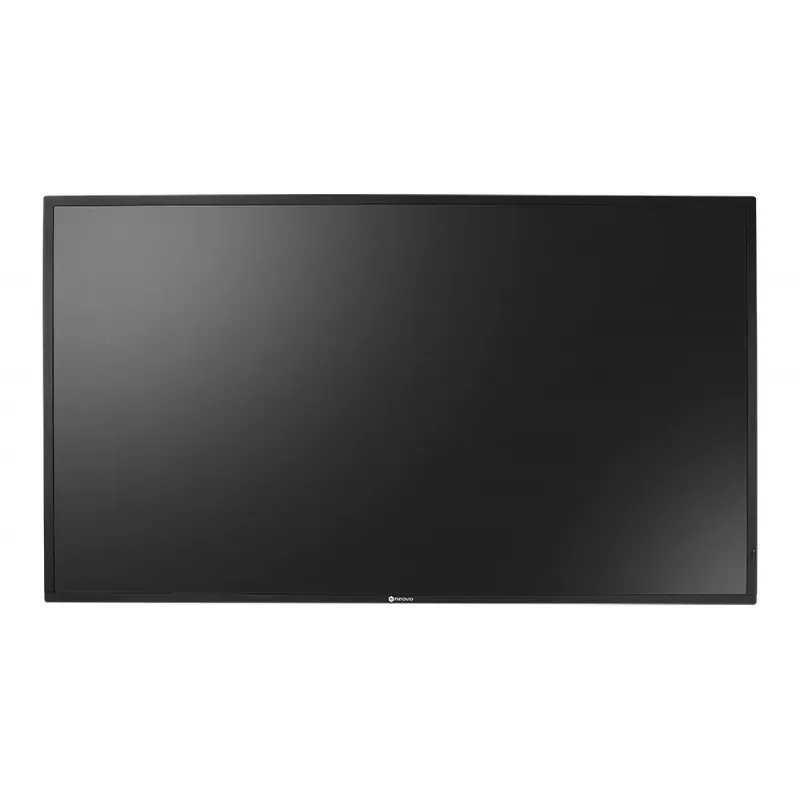

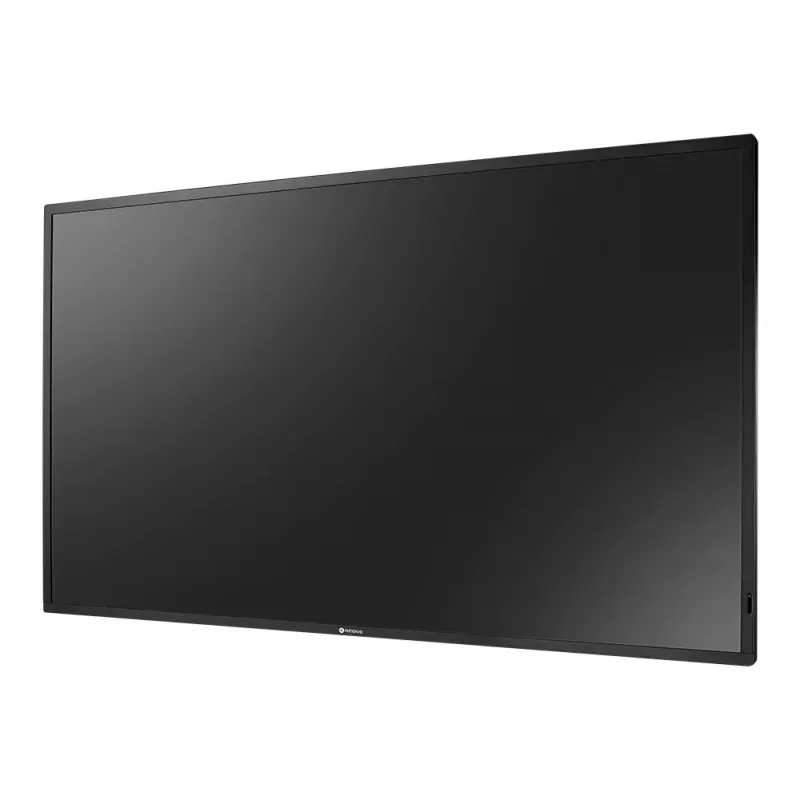

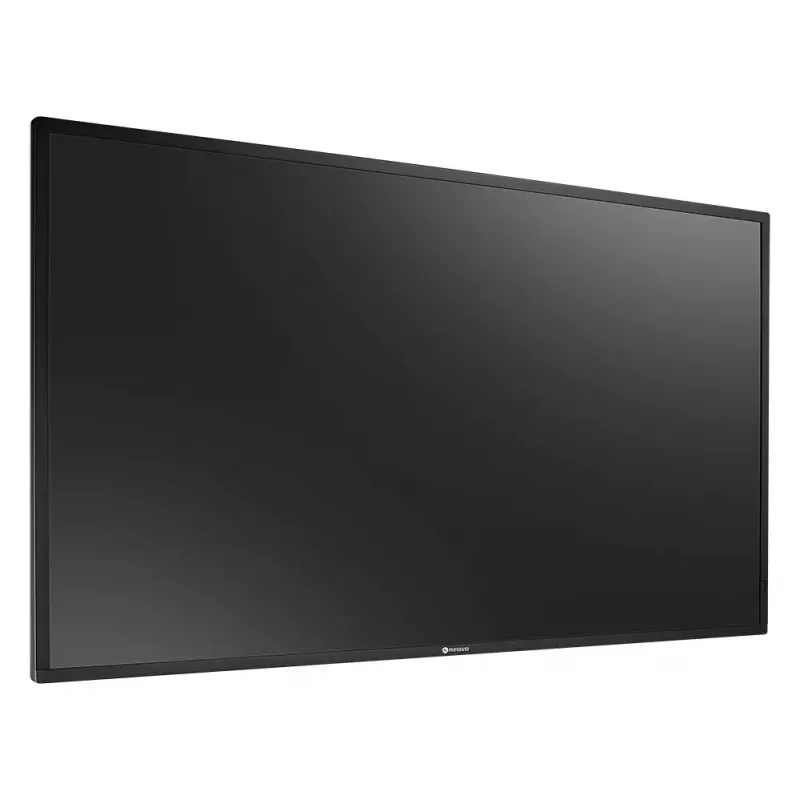

Ecrã comercial AG Neovo 55 polegadas 4K PD55Q011M000

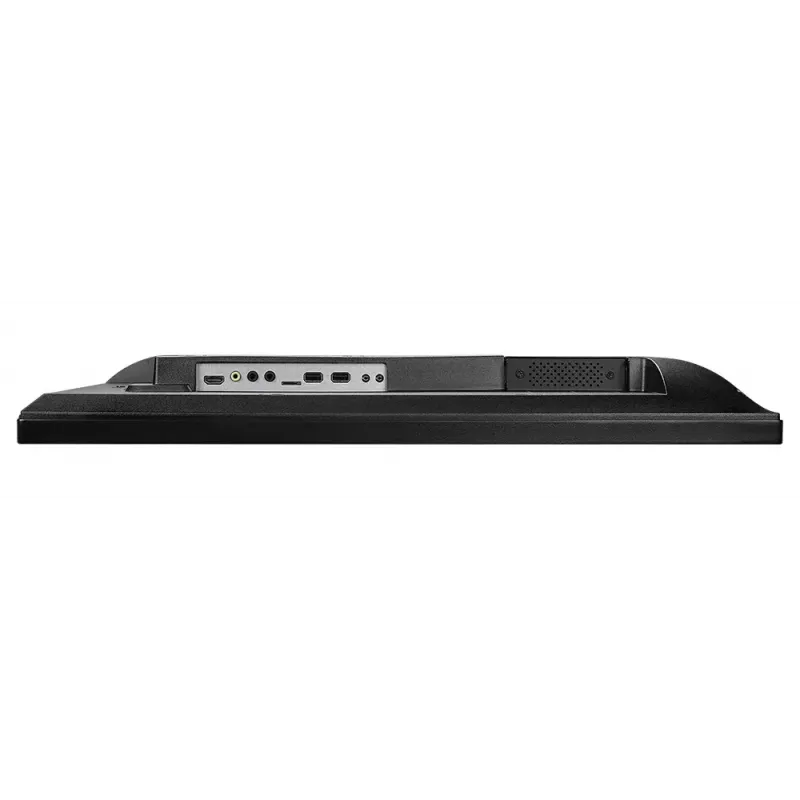

The PD-55Q 55-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and Intel® SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.

700 nits High Brightness

The PD-55Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the display adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.

IPS Panel for 24/7 Use

Designed for 24/7 operation, the PD-55Q display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.

Landscape/Portrait Capability

The commercial-grade signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.

Optional Intel® SDM Capability

The built-in SDM slot is designed for Intel® smart display module, which is ready to create powerful smart signage for more user-friendly applications.

DisplayPort/IR/RS232 Daisy Chain Functionality

With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo’s large format displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.

Embedded Image Enhancer

The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.

Integrated Content Scheduler

The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.

Patented Anti-Burn-in™ Technology

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.

PID Command & Ctrl Software

PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.

AG Neovo 55-Inch 4K Commercial Display. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

How to use

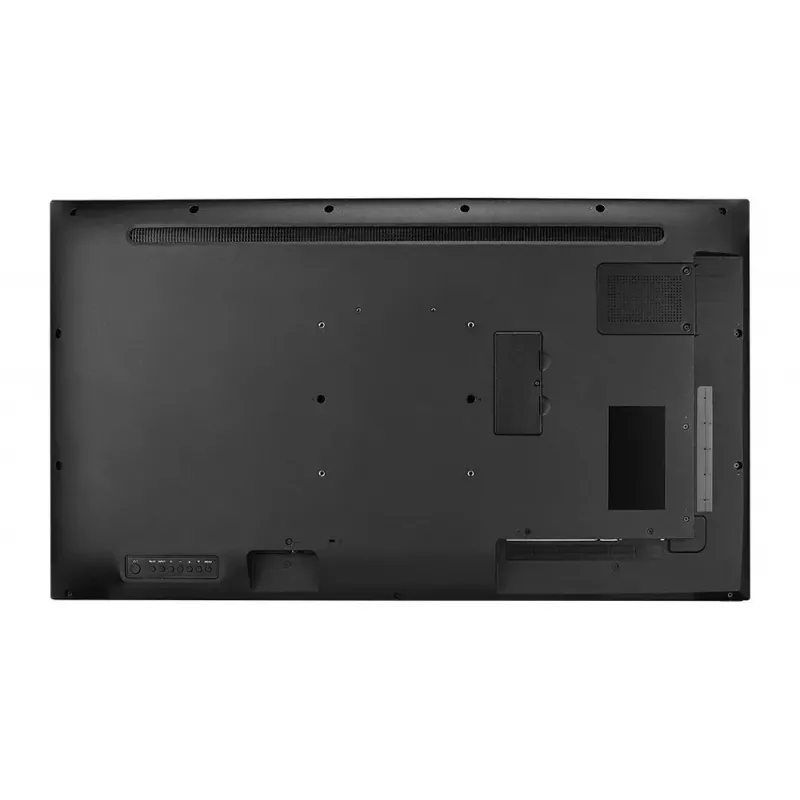

Install the display using the compatible VESA mount or free-standing bracket and choose landscape or portrait orientation as required. Connect your content sources via HDMI, DisplayPort, USB or optional SDM module. For multi-display setups, use DisplayPort daisy chaining and configure IR/RS232 loop-through to centralize control. Use the embedded USB playback or schedule content through the on-screen integrated scheduler accessed from the OSD menu or control remotely with PID Command & Ctrl software.

Recommendations

Place the PD-55Q where high brightness is needed and ensure adequate ventilation for continuous 24/7 operation. Use the Anti-Burn-in™ features and vary displayed content to minimise static image retention. For large installations, calibrate colour and monitor temperature and runtime using PID Command & Ctrl for reliable long-term performance.
