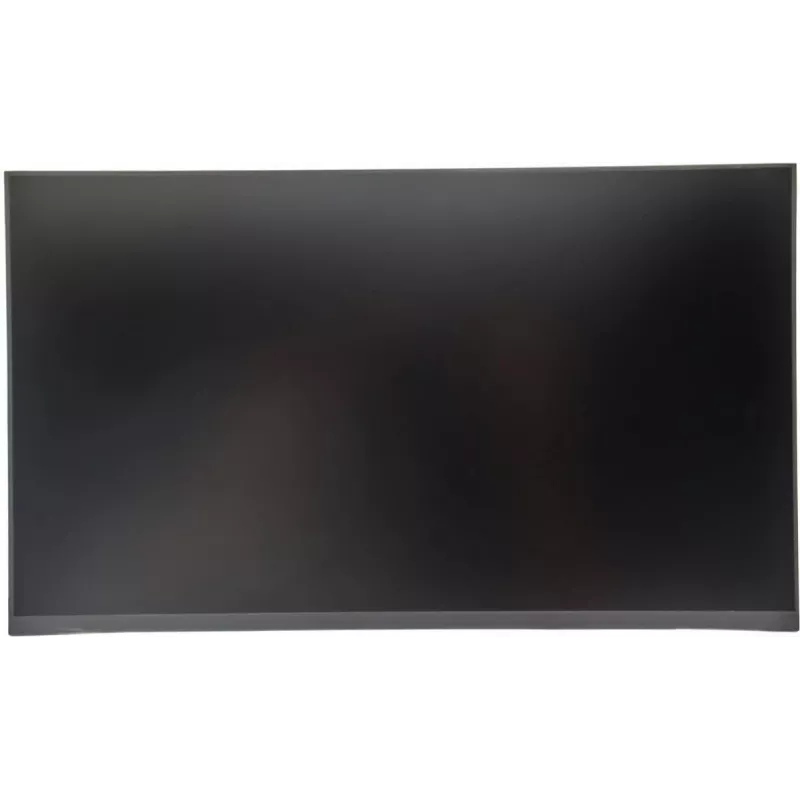

Ecrã de substituição Lenovo 14 polegadas Full-HD 5D11L93162

Replacement LCD display Lenovo 14-inch Full HD replacement screen 5D11L93162 is a 14.0-inch, 1920×1080 resolution panel intended to restore the visual performance of compatible Lenovo laptops. This Full HD display replaces a worn, damaged or malfunctioning screen to return the device to native resolution and expected brightness. The module is designed to match the original panel size, mounting points and connector orientation for straightforward installation where the original panel type is the same.

Advantages

The replacement panel provides a Full HD (1920×1080) pixel matrix for crisp text and clearer images compared with lower-resolution alternatives. It is sized to fit 14‑inch laptop housings and maintains the original screen aspect ratio and viewing angles. The panel supports standard laptop brightness and color reproduction characteristics for everyday productivity, web browsing and media playback. Where the original unit featured touch capability or an IPS-type panel, the compatible replacement restores touch response and wide viewing angles when the specific model supports those features.

Suitable for

• Repairing a cracked, unresponsive or dim 14-inch Lenovo laptop screen
• Upgrading from a lower-resolution display to Full HD for improved sharpness
• Replacing a screen after accidental damage or backlight failure
• Service and refurbishment of compatible Lenovo notebook models using the same panel type

Key specifications

• Diagonal size: 14.0 inches
• Native resolution: 1920 × 1080 (Full HD)
• Aspect ratio: 16:9
• Panel type: standard laptop LCD (compatible with models that originally used this panel type)
• Backlight: LED
• Connector: standard laptop interface matching original panel orientation and pin layout
• Finish: matte or gloss depending on the original model’s specification

How to use

Before installation, power off the laptop, disconnect the battery if possible, and place the device on a soft, static-free surface. Remove the bezel or top cover according to the laptop manufacturer’s service instructions to access the screen assembly. Disconnect the old panel from the video connector and any inverter or cable assemblies, then remove fastening screws and lift out the damaged display. Fit the replacement panel into the same mounting points, secure with screws and reconnect the display cable, ensuring the connector is fully seated. Reassemble the bezel, reconnect the battery and power on the device to verify image output and alignment. If touch functionality is present, check touch response and calibrate if required by the operating system.

Recommendations

Handle the replacement LCD with care to avoid pressure marks and static damage; use an anti-static wrist strap when available, avoid touching the flat cable contacts, and follow Lenovo service guides for torque and screw sequences to prevent frame distortion and ensure proper fitment.
