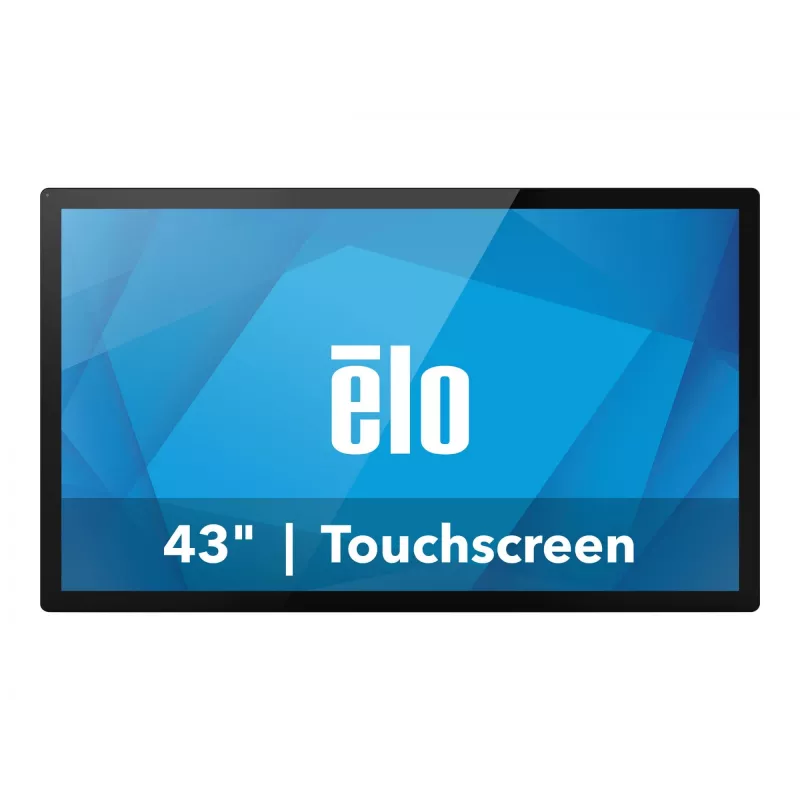

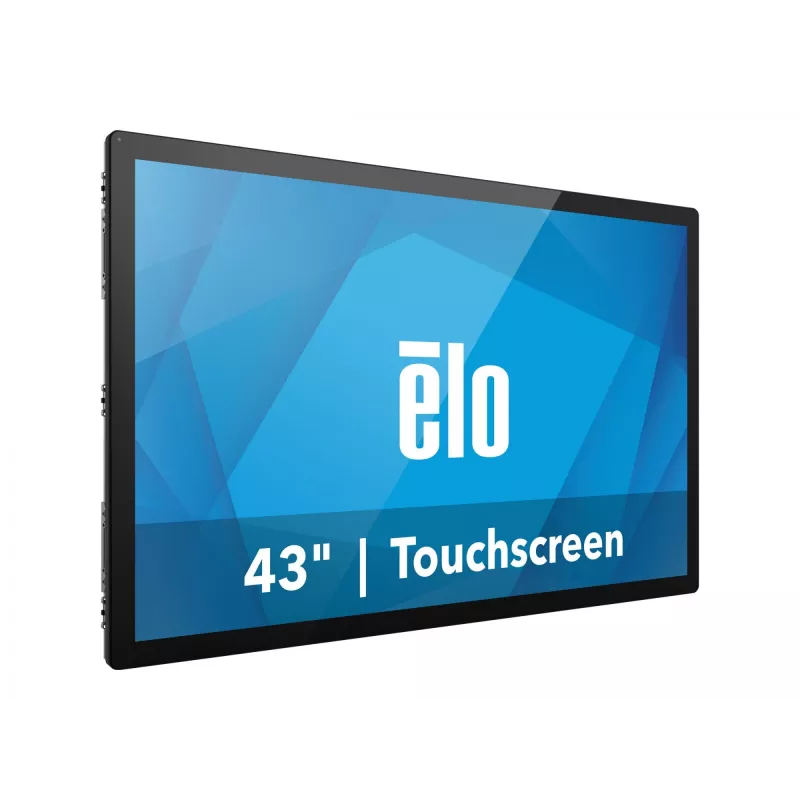

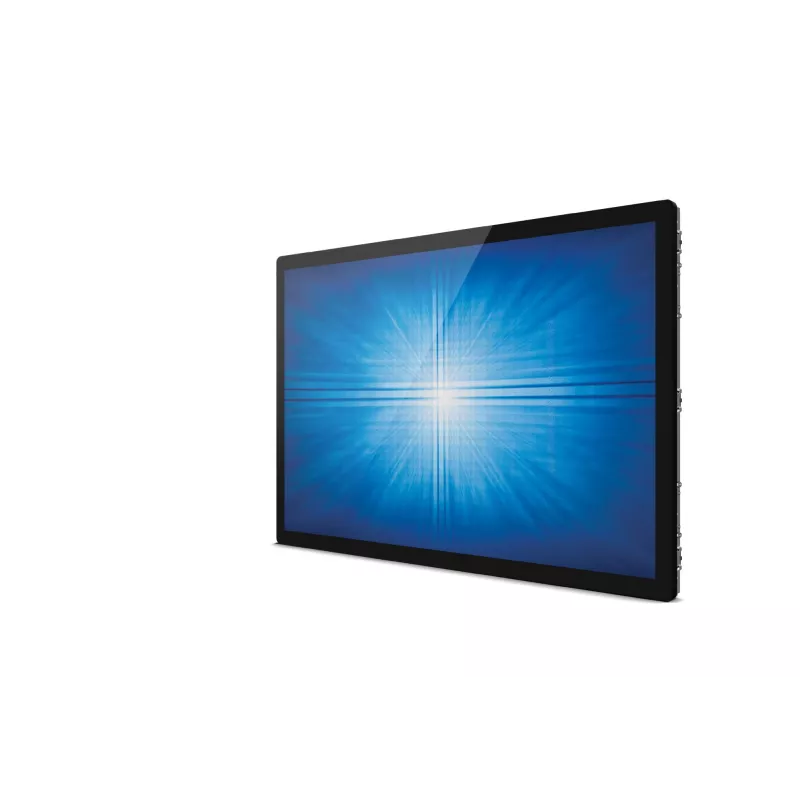

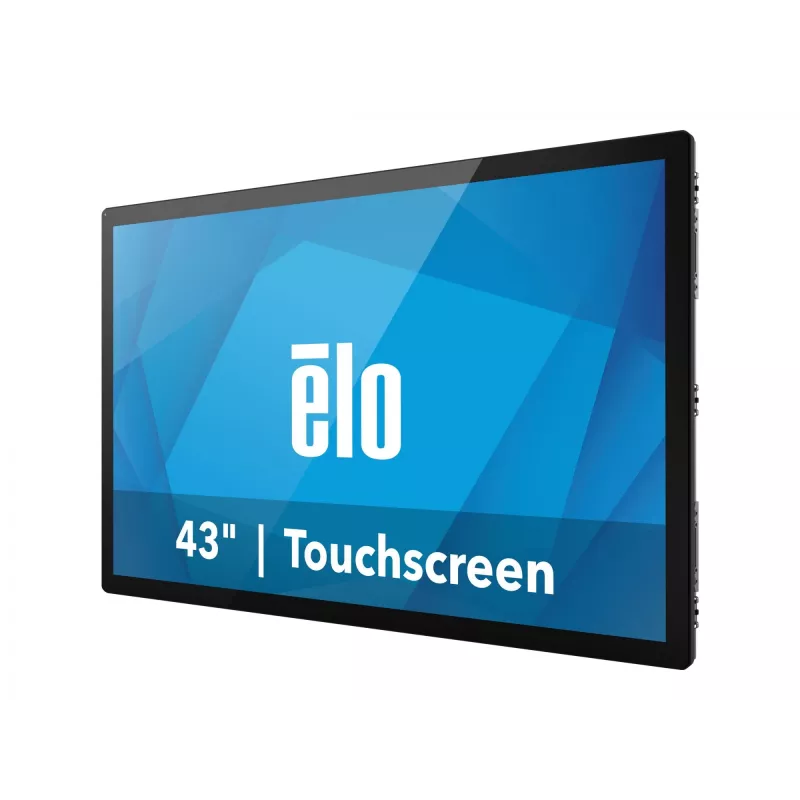

Ecrã Tátil Elo Touch Solutions 4363L 108 cm LED Full HD 450 cd/m² Preto

The Elo 4363L is a 43-inch (42.5") Full HD open-frame touchscreen designed for integration into kiosks, enclosures and industrial panels. It combines a slim form factor with commercial-grade touch performance, offering a bright 1920 × 1080 LED panel with 450 cd/m² and options for anti-glare or anti-friction edge-to-edge glass.

Advantages

The TouchPro projected capacitive (PCAP) touch offers up to 40 simultaneous touch points for a tablet-like, multi-user experience. The display supports installation in landscape, portrait and upward-facing orientations for flexible mounting. Models with touch-thru capability allow the screen to be mounted behind protective layers of glass (up to 6 mm) or plastic (up to 3 mm) for enhanced environmental and vandal protection. The panel provides consistent clarity and viewing angles for close-up or distant use.

Suitable for

• Self-order and self-checkout kiosks
• Interactive wayfinding and information terminals
• Industrial control panels and operator interfaces
• Operating room control boards and medical enclosures
• Any enclosed or freestanding kiosk requiring a full HD touch display

Key specifications

• Screen size: 43-inch (42.5")
• Resolution: Full HD 1920 × 1080
• Brightness: 450 cd/m²
• Touch technology: TouchPro PCAP, up to 40 touches
• Glass options: edge-to-edge anti-glare or anti-friction
• Mounting orientations: landscape, portrait, upward-facing
• Touch-thru support: glass up to 6 mm, plastic up to 3 mm
• Form factor: open-frame for enclosure and kiosk integration

How to use

Install the Elo 4363L into your kiosk or enclosure using the open-frame mounting provisions and choose the required orientation (landscape, portrait or upward-facing). Connect video and touch interfaces according to your system design and select the anti-glare or anti-friction model as needed. For installations requiring an additional protective front, use the touch-thru option and mount the display behind a glass or plastic layer within the specified thickness limits.

Recommendations

For reliable long-term operation, ensure adequate ventilation in enclosed installations, protect connectors from moisture and follow Elo’s integration guidelines for mounting tolerances. When using touch-thru behind protective layers, verify touch responsiveness during installation and test the selected glass or plastic thickness for compatibility with the PCAP model.
