EFB Elektronik Armário de Parede 19 polegadas 20U, 800 mm de Profundidade, pré-montado, RAL 9005 Preto Profundo

Managing network equipment in limited spaces often means compromising on accessibility, security, or cable organization. The EFB Elektronik 19" Wall-Mount Cabinet solves this by providing a robust, pre-assembled enclosure that mounts securely to the wall, freeing up floor space while keeping your 19-inch rack components protected and neatly arranged. With a depth of 800 mm, it accommodates standard servers, switches, and patch panels, making it ideal for small offices, branch locations, or industrial environments where floor space is at a premium.

Who is it for

This cabinet is built for IT administrators, network installers, and facility managers who need a reliable, space-saving solution for housing active and passive network equipment. It suits small to medium businesses, educational institutions, retail back offices, and industrial control rooms where wall mounting is preferred or necessary.

Main features

• 20U of 19-inch rack space, compatible with all standard rack-mount equipment.
• 800 mm external depth provides ample room for deep servers and cable management.
• Pre-assembled construction saves installation time and reduces complexity.
• Durable steel sheet body with powder-coated finish in RAL 9005 jet black for a professional look and corrosion resistance.

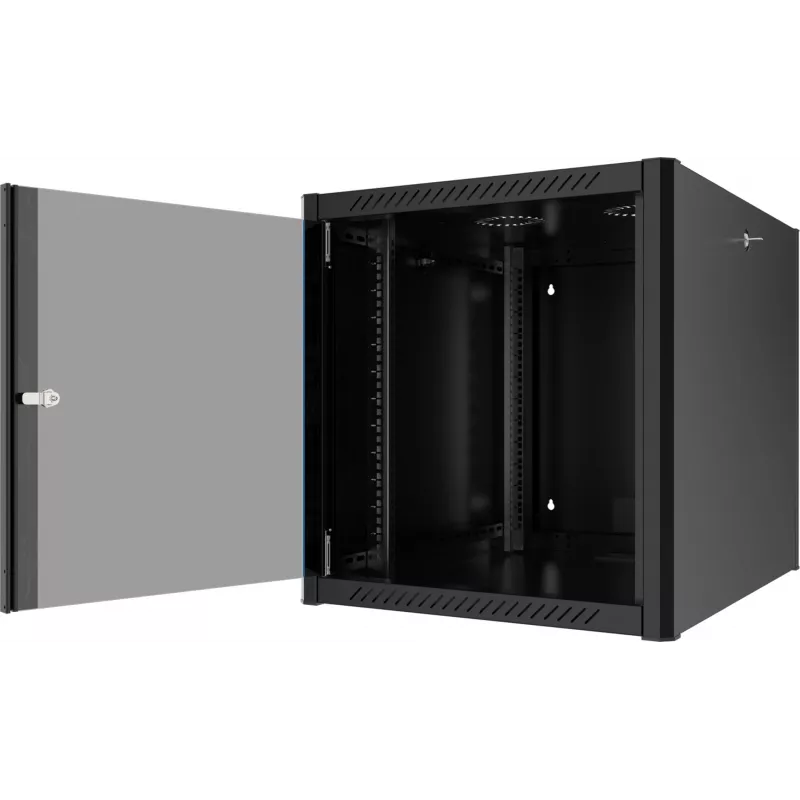

• Lockable safety glass front door with 180-degree opening for easy access and visibility of equipment LEDs.
• Removable, lockable side panels allow convenient maintenance and cable routing.
• Top and bottom cable entry with brush strips to prevent dust and maintain a tidy appearance.
• Passive ventilation with provisions for optional fan units to manage heat in high-density setups.
• Two pairs of depth-adjustable 19-inch mounting profiles for flexible equipment installation.
• Integrated grounding kit ensures electrical safety and compliance.

Specifications

• Enclosure type: Wall-mount cabinet
• Rack standard: 19-inch
• Rack units: 20U
• External depth: 800 mm
• Material: Steel sheet
• Color: RAL 9005 (jet black)
• Assembly status: Pre-assembled
• Front door: Safety glass, lockable, 180° opening
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, optional fan unit provisions
• Mounting profiles: Two pairs, depth-adjustable
• Surface finish: Powder-coated
• Protection rating: IP20
• Mounting type: Wall mounting
• Grounding: Integrated grounding kit
• Compliance: CE, RoHS

Tips

Before installation, verify that the wall can support the fully loaded weight of the cabinet and equipment. Use appropriate anchors and consult a structural engineer if unsure. For optimal thermal performance, consider adding a fan unit if you plan to install high-power switches or servers. Keep the brush strips intact to maintain dust protection and cable organization.
