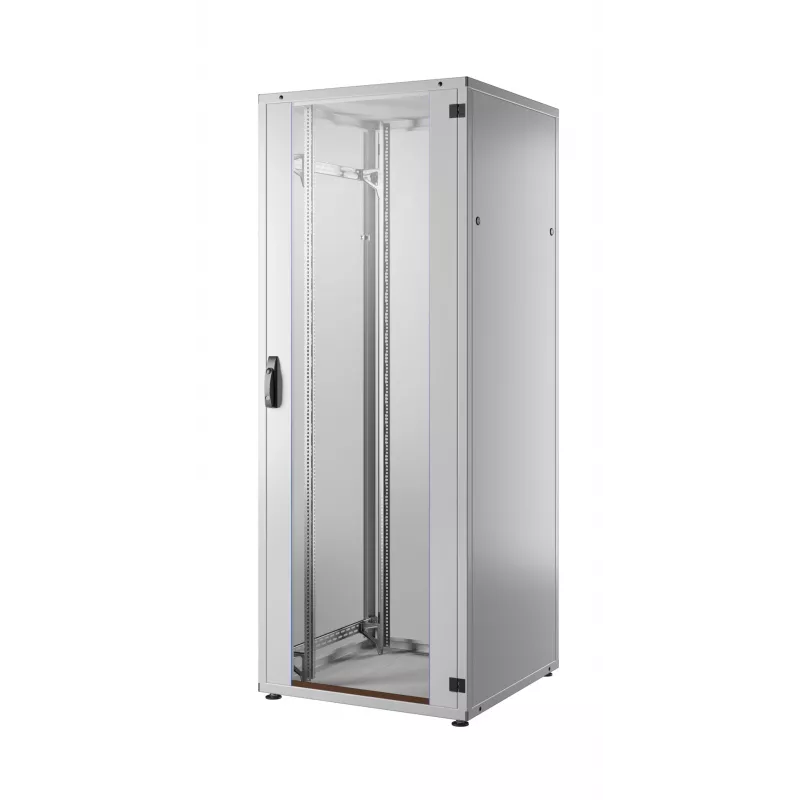

Armário de rede EFB PRO-4288GR.G1S2 42U 19 polegadas, cinzento RAL 7035, 800x800x2000 mm, porta frontal em vidro de segurança

This 42U 19-inch network cabinet from EFB Elektronik offers a robust and secure housing for servers, network equipment, and telecommunications hardware. Its 800 mm width and 800 mm depth provide ample space for high-density installations, while the 2000 mm height accommodates 42 rack units. The tempered glass front door and perforated steel rear door combine security with passive ventilation, and the removable lockable side panels ensure easy access during installation and maintenance. With a static load capacity of 800 kg, this cabinet is built to handle heavy equipment loads.

Advantages

The cabinet's sturdy steel construction and RAL 7035 grey finish blend durability with a professional appearance suitable for data centers and office environments. Adjustable front and rear 19" mounting rails allow flexible equipment positioning, while top and bottom cable entry points with brush strips keep cabling organized and protected. Heavy-duty castors and adjustable leveling feet make positioning and stabilization straightforward, even on uneven floors. The lockable doors and side panels provide physical security, and the pre-assembled design reduces setup time significantly.

Suitable for

• Server rooms and data centers requiring high-density rack space
• Network closets in enterprise and SMB environments
• Telecommunications installations with active equipment
• Industrial settings needing secure, dust-resistant enclosures (IP20)

Key specifications

• Rack units: 42U
• Rack width: 19 inch (483 mm)
• Overall dimensions (W x D x H): 800 x 800 x 2000 mm
• Front door: Tempered glass, lockable
• Rear door: Perforated steel, lockable
• Side panels: Removable, lockable
• Material: Steel
• Color: Grey RAL 7035
• Static load capacity: 800 kg
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive (perforated rear door), provision for active fans
• Mounting rails: Adjustable front and rear
• Feet/castors: Adjustable leveling feet, heavy-duty castors
• Protection class: IP20
• Assembly: Pre-assembled

Recommendations

For optimal airflow, consider installing additional fan units in the top of the cabinet if you populate it with high-heat equipment. Use cable management accessories to keep the interior tidy and maintain proper ventilation. Ensure the floor can support the combined weight of the cabinet and installed equipment.
