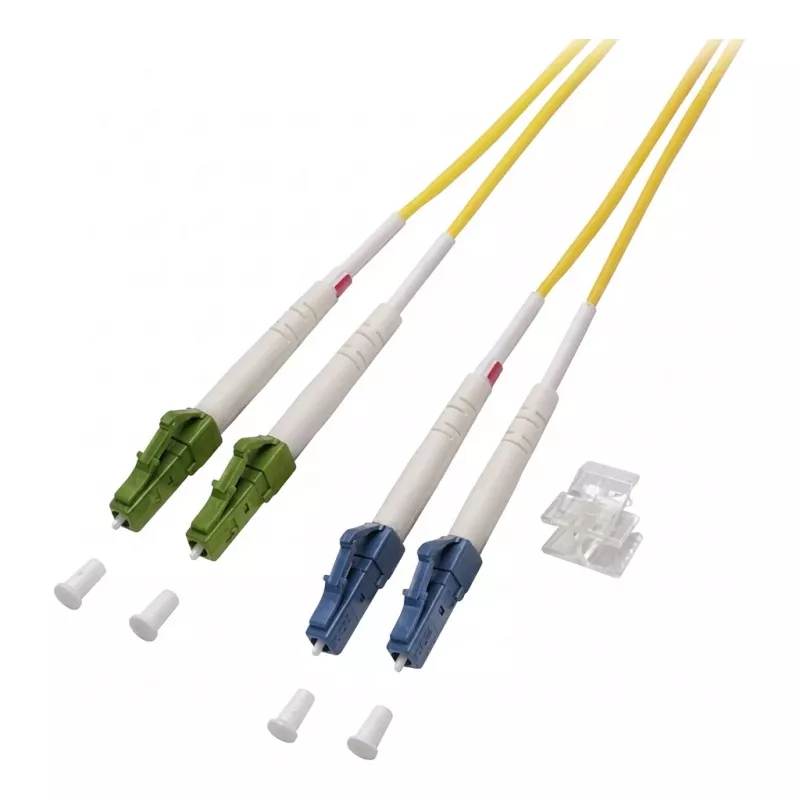

Cabo de patch duplex EFB LC/APC-LC OS2 G652D 1m LSZH 2mm amarelo

The EFB Elektronik fiber optic patch cable is a high-performance duplex singlemode cable designed for reliable data transmission in network infrastructures. With LC/APC connectors on both ends and a length of 1 meter, it ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication applications.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The bend-insensitive fiber (G.657.A1) allows for tight installations without performance degradation. The LSZH jacket ensures safety in enclosed spaces by emitting low smoke and zero halogen in case of fire.

Suitable for

• Fiber-to-the-home (FTTH) networks
• Data centers and server rooms
• Telecommunication and CATV systems
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Fiber Optic Patch Cable, Duplex
• Fiber Mode: Singlemode (9/125 µm)
• Connector: LC/APC to LC/APC
• Length: 1 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.2 dB typical
• Return Loss: ≥60 dB typical
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/APC interfaces and is suitable for both indoor and protected outdoor use.
