EFB Electronics Acoplador de rede SC/APC Monomodo (W)

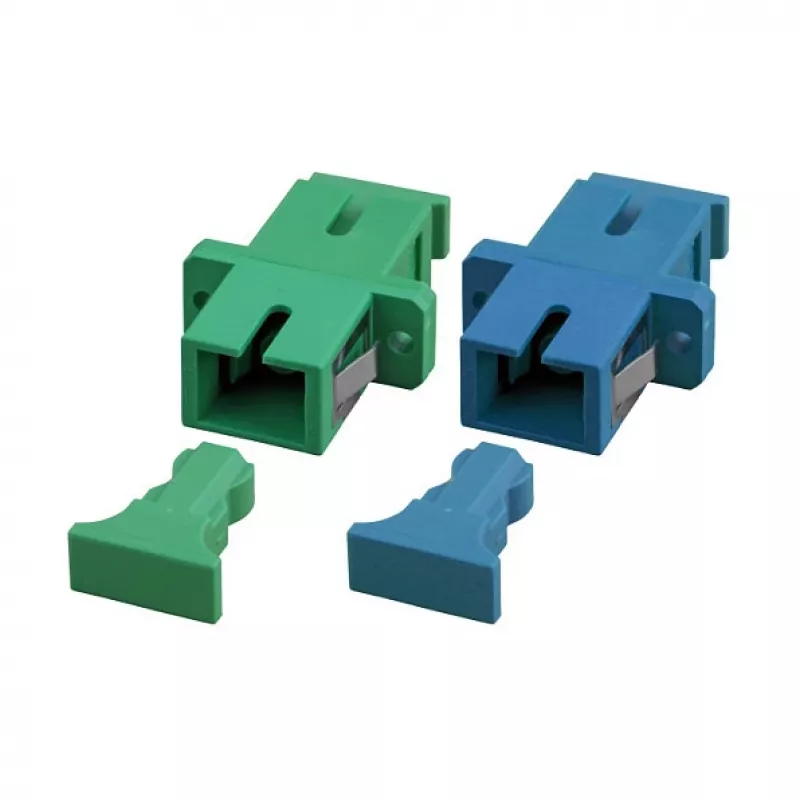

The EFB Electronics Network Coupler SC/APC Single Mode (W) is a high-quality fiber optic adapter designed for reliable single-mode connections. This simplex coupler features SC/APC female connectors on both sides, ensuring low insertion loss and high return loss for optimal signal integrity. Ideal for FTTH, LAN, telecommunications, and data center applications.

Advantages

Low insertion loss (<0.3 dB) and high return loss (>60 dB) ensure excellent performance. Durable zirconia ceramic ferrule and plastic housing provide long-lasting reliability. Flanged design allows easy panel mounting.

Suitable for

• FTTH (Fiber to the Home)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• Data centers

Key specifications

• Product Type: Fiber Optic Coupler / Adapter
• Connector Type: SC/APC Female to SC/APC Female
• Fiber Mode: Single Mode (SM)
• Configuration: Simplex
• Insertion Loss: <0.3 dB
• Return Loss: >60 dB
• Ferrule Material: Zirconia Ceramic
• Housing Material: Plastic
• Mounting Type: Flanged
• Color: Green
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Durability: >500 Mating Cycles
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with single-mode fiber cables and ensure proper cleaning of connectors before mating.
