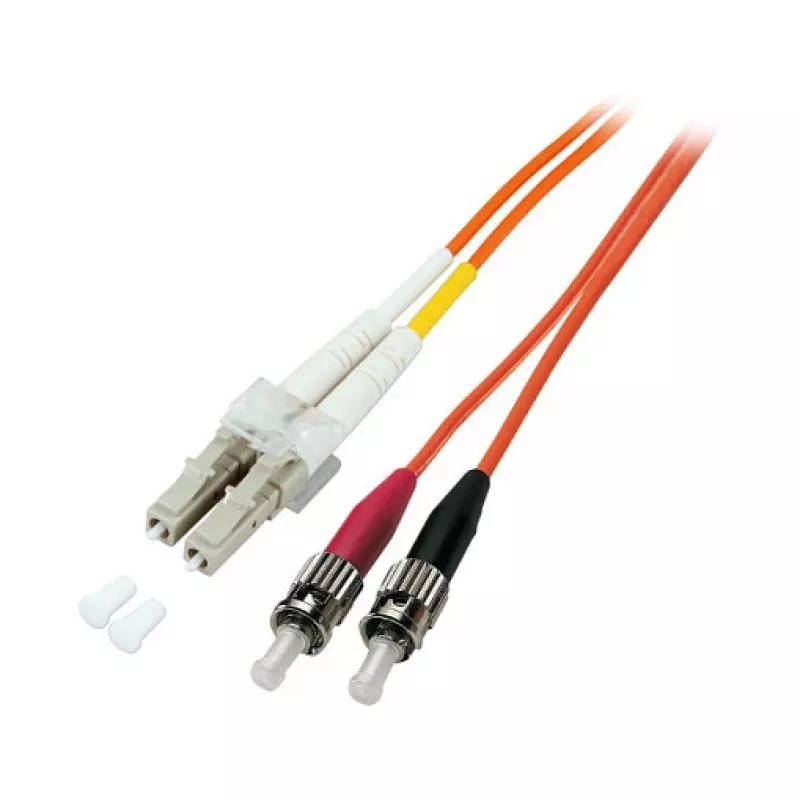

EFB-Elektronik cabo patch duplex LC-ST OM1 0,5m LSZH 2mm laranja

The EFB-Elektronik Duplex Jumper LC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 grade, 62.5/125 µm core/cladding, and duplex LC to ST connectors, this cable ensures low insertion loss and high return loss for demanding applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the orange color and 2.0 mm diameter make it easy to identify and manage.

Advantages

This patch cable offers excellent performance and durability. The duplex design allows for bidirectional communication, and the LC to ST connector combination is ideal for connecting network equipment with different interface types. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it suitable for use in data centers, offices, and public areas. The 0.5-meter length is perfect for short-distance connections within racks or patch panels.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications infrastructure
• Fiber optic patch panels and switches

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Grade: OM1
• Core Diameter: 62.5 µm
• Cladding Diameter: 125 µm
• Connector A: LC Duplex
• Connector B: ST Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Cable Length: 0.5 m
• Number of Fibers: 2
• Insertion Loss: < 0.3 dB
• Return Loss: > 20 dB
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Standards: RoHS Compliant

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is ideal for short patch connections in structured cabling systems. Pair with EFB-Elektronik patch panels and adapters for a complete solution.
