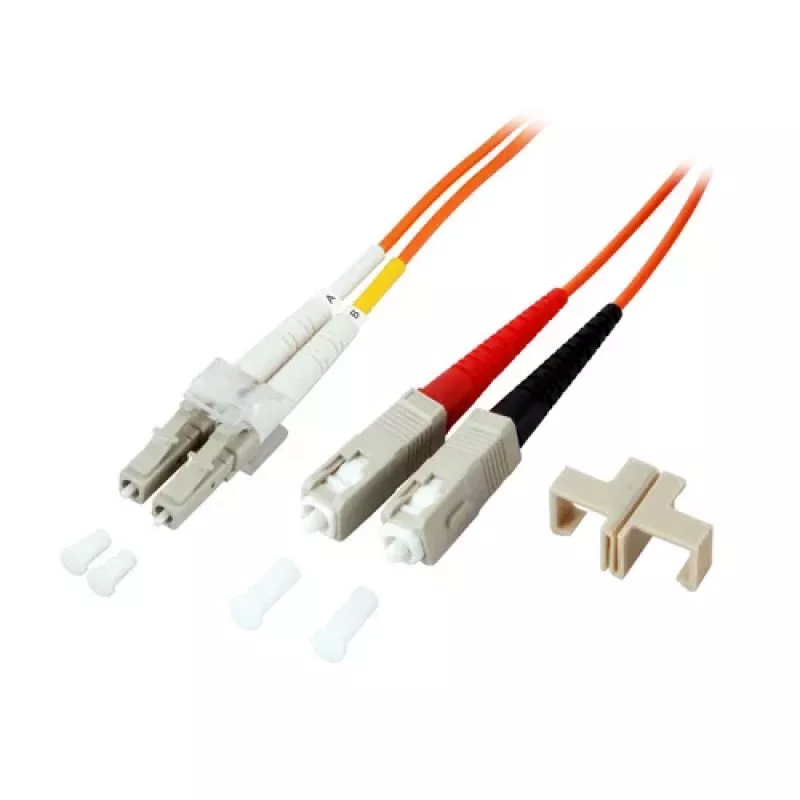

EFB-Elektronik Jumper Duplex LC-SC OM1 62.5/125µm 1m Laranja LSZH 2,0mm Cabo de Patch de Fibra Ótica

The EFB-Elektronik Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 performance, 62.5/125µm core/cladding, and LSZH jacket, this cable ensures safety and efficiency in data centers, telecom rooms, and enterprise networks.

Advantages

Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire, making it ideal for enclosed spaces. The duplex LC to SC connectors provide secure connections for duplex communication. Orange jacket ensures easy identification.

Suitable for

• Data center cabling
• Telecommunications infrastructure
• Enterprise network patching
• Fiber-to-the-desk applications

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Multimode
• Fiber standard: OM1
• Core diameter: 62.5 µm
• Cladding diameter: 125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Length: 1 m
• Jacket material: LSZH
• Jacket color: Orange
• Cable diameter: 2.0 mm
• Polishing type: PC
• Insertion loss: < 0.3 dB typical
• Return loss: > 20 dB typical
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Bandwidth at 850 nm: 200 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC and SC interfaces. Suitable for 1 Gbps and 10 Gbps applications over short distances.
