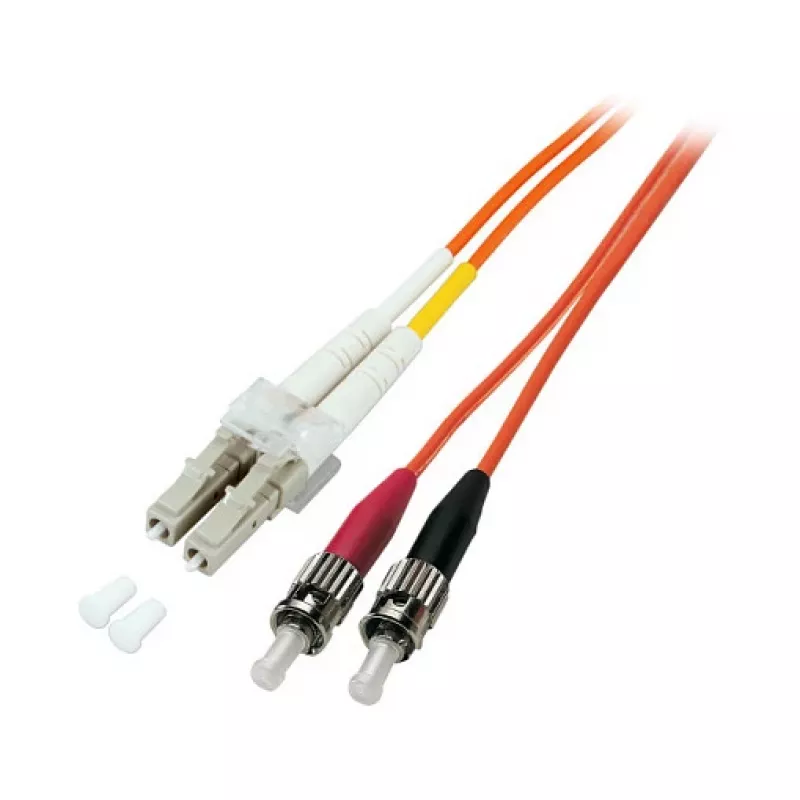

EFB-Elektronik Jumper Duplex LC-ST OM1 62.5/125µm LSZH Laranja 2.0mm 2m

The EFB-Elektronik Duplex Jumper LC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 fiber standard and 62.5/125µm core/cladding, this cable ensures optimal performance for short to medium distance applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the vibrant orange color aids easy identification.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>20 dB), ensuring minimal signal degradation. The duplex configuration with LC to ST connectors allows seamless integration with various network devices. The 2.0mm cable diameter provides flexibility while maintaining durability. RoHS and CE compliance guarantee environmental and safety standards.

Suitable for

• Data center and server room connections
• Telecommunications and LAN networks
• Fiber optic patch panels and switches
• Short to medium distance multimode fiber links

Key specifications

• Fiber Type: Multimode OM1
• Core/Cladding: 62.5/125 µm
• Connectors: LC Duplex to ST Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Length: 2 m
• Insertion Loss: <0.3 dB typical
• Return Loss: >20 dB typical
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation at 850nm: ≤3.5 dB/km
• Attenuation at 1300nm: ≤1.5 dB/km
• Minimum Bend Radius: 10x cable diameter (dynamic), 5x (static)
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for use with OM1-compatible equipment. Store in a clean, dry environment within the specified temperature range.
