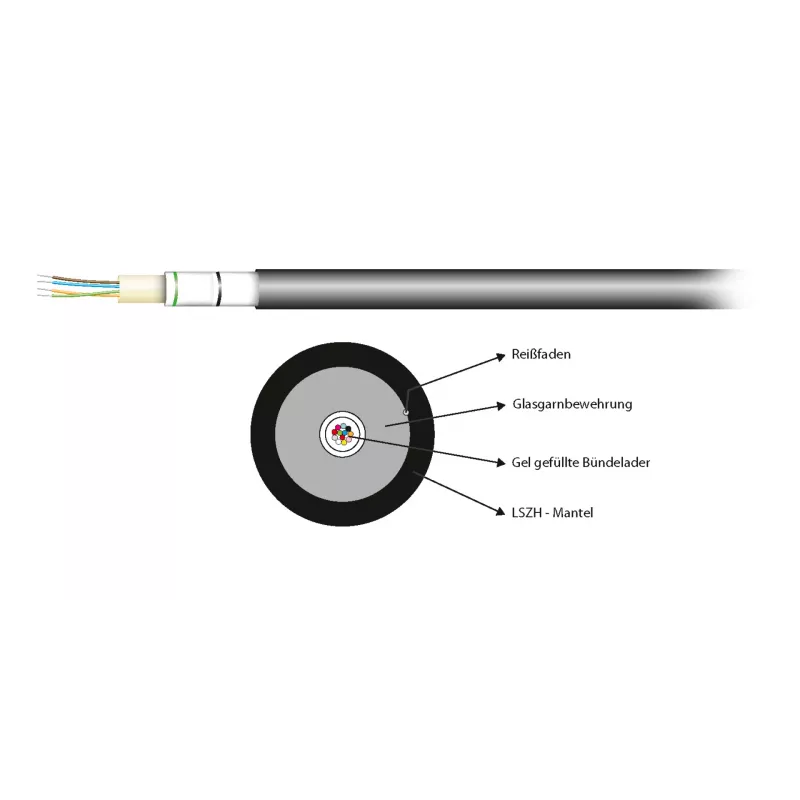

EFB Elektronik INFRALAN® U-DQ(ZN)BH 12G 50/125µm OM4 LSZH preto CPR Dca Cabo de fibra ótica

The EFB Elektronik INFRALAN® U-DQ(ZN)BH 12G 50/125µm OM4 LSZH Black CPR Dca is a high-performance fiber optic cable designed for demanding indoor and outdoor applications. With 12 multimode fibers and OM4 grade, it supports high-speed data transmission over long distances, making it ideal for data centers, campus networks, and enterprise backbones.

Advantages

This cable offers low attenuation and high bandwidth, ensuring reliable signal integrity. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire. Its CPR Dca fire classification complies with European construction standards, making it suitable for installation in buildings.

Suitable for

• Data center cabling
• Local area network (LAN) backbones
• Fiber-to-the-desk (FTTD) installations
• Indoor/outdoor campus networks
• High-speed enterprise connectivity

Key specifications

• Fiber Type: Multimode OM4
• Fiber Count: 12
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Black
• CPR Fire Class: Dca-s2, d2, a1
• Max. Attenuation @ 850nm: 2.3 dB/km
• Max. Attenuation @ 1300nm: 0.6 dB/km
• Effective Modal Bandwidth (EMB) @ 850nm: 4700 MHz·km
• Overfilled Launch (OFL) Bandwidth @ 1300nm: 500 MHz·km
• Nominal Outer Diameter: ~7.2 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +70°C
• Standards: IEC 60794-1, EN 50173-1, ISO/IEC 11801

Recommendations

For optimal performance, use with OM4-compatible connectors and ensure proper installation by certified professionals. This cable is ideal for 10/40/100 Gigabit Ethernet applications.
